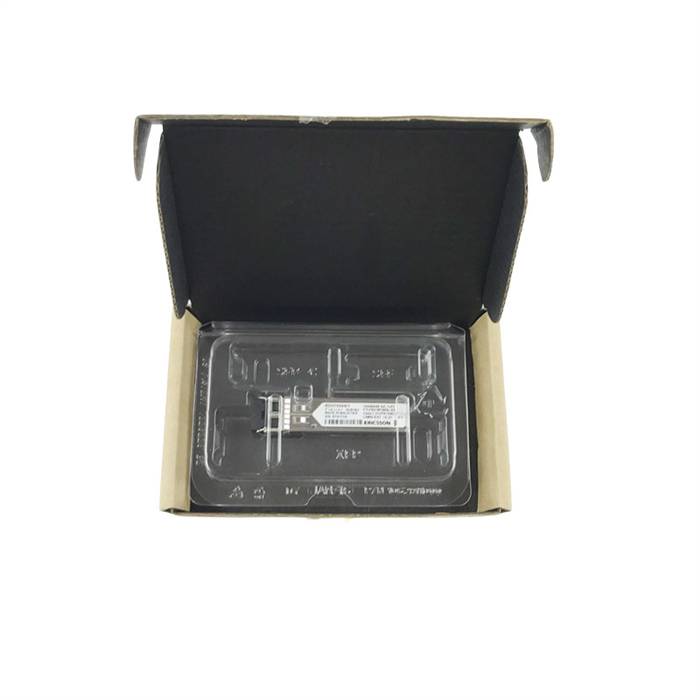

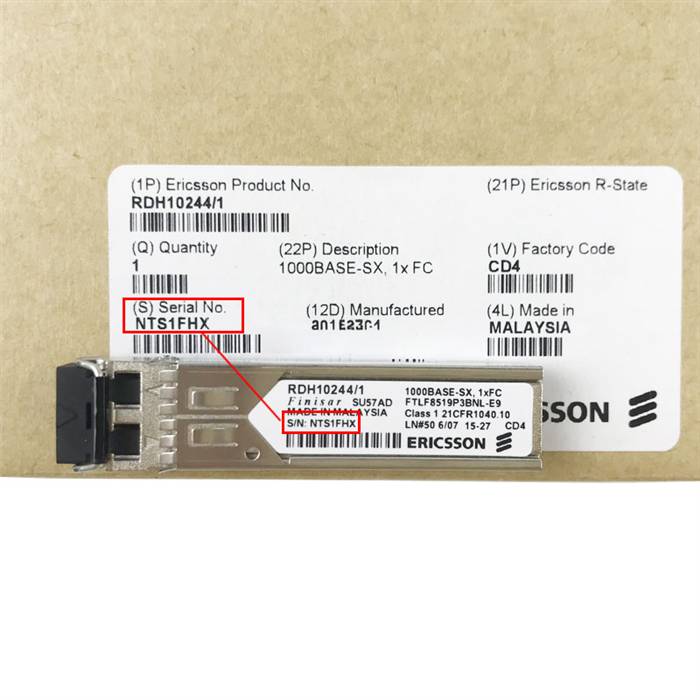

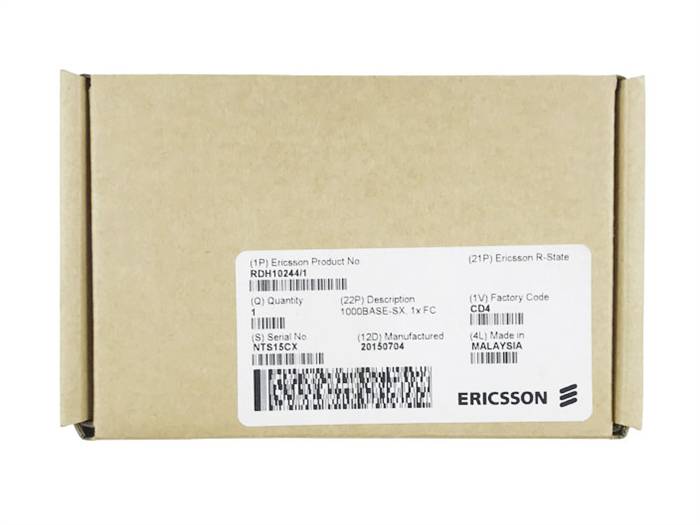

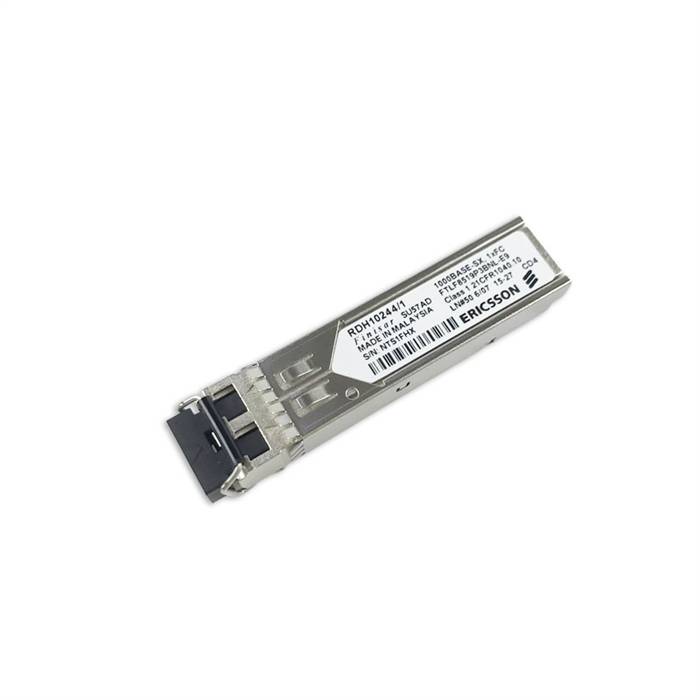

Ericsson RDH10244/1 1000Base-SX 1x FC FTLF8519P3BNL-E9 SFP Transceiver Module
RDH10244-1 - Genuine Ericsson RDH10244/1

Alternative Views:
Our Price: $32.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: RDH10244-1
Qty:

Description

The Ericsson RDH10244/1 Small Form Factor Pluggable (SFP) optical transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Specifications
  • Distance: 500 m
  • Data Rate (max): 2.125 Gb/s
  • Protocol: Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant Wireless CPRI Compliant
  • Low End Case Temperature (°C): -20
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 850nm Band
