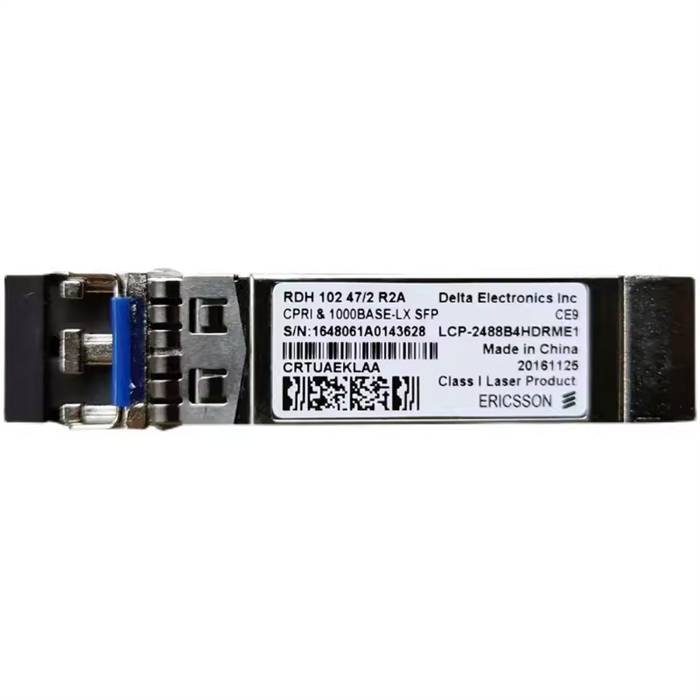

Ericsson RDH10247/2 R2A RTXM192-406-C24 1000Base-LX SFP Transceiver (SMF, 1310nm, 10km, LC, DOM)

This Ericsson RDH 102 47/2 (RDH10247/2, RTXM192-406-C25) transceiver uses a high-quality FP Laser transmitter operating at 1310 nm nominal wavelength and a 1310 nm PIN Photodiode receiver. This module supports DDM/DOM optical diagnostics and provides diagnostic data about the current operating conditions. This module has a Double LC connector and module is designed for operation in standard temperature networking environments ranging from 0°-70°C. The transceiver chipset supports data rates ranging from 1.063-1.25Gbps and such applications as Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps).

Specifications

• Brand: Ericsson
• Type: CPRI & 1000BASE-LX SFP
• Alternate naming: RTXM192-406-C25
• Tx/Rx Wavelength: 1310 nm. / 1310 nm.
• Media Type: Single-Mode Fiber (SMF)
• Optical Budget: 13 dB
• Max. Distance: 10 km
• Data Rate: 1.063-1.25Gbps
• Temperature: Standard 0°-70°C
