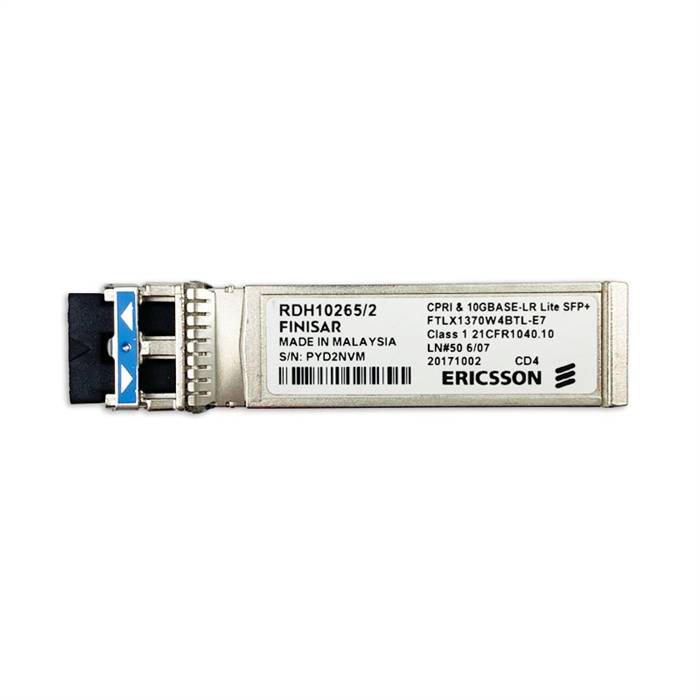

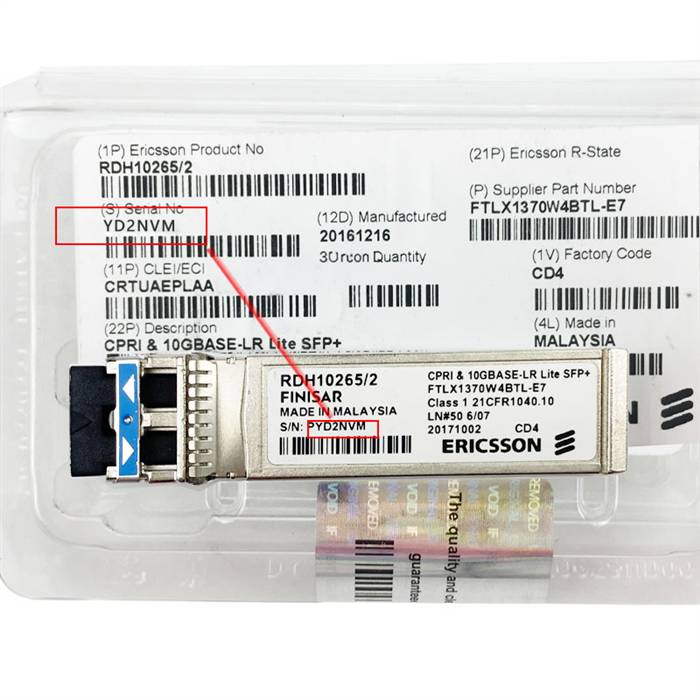

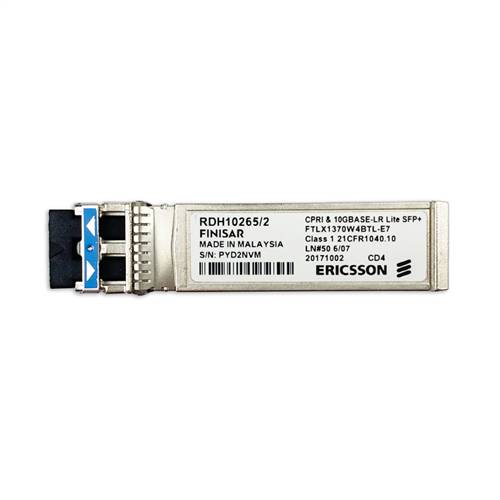

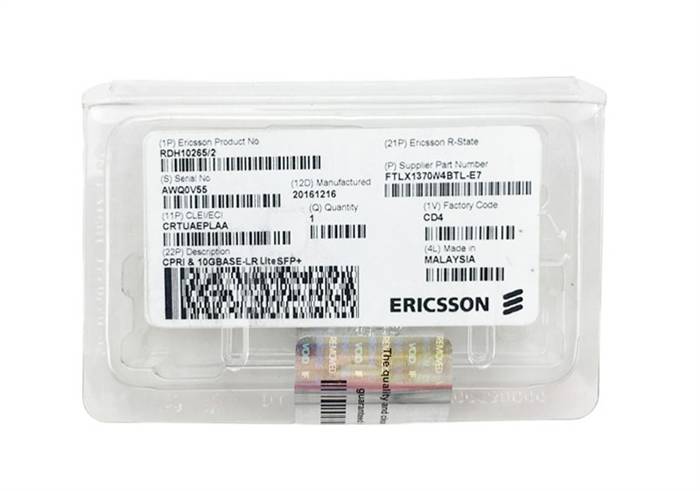

Ericsson RDH10265/2 CPRI & 10GBASE-LR Lite SFP+ Module FTLX1370W4BTL-E7
RDH10265-2 - Genuine Ericsson RDH10265/2

Alternative Views:
Our Price: $60.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: RDH10265-2
Qty:

Description

The Ericsson RDH10265/2 SFP+ transceivers are designed for use in Wireless basestation links up to 1.4 km at up to 10.3125 Gb/s data rates for CPRI, OBSAI, LTE, or other Wireless applications. They are compliant with SFF-8431, SFF-8432, SFF-8472 Rev 10.2, CPRI Rev 5.0 and OBSAI Rev V4.2. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Specifications
  • Distance: 1.4 km
  • Data Rate (max): 10 Gb/s
  • Protocol: Wireless CPRI Compliant
  • Low End Case Temperature (°C): -40
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: Fabry-Perot Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1310nm Band
