RDH10270-2 - Genuine Ericsson RDH10270/2

Home > OEM > Ericsson >

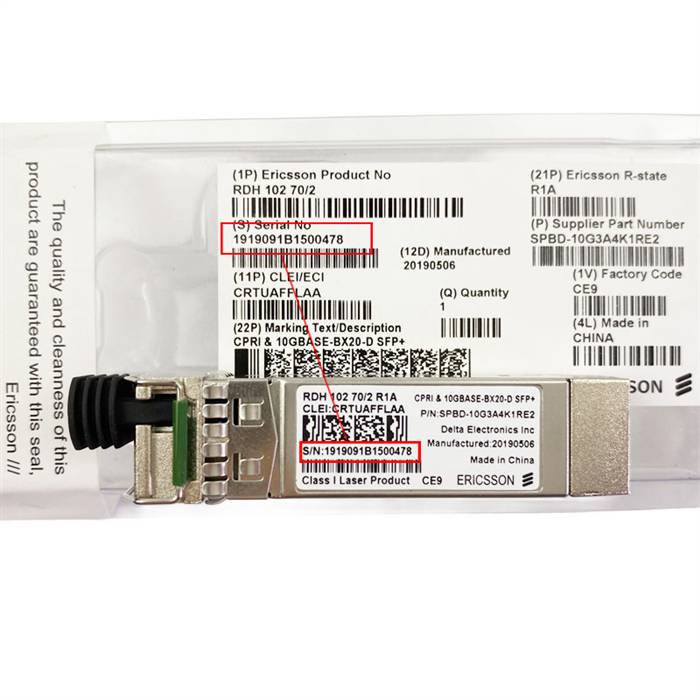

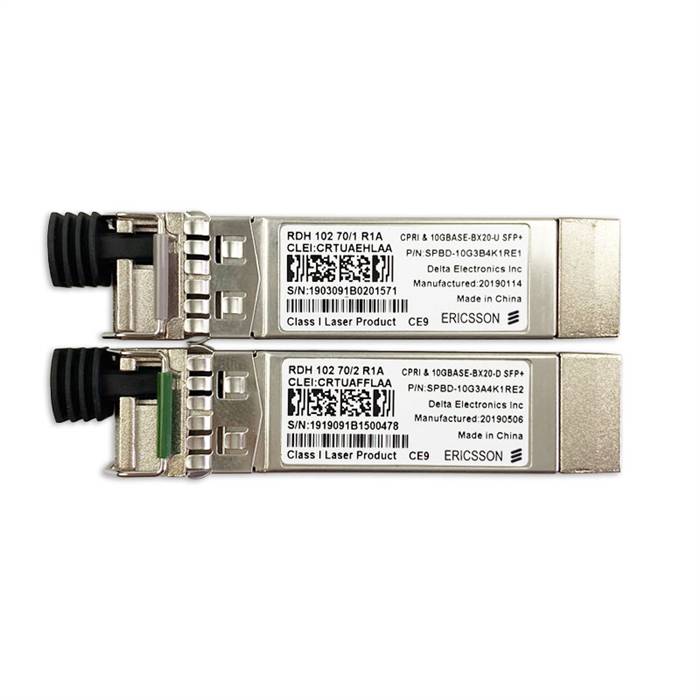

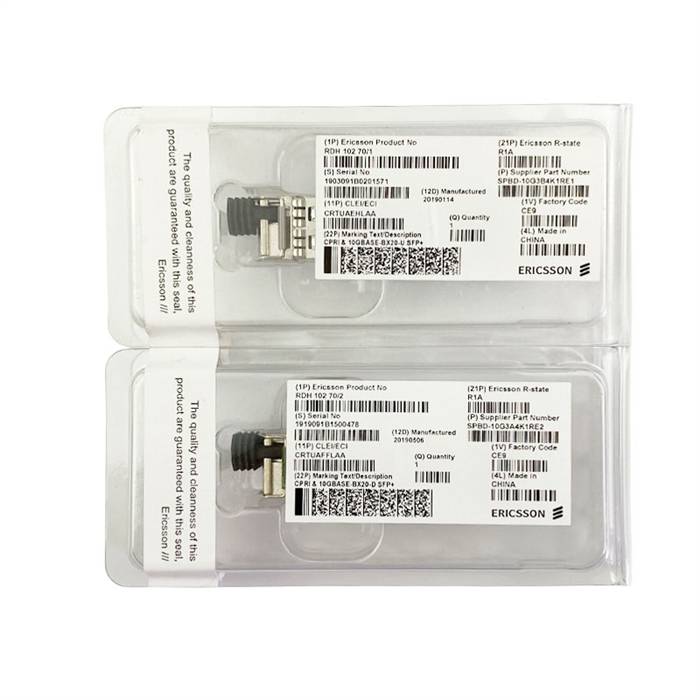

Ericsson RDH10270/2 CPRI & 10GBASE-BX20-D SFP+ BIDI Transceiver Module SPBD-10G3A4K1RE2

RDH10270-2 - Genuine Ericsson RDH10270/2

Alternative Views:

Our Price: $80.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: RDH10270-2

Qty:

Description

The Ericsson RDH10270/2 SFP+ transceiver supports up to 20km over OS2 SMF via an LC simplex connector. This transceiver is compliant with SFF-8431 and IEEE 802.3ae standard. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet etc.

Specifications

Manufacturer: Ericsson
Part Number: RDH10270/2
MPN: SPBD-10G3A4K1RE2
Form Factor: SFP+
Max Data Rate: 10Gbps
Wavelength: 1330nm-TX/1270nm-RX
Max Cable Distance: 20km
Connector: LC simplex
Optical Components: DFB BiDi
Media: SMF
DOM Support: Yes
TX Power: -6~3dBm
Receiver Sensitivity: <-14.4dBm
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Protocols: SFP+ MSA Compliant, CPRI, eCPRI
