Ericsson RDH10272/4 100G 4WDM-10 I-Temp QSFP28 10km Module FTLC1152WGPLC-E7

RDH10272-4 - Genuine Ericsson RDH10272/4

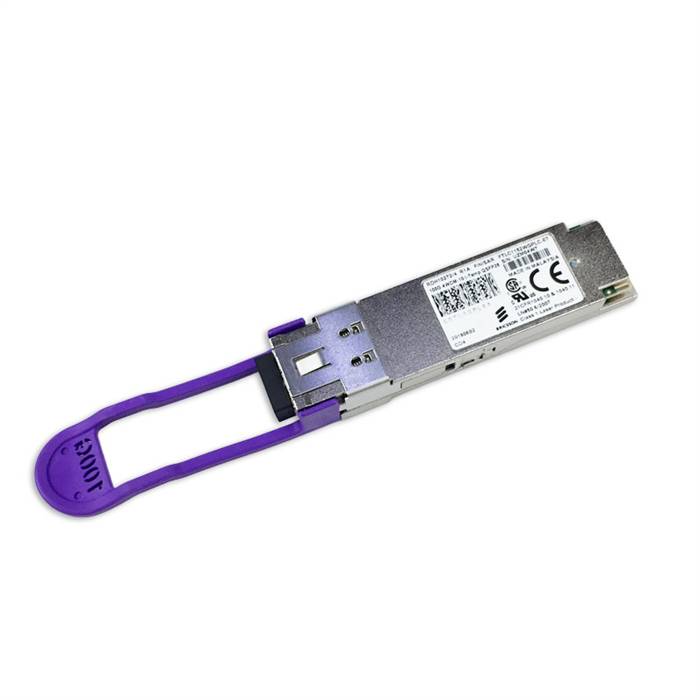

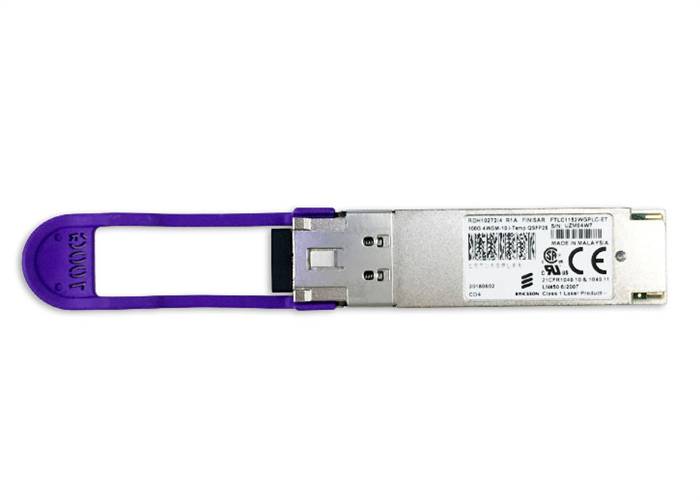

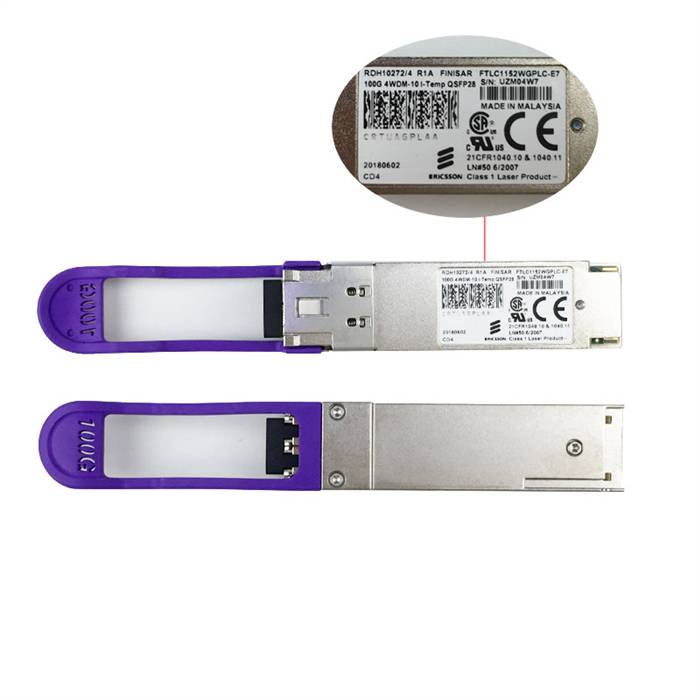

Alternative Views:

Our Price: $1,140.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: RDH10272-4

Qty:

Description

The Ericsson RDH10272/4 QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet/eCPRI or CPRI links on up to 10 km of single mode fiber. Designed for wireless applications with an extended temperature range (-20°C to +85°C), the transceivers are compliant with the QSFP28 MSA, CWDM4 MSA, 4WDM MSA, and portions of IEEE P802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Notes AN-2153 and AN-2154. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Specifications

Distance: 10 km
Data Rate (max): 103.1 Gb/s
Protocol: 100G Ethernet Compliant Wireless CPRI Compliant
Low End Case Temperature (°C): -20
High End Case Temperature (°C): 85
Diagnostics: Digital
Transmitter: 4x CWDM DFB Laser
Receiver: PIN
Voltage Supply: 3.3
Connector: LC
Wavelength: 1310nm Band
