RDH10281-2 - Genuine Ericsson RDH10281/2

Home > OEM > Ericsson >

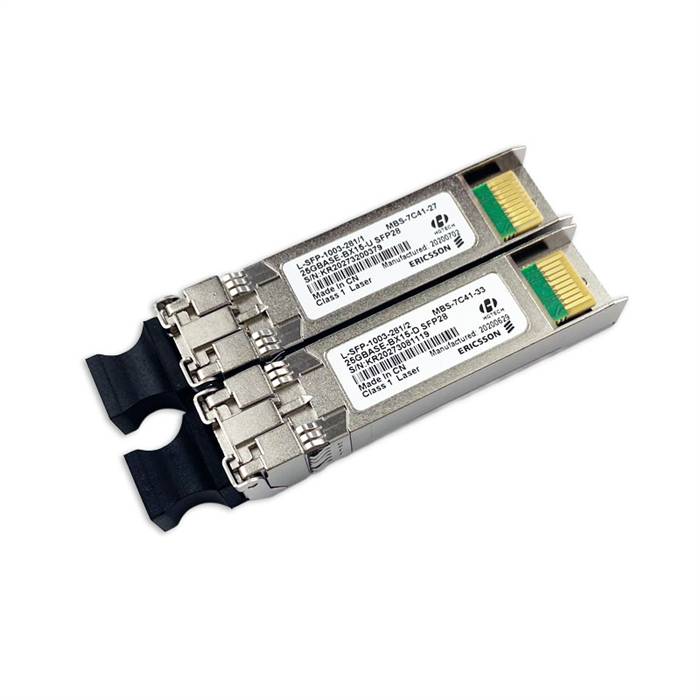

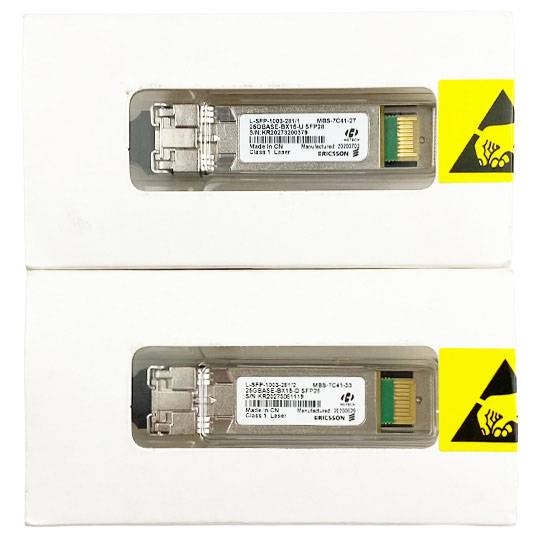

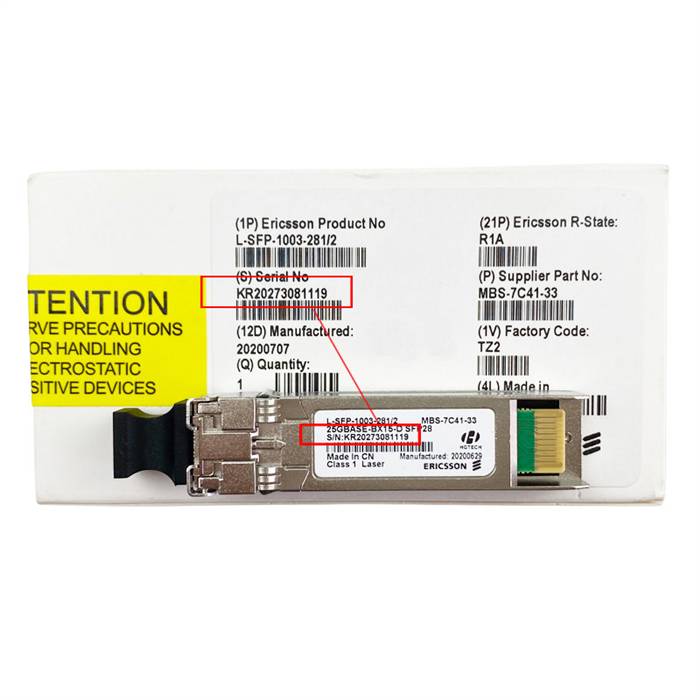

Ericsson RDH10281/2 25GBASE-BX15-D SFP28 BIDI Transceiver Module MBS-7C41-33

RDH10281-2 - Genuine Ericsson RDH10281/2

Alternative Views:

Our Price: $195.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: RDH10281-2

Qty:

Description

The Ericsson RDH10281/2 25GBASE-BX15-D SFP28 BIDI Transceiver Module provides up to 15km of 25GBase-BX throughput over single-mode fiber (SMF) using 1330nm-TX/1270nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 25GBASE Ethernet connectivity options for 25G Ethernet, telecom, data center and 5G Network Fronthaul. It is fully compliant with SFF-8472, SFF-8402, SFF-8432, SFF-8431, MSA and eCPRI standards.

Specifications

Form Factor: SFP28
Max Data Rate: 25.78Gbps
Wavelength: 1330nm-TX/1270nm-RX
Max Cable Distance: 15km
Connector: LC simplex
Media: SMF
Transmitter Type: DFB BiDi
Receiver Type: PIN
DDM/DOM: Supported
Industrial Temperature Range: -40 to 85°C (-40 to 185°F)
Packaging Technology: SFP28 BIDI
EMC (Electromagnetic Compatibility): Supported
Protocols: SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSRP
Application: 25GBASE-LR, CPRI option 10 / eCPRI
