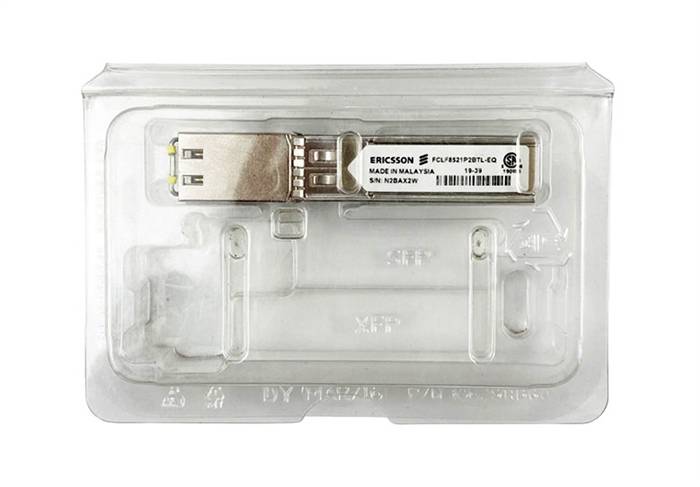

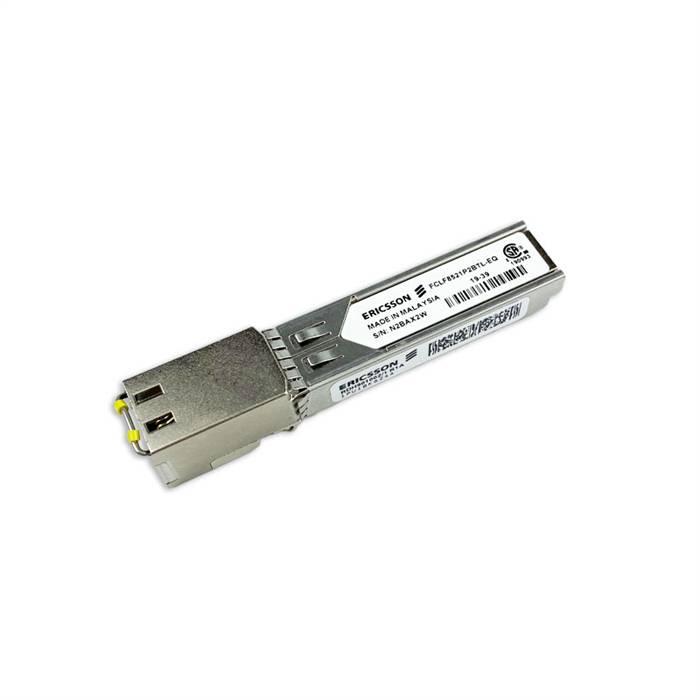

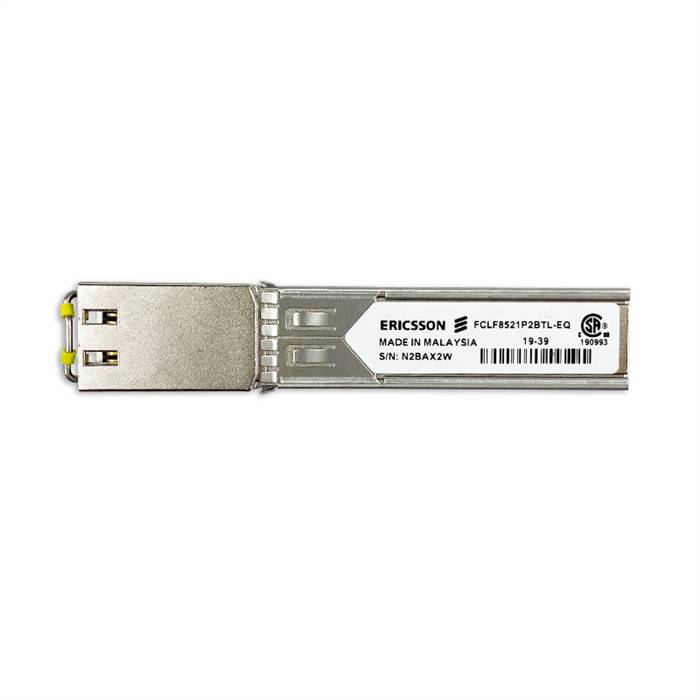

Ericsson RDH901002/1 1000BASE-T Copper SFP Transceiver Module FCLF8521P2BTL-EQ
RDH901002-1 - Genuine Ericsson RDH901002/1

Alternative Views:
Our Price: $45.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: RDH901002-1
Qty:

Description

The Ericsson RDH901002/1 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. The optical transceiver is RoHS compliant as described in Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

Specifications
  • Manufacturer: Ericsson
  • Part Number: RDH901002/1
  • MPN: FCLF8521P2BTL-EQ
  • Form Factor: SFP
  • Distance: 100 m
  • Data Rate (max): 1.25 Gb/s
  • Protocol: 1000Base-T Compliant
  • Low End Case Temperature (°C): -40
  • High End Case Temperature (°C): 85
  • Diagnostics: N/A
  • Transmitter: N/A
  • Receiver: N/A
  • Voltage Supply: 3.3
  • Connector: RJ-45
