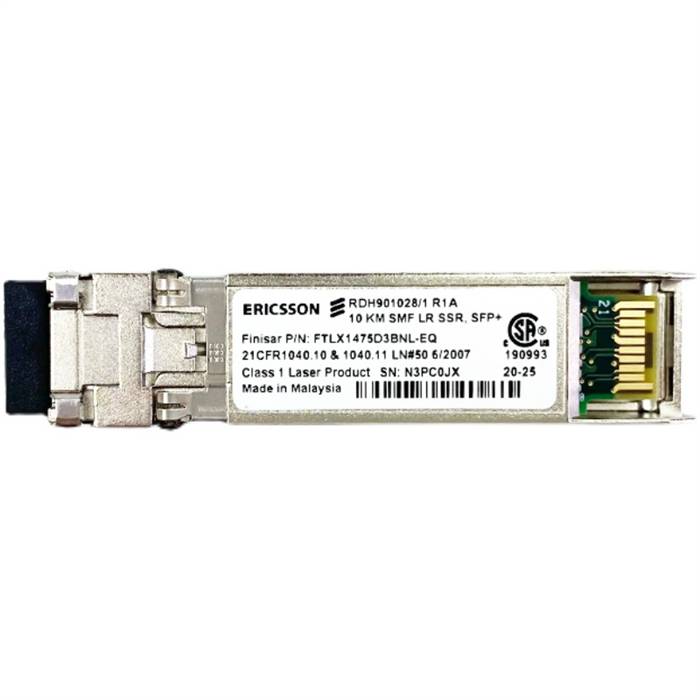

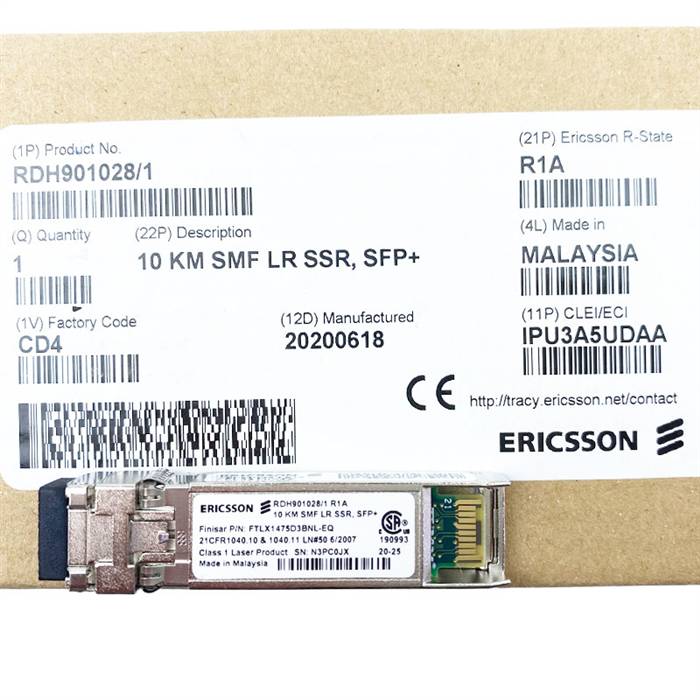

Ericsson RDH901028/1 10KM SMF LR SSR SFP+ Transceiver Module FTLX1475D3BNL-EQ
RDH901028-1 - Genuine Ericsson RDH901028/1

Alternative Views:
Our Price: $130.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: RDH901028-1
Qty:

Description

The Ericsson RDH901028/1 Extended Temperature 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The RDH901028/1 is a “limiting module”, i.e., it employs a limiting receiver. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Specifications
  • Distance: 10 km
  • Data Rate (max): 10.5 Gb/s
  • Protocol: 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant
  • Low End Case Temperature (°C): -5
  • High End Case Temperature (°C): 85
  • Diagnostics: Digital
  • Transmitter: DFB Laser
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: LC
  • Wavelength: 1310nm Band
