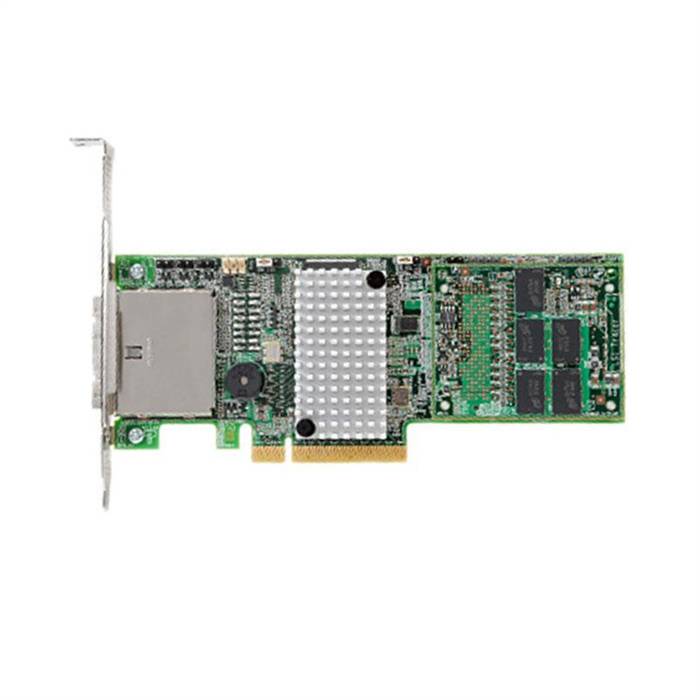

Intel RS25NB008 6G SAS RAID Controller with 8 external ports and dual core ROC

Specifications

• Product Collection: Intel RAID Controllers
• Part Number: RS25NB008
• Description: 6G SAS RAID Controller with 8 external ports and dual core ROC. No cables included. Optional Battery Backup Unit AXXRSBBU9.
• Board Form Factor: Low Profile MD2 Card
• Data Transfer Rate: 6 Gb/s
• Supported Devices: SAS/SATA
• Supported Operating Systems: Windows, Linux, Solaris, VMware
• Compatible Cache Backup Options: AXXRSBBU9
• RAID Level Supported: 0, 1, 10, 5, 50, 6, 60
• JBOD Mode: No
• # of Ports Internal: 0
• # of Ports External: 8
• # of Devices Supported: 128
• Cache Memory: 1GB
• PCIe Host Interface: PCIe x8 Gen2
• IO Processor Model: LSI2208
• Keying: PCIe x8 Connector
• Connector Orientation: External 8088
• Extended Warranty Available for Purchase (Select Countries): Yes
• Additional Extended Warranty Details: Intel RAID Extended Warranty
• Additional Features: Support for Premium Feature Options
• Included Items: Raid Controller, Quick Start User Guide, 1 standard & 1 Low Profile bracket. No SAS Cables are included.

Compatible Products

• Intel Server System R1000SPO Family
• Intel Server System R1000WT Family
• Intel Server System R2000WT Family
• Intel Server System P4000SP Family
• Intel Compute Module HNS2600TP Family
• Intel Compute Module HNS2600KP Family
• Intel Server Board S1200SP Family
• Intel Server Board S2600CW Family
• Intel Server Board S2600KP Family
• Intel Server Board S2600TP Family
• Intel Server Board S2600WT Family
• Intel RAID Backup (Batteries/Flash)
• Intel RAID Premium Features
• Intel Server Component Extended Warranty
• Intel Server Board S1200BT Family
• Intel Server Board S1200RP Family
• Intel Server Board S1400FP Family
• Intel Server Board S1400SP Family
• Intel Server Board S1600JP Family
• Intel Server Board S3420GP Family
• Intel Server Board S2400BB Family
• Intel Server Board S2400EP Family
• Intel Server Board S2400GP Family
• Intel Server Board S2600CO Family
• Intel Server Board S2600CP Family
• Intel Server Board S2600GL Family
• Intel Server Board S2600GZ Family
• Intel Server Board S2600IP Family
• Intel Server Board S2600JF Family
• Intel Server Board S2600WP Family
• Intel Workstation Board W2600CR Family
• Intel Server Board S5500HC Family
• Intel Server Board S5000UR Family
• Intel Server Board S5000WB Family
• Intel Server Board S5500HCT Family
• Intel Server Board S5500HCV Family
• Intel Workstation Board S5520SC Family
• Intel Compute Module HNS2600JF Family
• Intel Compute Module HNS2600WP Family
• Intel Server System R1000BB Family
• Intel Server System R1000EP Family
• Intel Server System R1000GL Family
• Intel Server System R1000GZ Family
• Intel Server System R1000JP Family
• Intel Server System R1000RP Family
• Intel Server System R1000SP Family
• Intel Server System R1304BT Family
• Intel Server System H2000JF Family
• Intel Server System H2000WP Family
• Intel Storage System JBOD2000 Family
• Intel Server System R2000BB Family
• Intel Server System R2000GL Family
• Intel Server System R2000GZ Family
• Intel Server System R2000IP Family
• Intel Server System R2000LH2 Family
• Intel Server System R2000LT2 Family
• Intel Server System P4000CP Family
• Intel Server System P4000IP Family
• Intel Server System P4000RP Family
• Intel Server System P4304BT Family
• Intel Workstation System P4300CR Family
