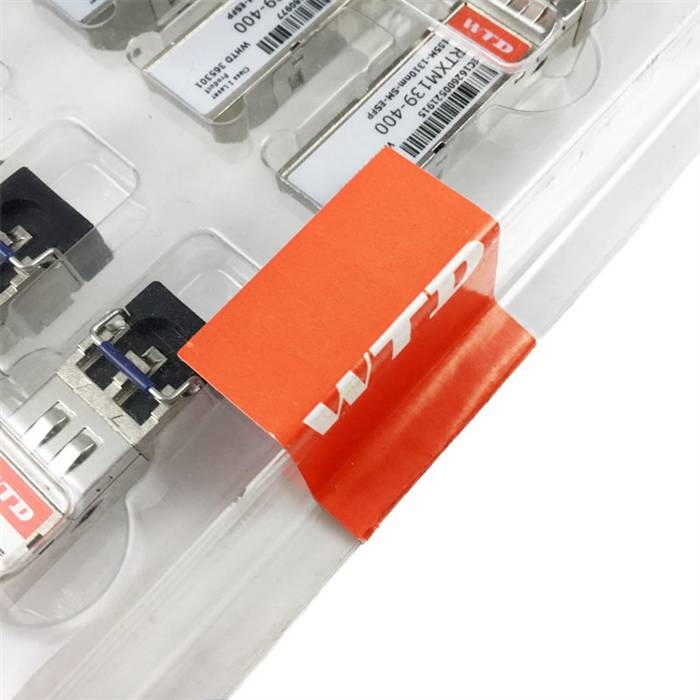

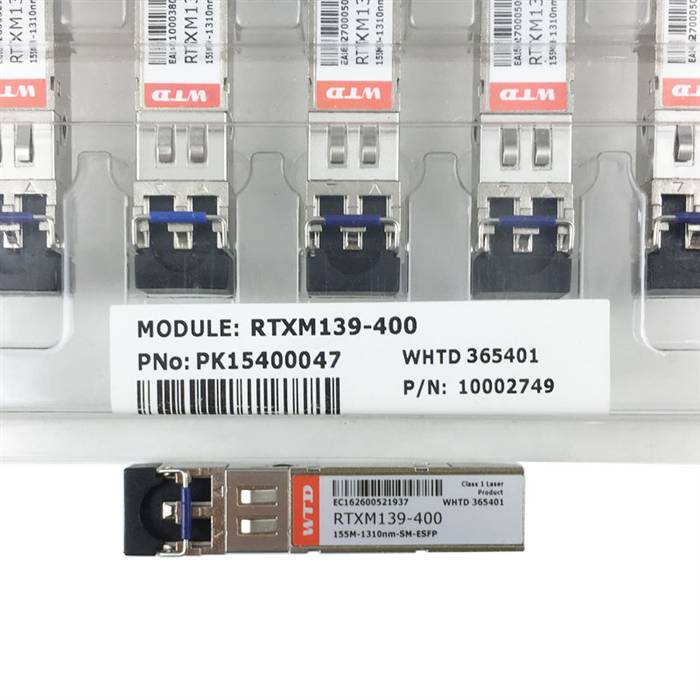

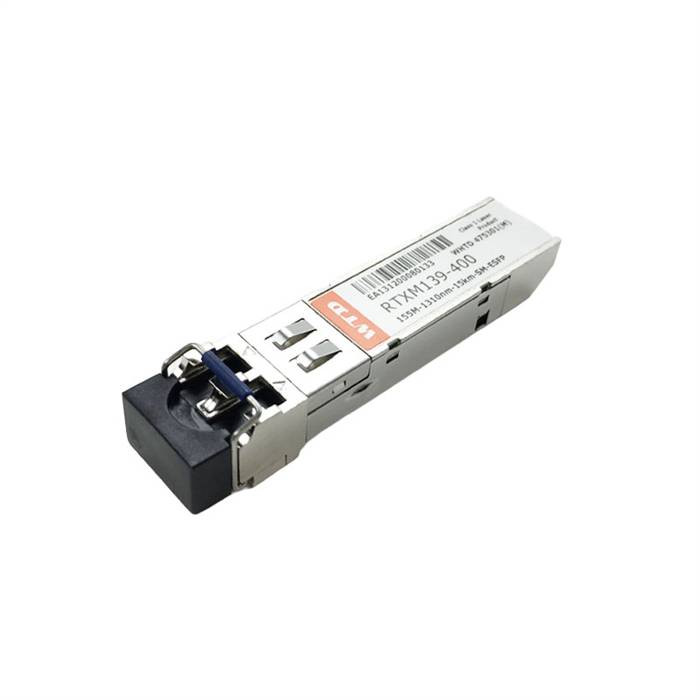

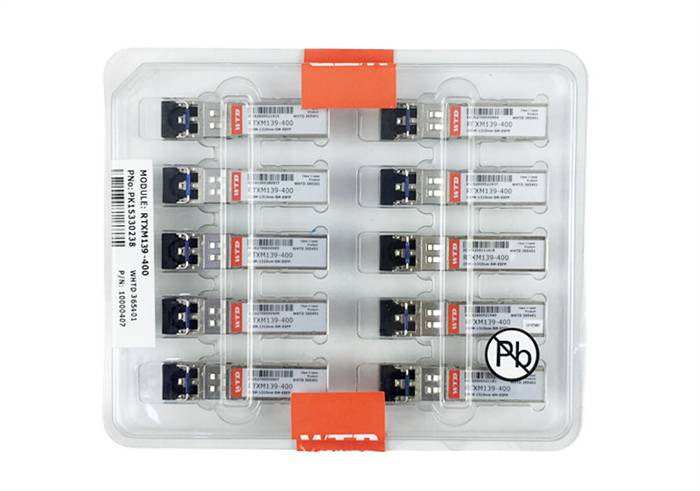

WTD 155M 1310nm SM 15km ESFP Transceiver Module
WTD RTXM139-400

Alternative Views:
Our Price: $6.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: RTXM139-400
Qty:

Description

Features
  • Duplex LC receptacle optical interface
  • Single +3.3V power supply
  • Hot-pluggable
  • AC coupling of PECL signals
  • Serial ID module on MOD(0-2)
  • DDM Function implemented
  • External Calibration
  • International Class 1 laser safety certified
  • Transmitter disable input
  • Receiver Loss of Signal Output
  • Operating temperature range: -10°C to 70°C
  • Compliant with RoHS & WEEE

Applications
  • SDH/ STM-1, SONET/OC-3
  • Metropolitan area network
  • Fast Ethernet
  • Other optic link

Standards
  • Compliant with SFP MSA (INF-8074i)
  • Compliant with ITU-T G.957 STM-1
  • Compliant with SFF-8472 v9.3
  • Compliant with RoHS&WEE

Specifications
  • Manufacturer: WTD Accelink
  • Part Number: RTXM139-400
  • Form Factor: SFP
  • Data Rate: 155M
  • Transmitter: 1310nm FP
  • Receiver: PIN
  • Wavelength: 1310nm
  • Reach: 15km
  • Operating Temperature: -10°C to 70°C
