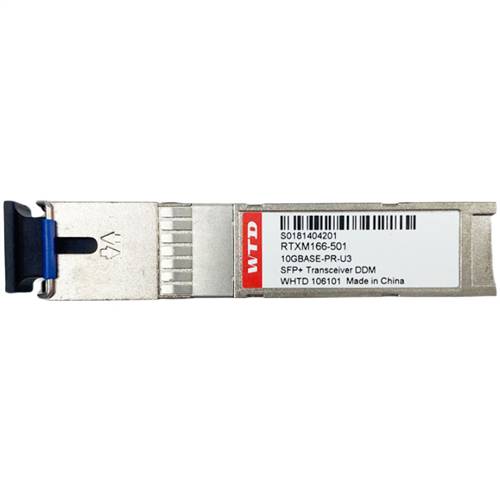

WTD RTXM166-501

Home > OEM > WTD >

WTD XGS-PON ONU 10GBASE-PR-U3 SFP+ Optical Transceiver

Alternative Views:

Our Price: $118.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: RTXM166-501

Qty:

Description

The WTD RTXM166-501 XGS-PON ONU Transceiver is designed for 10G XGS-PON transmission. The module incorporates 10Gb/s 1270nm burst-mode transmitter and 10Gb/s 1577nm continuous-mode receiver. An integrated WDM coupler can separate 1577nm input light and 1270nm output light. The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.

Features

Integrated Single fiber bi-directional optical subassembly
Symmetric 9.953Gb/s upstream and downstream bit rate
SFP+ metallic package?SC connector
+3.3V single power supply
Low power consumption
0 to 70°C operating case temperature
Class 1 Laser eye safety
Excellent EMI and EMC characteristics
Compliant with RoHS&WEEE

Applications

Symmetric 10-Gigabit capable passive optical network (XGS-PON) system

Standards

SFF 8432
SFF 8472
ITU-T G.9807.1

Specifications

Part Number: RTXM166-501
Form Factor: SFP+
Data Rate: 9.953G upstream, 9.953 downstream
Laser: 1270nm DFB-LD
Optical Power: +4 ~ +9dBm
Detector: 1577nm APD
Sensitivity: -28dBm
Reach: 20km
DDM: Supported
Operating Temperature: 0 ~ 70°C
