WTD RTXM226-480

Home > OEM > WTD >

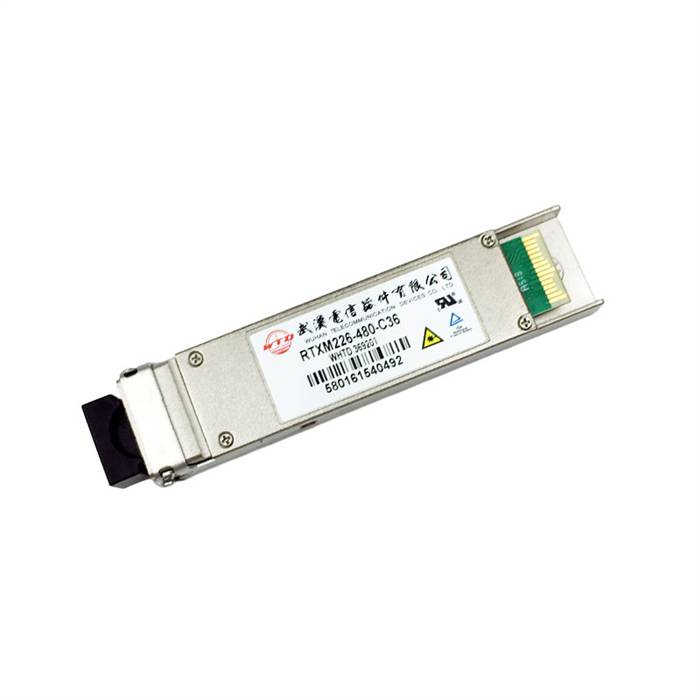

WTD 10Gbps 1550nm 80km XFP Optical Transceiver RTXM226-480-C36

Alternative Views:

Our Price: $150.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: RTXM226-480

Qty:

Description

The RTXM226-480 is a hot pluggable 10Gbps small-form-factor transceiver module integrated with the high performance cooled 1550nm EML transmitter and high sensitivity APD receiver.It is compliant to INF-8077i XFP Multi-source Agreement(MSA). The module is a multirate optical transceiver,intended to support Telecom and Datacom applications.

Features

Data rate from 9.95 Gbps to 11.3Gbps
1550nm EML TOSA and APDROSA
Industry-standard,protocol-independent, XFI interface
Transmission distance up to 80km
LC duplex receptacle package
Hot pluggable
Built in digital diagnostic functions
Operating case temperature range: -5°C~70°C
RoHS compliant

Applications

SONET OC-192&SDH STM 64
10G Base-ZR
10Gigabit Fiber Channel

Standards

XFP MSA (INF-8077i)
IEEE802.3ae
ITU-T G.691

Specifications

Part Number: RTXM226-480
Form Factor: XFP
Data Rate: 10G
Laser: 1550nm EML
Optical Power: 0 ~ 4 dBm
Detector: APD
Sensitivity: <-24dBm
Reach: 80km
DDM: Supported
Operating Temperature: -5 ~ 70°C
