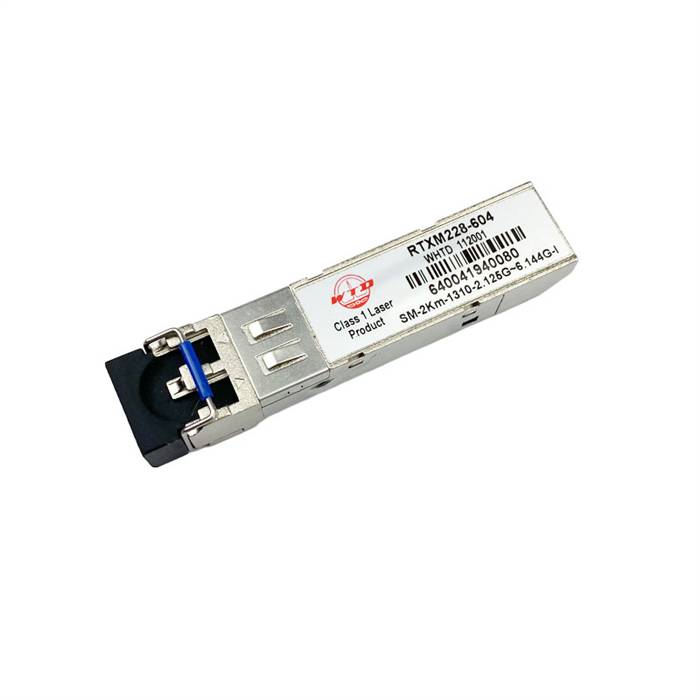

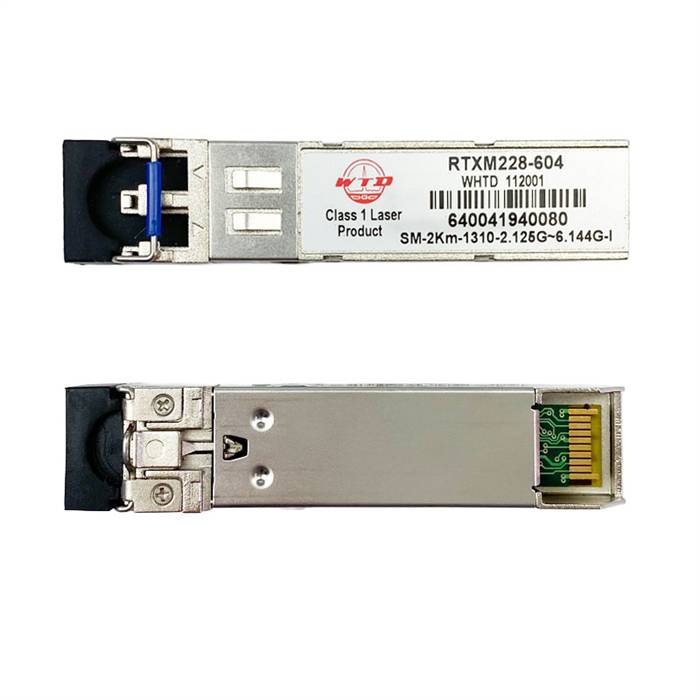

WTD 2.125G to 6.144G 1310nm SM 2km SFP+ Transceiver Module

Alternative Views:

Our Price: $10.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: RTXM228-604

Qty:

Description

The RTXM228-604 6Gigabit 1310nm FP Transceiver is designed to transmit and receive serial optical data links up from 2.1 Gb/s to 6.25 Gb/s data rate over singlemode fiber. The Transceiver is compliant with 2/4GFC,CPRI and applicable portions of SFF-8431. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Features

Link lengths at 6Gbps 2Km with FP 1310nm
LC duplex connector
Low power consumption <1.2W
-40°C to 85°C operating wide temperature range
Single +3.3V±5% power supply
Digital Monitoring SFF-8472 compliant

Applications

Wireless and cellular base station system interconnect:

OBSAI rates 6.144Gb/s, 3.072 Gb/s
CPRI rates 4.9152 Gb/s,2.4576 Gb/s

2/4GFC Data Storage Channel

Standards

SFF-8431 Rev 3
SFF-8432 Rev 5
SFF-8472 Rev 10

Specifications

Manufacturer: WTD Accelink
Part Number: RTXM228-604
MPN: WHTD 112001
Product Name: SM-2km-1310-2.125G-6.144G-I
Form Factor: SFP+
Data Rate: 2.125 ~ 6.144Gb/s
Transmitter: FP
Receiver: PIN
Wavelength: 1310nm
Reach: 2km
Operating Temperature: -40°C to 85°C
Application: OBSAI, CPRI, 2/4GFC
