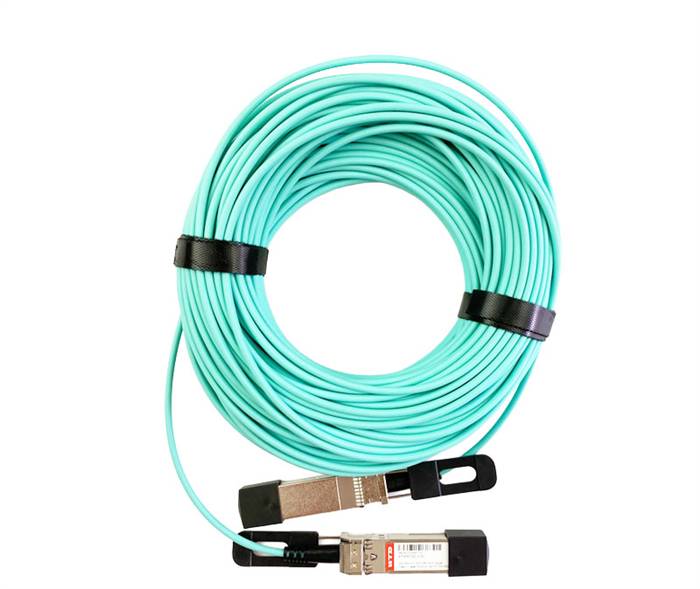

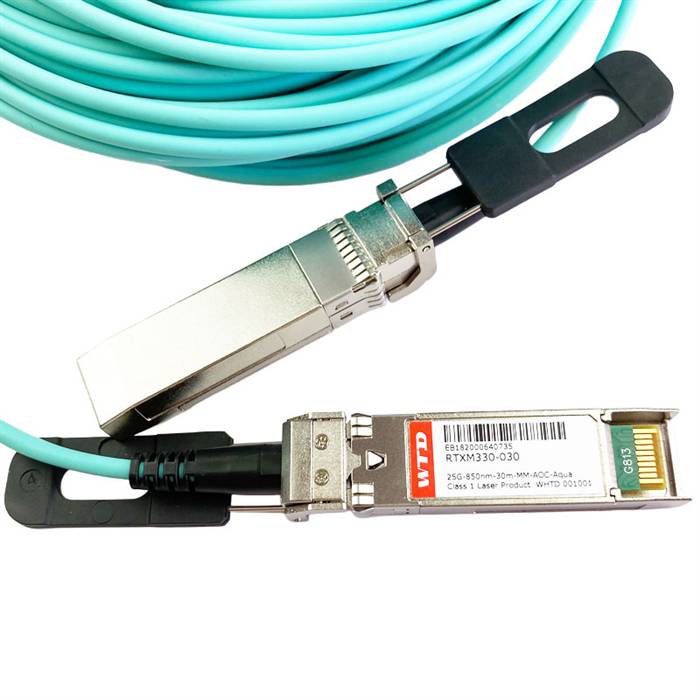

WTD 25G 850nm 30m MM AOC Active Optical Cable
WTD RTXM330-030

Alternative Views:
Our Price: $325.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: RTXM330-030
Qty:

Description

The RTXM330-030 short-wavelength AOC is designed for use in 25.78Gb/s data rate over multimode fiber. The AOC is compliant with SFF-8472, SFF-8402, SFF-8432 and applicable portions of SFF-8431. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Features
  • Link lengths at 25.78G 100m over OM4 MMF
  • Hot-pluggable
  • Low power consumption <1.2W
  • 0 to 70°C operating temperature range
  • Single +3.3V±5% power supply
  • Digital Monitoring SFF-8472 compliant
Applications
  • 25G BASE-SR Ethernet
Standards
  • SFF-8472
  • SFF-8402
  • SFF-8432
  • SFF-8431
Specifications
  • Part Number: RTXM330-030
  • Form Factor: SFP+ AOC
  • Data Rate: 25.78
  • Laser: 850nm VCSEL
  • Optical Power: -8.4 ~ 2.4dBm
  • Detector: PIN
  • Sensitivity: <-5.2dBm
  • Length: 30m
  • DDM: Supported
  • Operating Temperature: 0 ~ 70°C
