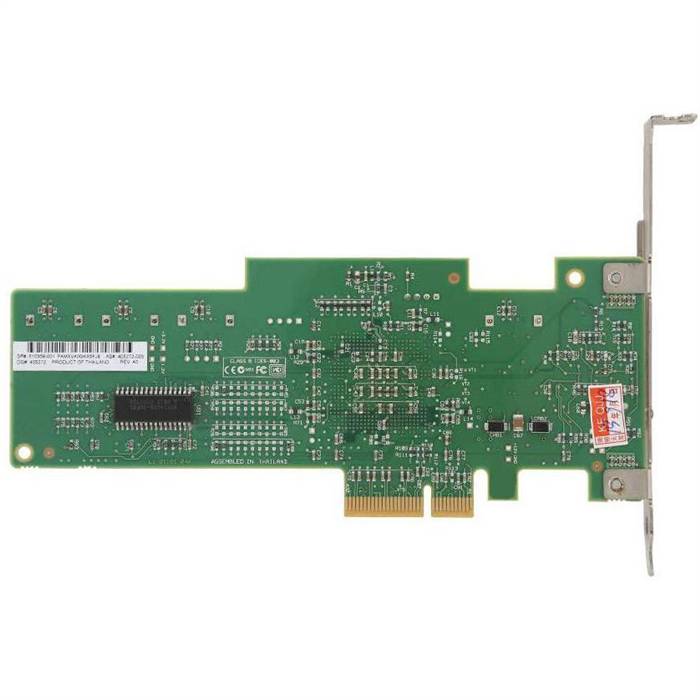

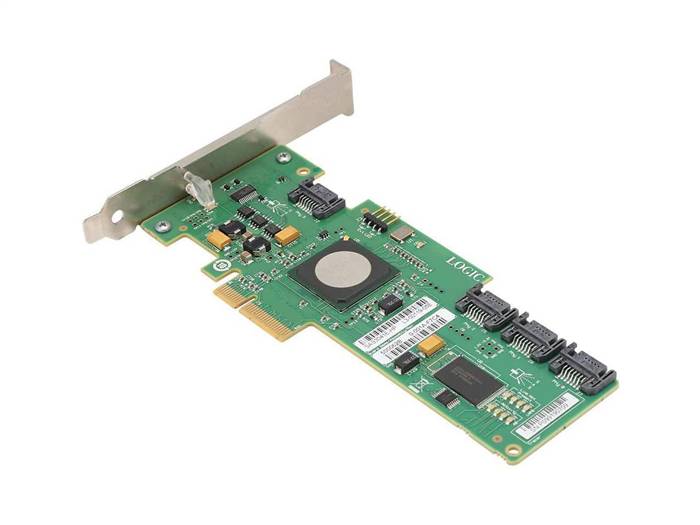

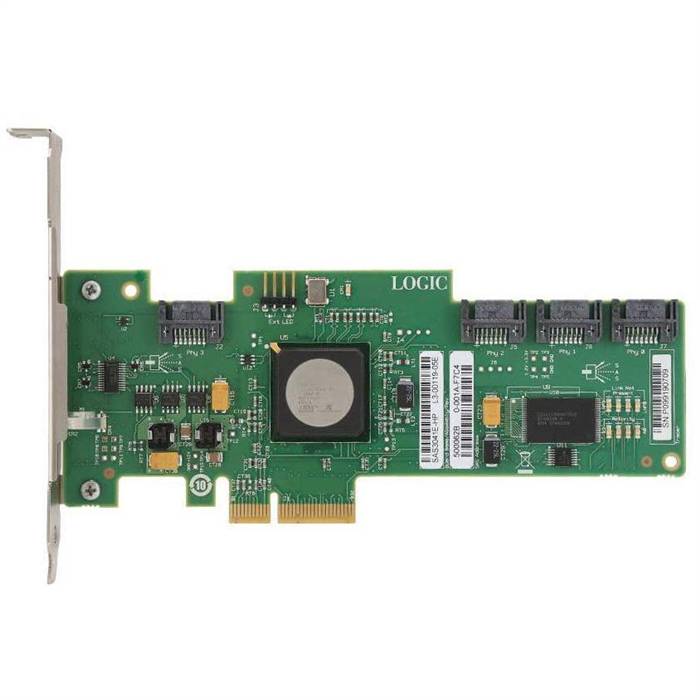

Broadcom LSI SAS3041E-R 3041E-R PCI Express x4 4-port 3Gb/s Internal SAS/SATA Host Bus Adapter
SAS3041E-R - Broadcom 3041E-R

Alternative Views:
Our Price: $80.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SAS3041E-R
Qty:

Description

The LSI SAS3041E-R is a low-cost 4-port 3 Gb/s internal SAS/SATA host bus adapter.  This card offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. The SAS3041E-R also offers integrated RAID 0, 1, 1E and 10E for high-performance data protection, making it perfect for medium capacity internal storage applications.

Features
  • 3 Gb/s per port
  • (4) internal SATA x1 connectors
  • Integrated RAID 0, 1, 1E and 10E
  • 4-lane 2.5Gb/s PCI Express
  • MD-2 small form-factor design
  • Connects to both SAS and SATA HDDs and tape drives
  • Allows more than 122 total end-point devices
  • Fusion-MPT architecture providing more than 140,000 I/Os per second
  • Supports all major operating systems

Key Advantages
  • Integrated RAID: LSI RAID avoids additional host CPU overhead
  • Flexibility: combined SAS/SATA array architecture optimizes cost
  • Scalability: addresses up to 122 devices using SAS expanders
  • Speed: with 3 Gb/s per port, combines to 2.4 Gb/s full duplex speed
  • Complete solution: kit includes all necessary cables and brackets
  • Market leader: LSI SAS powers 80% of SAS worldwide

Specifications
  • Product: LSI SAS 3041E-R
  • PCI Bus: 4-lane, 2.5Gb/s PCI Express
  • PCI Modes: Bus Master DMA
  • PCI Card Type: +3.3V ±0.3V Add-in Card
  • PCI Form Factor: 6.6” x 2.5” (MD2 Low-Profile)
  • PCI Power: 7.5W
  • Bracket: Full Height and Low Profile
  • PCI Certification: PCI Express 1.0a
  • I/O Bus: Four 3Gb/s SAS/SATA Ports
  • SAS Controller: LSISAS1064E
  • Connectors
    • Internal: Four – SATA x1 Connectors
    • External: N/A
  • LED Indicators: Internal Activity, per Phy (4) Internal Fault, per Phy (4)
  • Integrated RAID Levels: RAID 0, 1, 1E and 10E
  • Environments Operating: 0°C to 60°C, 5 to 90% Non-condensing
  • Storage: -45°C to 105°C, 5 to 90% Non-condensing
  • MTFB: >200,000 Hours
  • Compliances: EMC:EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950

Ordering Part Numbers
  • LSI LSISAS3041E-R Retail (Retail Box)
    • Individually packaged box containing the LSISAS3041E-R Card, driver CD, low-profile bracket, and installation guide.
    • Part Number: LSI00168
  • LSI LSISAS3041E-R Kit (Retail Box with Cable)
    • Individually packaged box containing the LSISAS3041E-R Card, driver CD, low-profile bracket, (4) x1 SATA cables, and installation guide.
    • Part Number: LSI00112
  • LSI LSISAS3041E-R (Bulk)
    • Bulk Package LSISAS3041E-R HBA.
