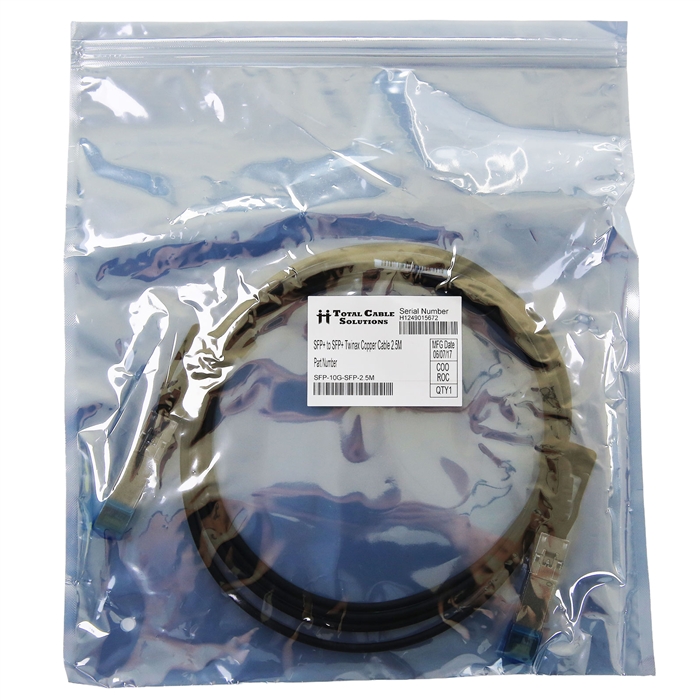

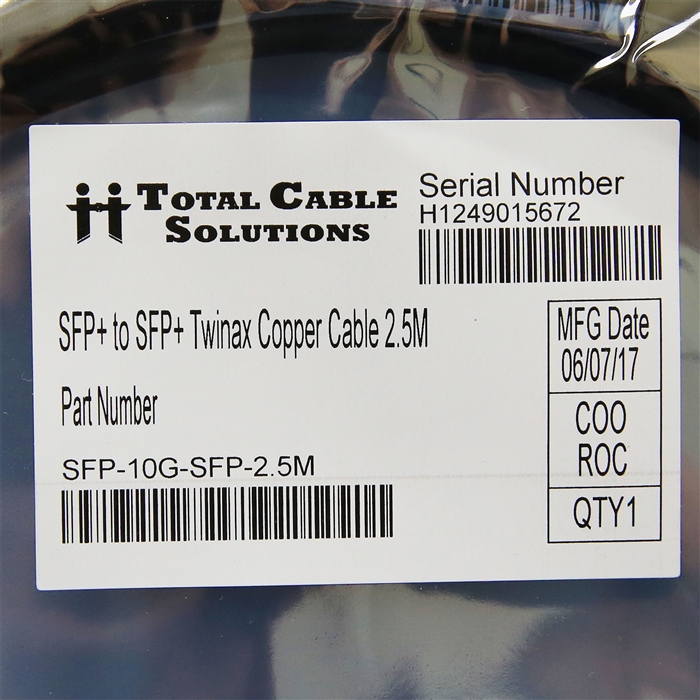

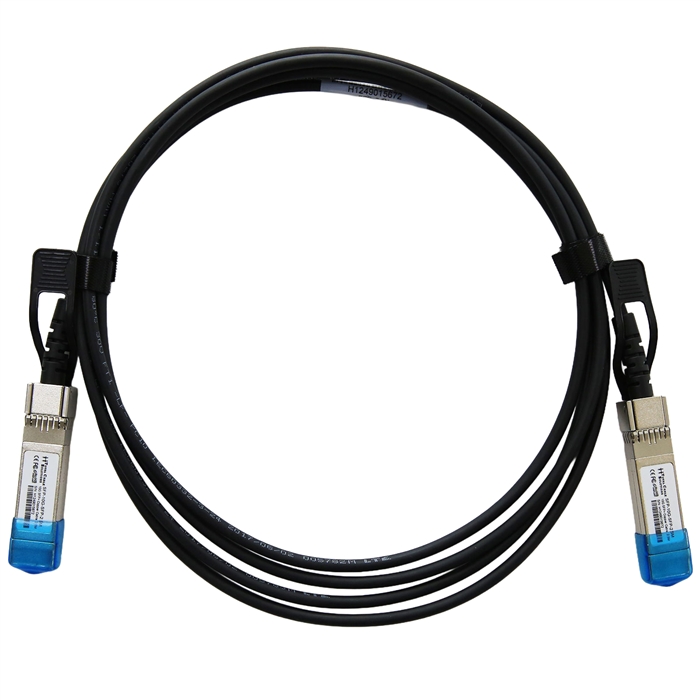

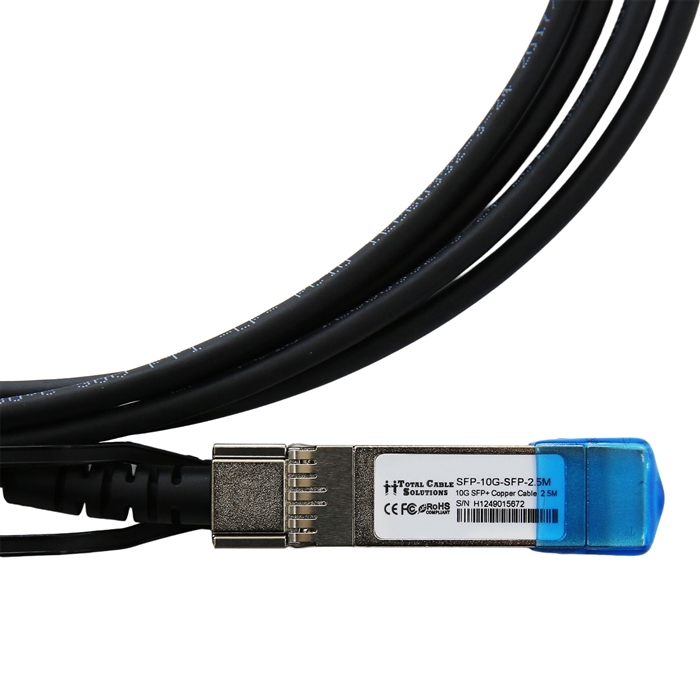

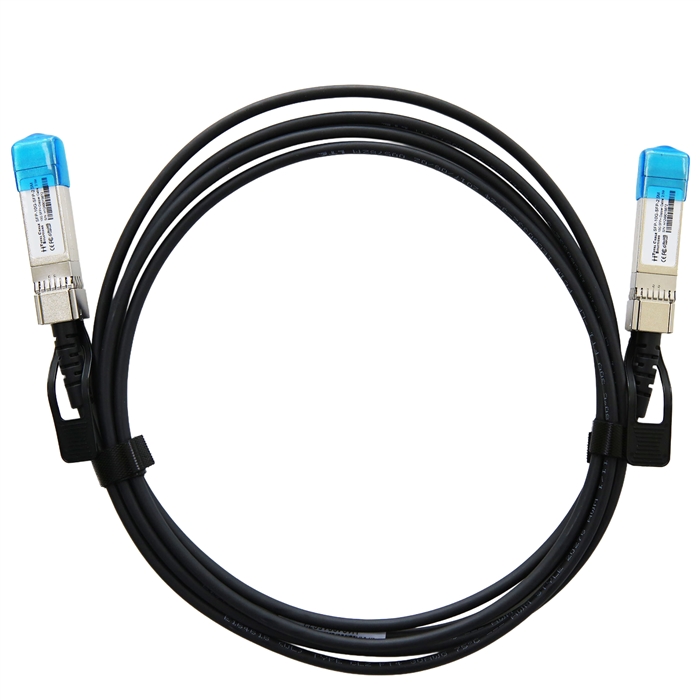

LYNN SFP-10G-SFP-2.5M 10G SFP+ to SFP+ Passive Direct Attach Copper Twinax Cable, 2.5m (8.2ft)

Popular choice for 10 Gigabit Ethernet reaches up to 5 meters due to low latency and low cost. Low power consumption provides an economical solution for Top of Rack (ToR) network applications. Power draw of the Twinax SFP+ is as low as 0.1W vs. more than 4W for 10GBASE-T CAT6/CAT6a/CAT7 cabling system.

• Hot swappable to maximize uptime and simplify serviceability
• Digital optical monitoring (DOM) capability for diagnostics
• Compliant with SFP+ MSA specifications

Specifications

• Part Number: SFP-10G-SFP-2.5M
• Length: 2.5m (8.2ft)
• Construction
  • Connector Type: SFP+ to SFP+
  • Cable Type: Passive Copper Cable
  • Wire Gauge: 30AWG (1-3m), 28AWG (4-5m)
  • Jacket: Flammability rating OFNR (Riser)
• Performance
  • Max Data Rate: 10 Gbps
  • DOM Support: Yes
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
• Approvals
  • Electrical: SFF-8431, SFF-8083
  • Mechanical: SFF-8432
  • EEPROM: SFF-8472
  • RoHs Compliant
  • Manufacturing Facility: ISO-9001 and TUV Certified
