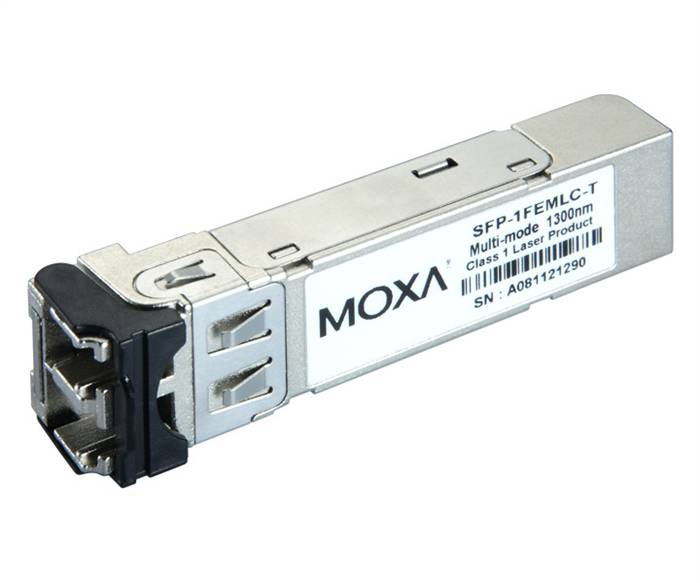

Moxa SFP-1FEMLC-T SFP module with 1 100Base multi-mode, LC connector for 2/4 km transmission, -40 to 85°C operating temperature
Moxa SFP-1FEMLC-T

Our Price: $200.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFP-1FEMLC-T
Qty:

Description

Moxa's small form-factor pluggable transceiver (SFP) Ethernet fiber modules for Fast Ethernet provide coverage across a wide range of communication distances.

Specifications
  • Part Number: SFP-1FEMLC-T
  • Product Type: SFP-1FE Series
  • Product: SFP module with 1 100Base multi-mode, LC connector for 2/4 km transmission, -40 to 85°C operating temperature
  • Ethernet Interface
    • Ports: 1
    • Connectors: Duplex LC connector
    • Transceiver Type: Multi-Mode
    • Fiber Cable Type: OM1/OM2
    • Typical Distance: 2 km
    • Wavelength
      • Typical (nm): 1310
      • TX Range (nm): 1280 to 1340
      • RX Range (nm): 1100 to 1650
    • Optical Power
      • TX Range (dBm): -8 to -18
      • RX Range (dBm): -3 to -32
      • Link Budget (dB): 14
      • Dispersion Penalty (dB): 2
  • Power Parameters
    • Power Consumption: Max. 1 W
  • Environmental Limits
    • Operating Temperature: -40 to 85°C (-40 to 185°F)
    • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
    • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Standards and Certifications
    • Safety: CE, FCC, TÜV, UL 60950-1
    • Maritime: DNV-GL
