Moxa SFP-1G40ALC

Home > OEM > Moxa >

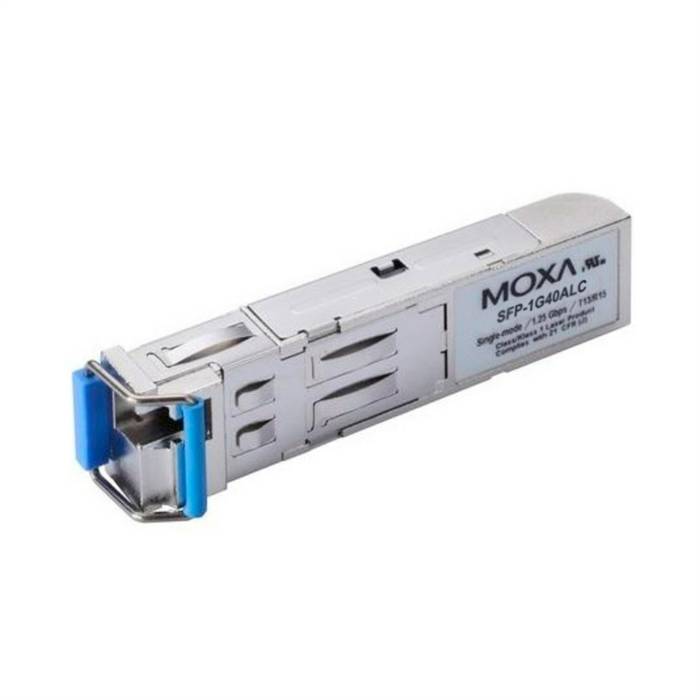

Moxa SFP-1G40ALC WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature

Our Price: $160.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: SFP-1G40ALC

Qty:

Description

Moxa's small form-factor pluggable transceiver (SFP) Ethernet fiber modules for Gigabit Ethernet provide coverage across a wide range of communication distances.

Specifications

Part Number: SFP-1G40ALC
Product Type: SFP-1G Series
Product: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature
Ethernet Interface

Ports: 1
Connectors: Simplex LC connector
Transceiver Type: Single-mode
Fiber Cable Type: G.652
Typical Distance: 40km
Wavelength

Typical (nm): TX 1310, RX 1550
TX Range (nm): 1290 to 1330
RX Range (nm): 1480 to 1580

Optical Power

TX Range (dBm): +2 to -3
RX Range (dBm): -1 to -23

Link Budget (dB): 20
Dispersion Penalty (dB): 1

Power Parameters

Power Consumption: Max. 1 W

Environmental Limits

Operating Temperature: 0 to 60°C (32 to 176°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: CE, FCC, TÜV (EN 60825), UL 60950-1
Maritime: DNV-GL
