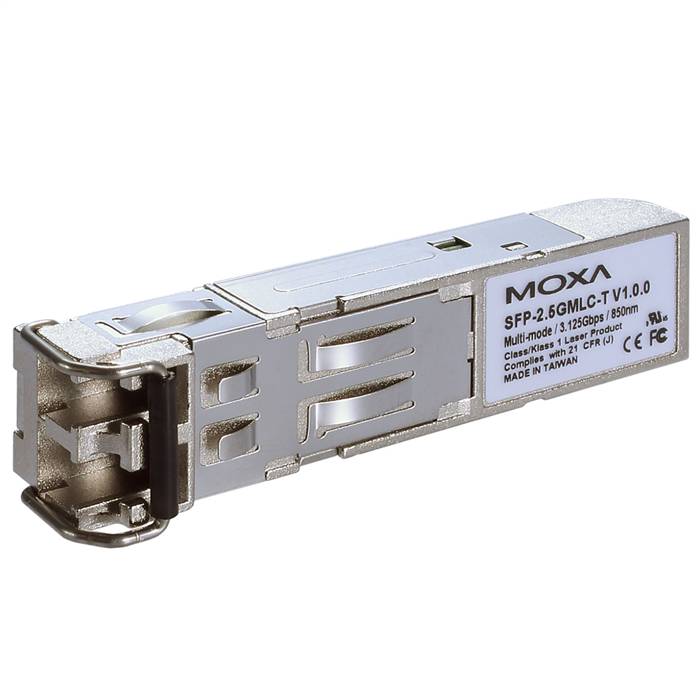

Moxa SFP-2.5GMLC-T

Home > OEM > Moxa >

Moxa SFP-2.5GMLC-T SFP module with 1 2.5GBaseFX port with LC connector, multi-mode, for 170, 200, 550, 600 m transmission, -40 to 85 °C operating temperature

Our Price: $130.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: SFP-2.5GMLC-T

Qty:

Description

Moxa's small form-factor pluggable transceiver (SFP) Ethernet fiber modules for 2.5 Gigabit Ethernet provide coverage across a wide range of communication distances.

Specifications

Part Number: SFP-2.5GMLC-T
Product Type: SFP-2.5G Series
Product: SFP module with 1 2.5GBaseFX port with LC connector, multi-mode, for 170, 200, 550, 600 m transmission, -40 to 85 °C operating temperature
Ethernet Interface

Connectors: Duplex LC connector
Transceiver Type: Multi-mode
Fiber Cable Type: OM1, OM2, OM3, OM4
Typical Distance: 170m@OM1, 200m@OM2, 550m@OM3, 600m@OM4
Wavelength

Typical (nm): 850
TX Range (nm): 830 to 860
RX Range (nm): 830 to 860

Optical Power

TX Range (dBm): -1 to -7.5
RX Range (dBm): 0 to -13.5

Link Budget (dB): 6
Dispersion Penalty (dB): 2.5

Power Parameters

Power Consumption: Max. 1 W

Environmental Limits

Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: CE, FCC, IEC 60825-1, UL 62368-1, IEC 62368-1, EN 62368-1
