SFP-25G-BD-PAIR-20KM | 25G BIDI SFP28 Optical Transceiver - KIT
SFP-25G-BD-PAIR-20KM | 25GBASE-BX20 SFP28 BiDi Pair 20km | Compufox

Our Price: $175.00

Warranty: 1 Year Warranty


Product Code: SFP-25G-BD-PAIR-20KM

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

Pair - 25GBASE-BX SFP28 Transceivers (SMF, Tx1270nm/Rx1330nm-Tx1330nm/Rx1270nm, LC, 20KM, DOM).

Complete 25GBASE-BX20 SFP28 BiDi 20km Transceiver Pair The SFP-25G-BD-PAIR-20KM is a professional-grade kit featuring the Upstream (BX20-U) and Downstream (BX20-D) modules required for a 20km bi-directional 25G link. By purchasing this matched set, you ensure immediate compatibility and link stability over a single strand of fiber, doubling your bandwidth capacity while reducing cabling costs by 50%.


Matched Set Benefits:

  • Plug-and-Play Link: Includes one 1270nm-TX/1330nm-RX and one 1330nm-TX/1270nm-RX module for a seamless handshake.
  • Extended 20km Reach: Engineered for campus backbones and metro networks that exceed the limits of standard 10km modules.
  • High Integrity: Features Dual-Clock Data Recovery (CDR) on both modules to maintain signal quality over long distances.

Technical Specifications

Kit Components

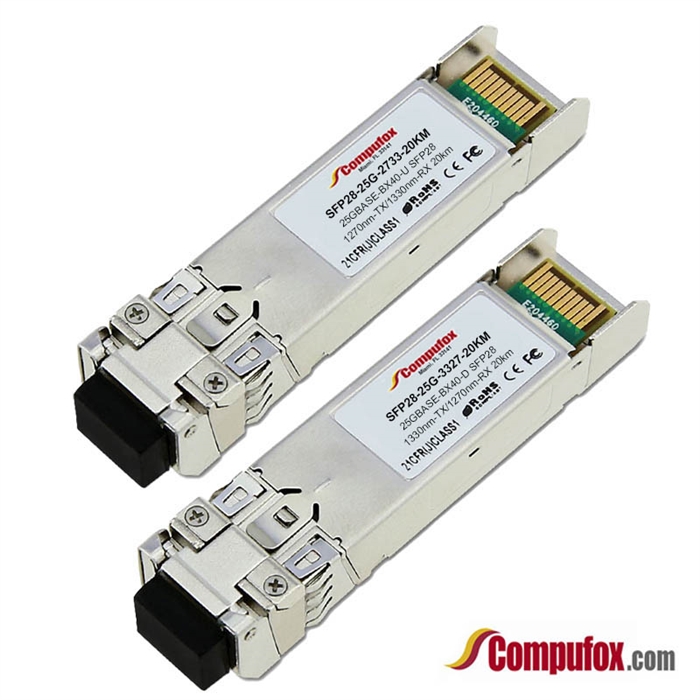

1x SFP28-25G-2733-20KM & 1x SFP28-25G-3327-20KM
Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelengths
1270nm/1330nm & 1330nm/1270nm
Max Distance
20km
Connector
Simplex LC (Single Strand)
Media
Single-mode Fiber (SMF)
Transmitter Type
DFB BiDi
Receiver Type
PIN
Power Consumption
≤ 1.2W (Per Module)
CDR Support
Integrated TX and RX CDR
Protocols
eCPRI, SFF-8472, SFF-8432, SFF-8431
DDM/DOM
Supported
Warranty
1 Year Matched Pair Warranty
Features
  • Compatible Switches and Routers:
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-SE)
  • Cisco Catalyst 9200 Series (C9200-NM-2Y)
  • Cisco Catalyst 9200L Series (C9200L-24PXG-2Y)
  • Cisco Catalyst 9200L Series (C9200L-48PXG-2Y)
  • Cisco Catalyst 9300 Series (C9300-NM-2Y)
  • Cisco Catalyst 9300X Series (C9300X-12Y)
  • Cisco Catalyst 9300X Series (C9300X-24Y)
  • Cisco Catalyst 9300X Series (C9300X-NM-8Y)
  • Cisco Catalyst 9400 Series (C9400-SUP-1XL-Y)
  • Cisco Catalyst 9500 Series (C9500-24Y4C)
  • Cisco Catalyst 9500 Series (C9500-48Y4C)
  • Cisco Catalyst 9600 Series (C9600-LC-48YL)
  • Cisco Nexus 3000 Series (N3K-C36180YC-R)
  • Cisco Nexus 3000 Series (N3K-C34180YC)
  • Cisco Nexus 3000 Series (N3K-C34200YC-SM)
  • Cisco Nexus 9200 Series (N9K-C92348GC-X)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX)
  • Cisco Nexus 9300 Series (N9K-C9348GC-FXP)
  • Cisco Nexus 9300 Series (N9K-C93240YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93360YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3S)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3)
  • Cisco Nexus 9500 Series (N9K-X97160YC-EX)
  • Cisco Nexus 9500 Series (N9K-X96136YC-R)
  • Cisco NCS 540 Series (N540-24Z8Q2C-SYS)
  • Cisco NCS 540 Series (N540-ACC-SYS)
  • Cisco NCS 540 Series (N540X-ACC-SYS)
  • Cisco NCS 540 Series (N540-24Z8Q2C-M)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-A)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-D)
  • Cisco NCS 540 Series (N540-FH-CSR-SYS)
  • Cisco NCS 540 Series (N540-24Q8L2DD-SYS)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-HD-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-SE-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-HX-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-SE-H-S)
  • Cisco NCS 5500 Series (NCS-55A1-48Q6H)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-S)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-SS)
  • Cisco NCS 5500 Series (NC55-32T16Q4H-A)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-SE-S)
  • Cisco UCSB (UCS-FI-6454)
  • Cisco UCSB (UCS-IOM-2408)
  • Cisco UCSB (UCS-FI-64108)
  • Cisco UCSB (UCS-FI-64108-U)
  • Cisco UCSB (UCS-FI-6454-U)
  • Cisco UCSC (UCSC-PCIE-QD25GF)
  • Cisco UCSC (UCSC-PCIE-ID25GF)
  • Cisco UCSC (UCSC-P-M4D25GF)
  • Cisco UCSC (UCSC-P-M5D25GF)
  • Cisco UCSC (UCSC-PCIE-C25Q-04)
  • Cisco UCSC (UCSC-MLOM-C25Q-04)
  • Cisco UCSC (UCSC-M-V25-04)
  • Cisco UCSX (UCS-9108-25G-IFM)
  • Mellanox MCX4121A-ACAT
  • Mellanox MCX512A-ACAT
  • Qlogic (Qlogic QLE41212HLCU)
