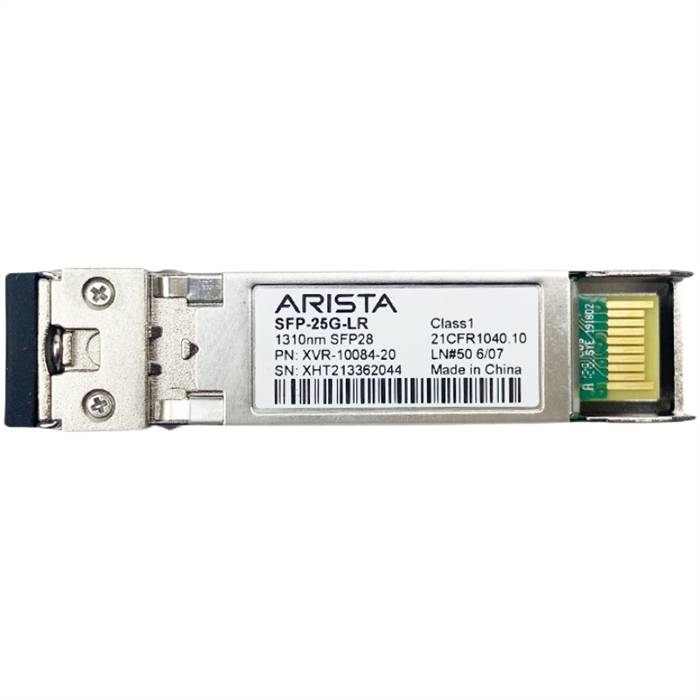

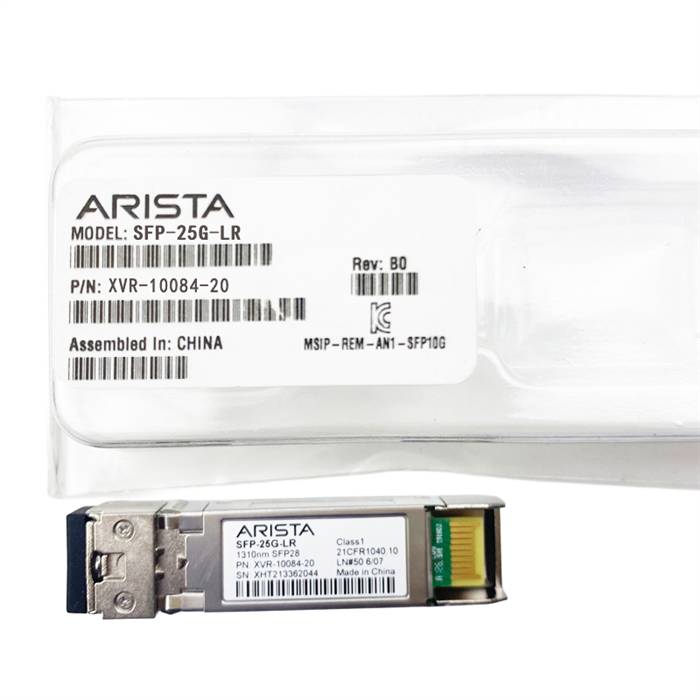

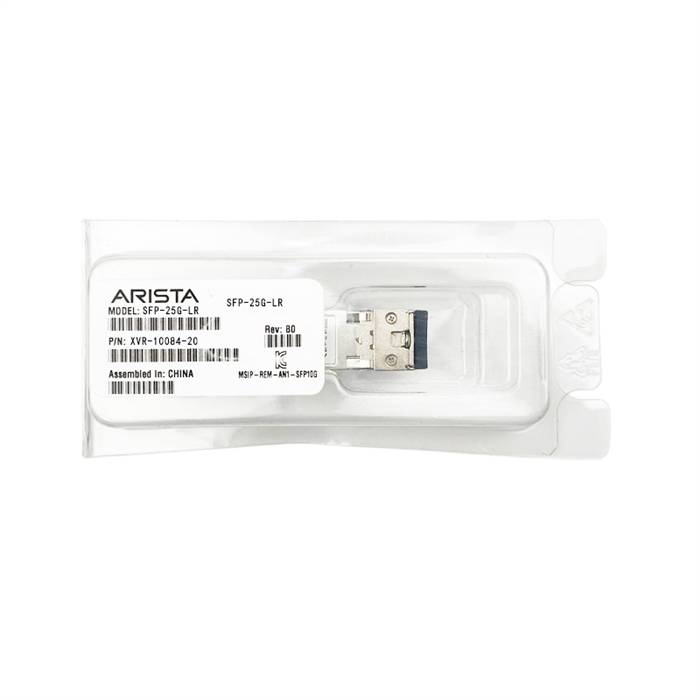

Arista SFP-25G-LR 25GBASE-LR SFP28 1310nm 10km DOM Duplex LC SMF Transceiver Module XVR-10084-20

This Arista SFP-25G-LR 25G optics module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into a LC Duplex optical connector, providing links up to 10km over single-mode fiber.

Features

• Support for 25Gb/s data rate
• 1310nm DFB transmitter, PIN photo-detector
• Distance up to 10km on single-mode fiber
• LC Duplex connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• ROHS compliant and lead-free

Specifications

• Part Numbers: SFP-25G-LR, XVR-10084-20
• Optcore Part Number: SFP-25G-LR-ARI
• Form Factor: SFP28
• Data Rate: 25 Gb/s
• Wavelength: 1310 nm
• Fiber Type: SMF
• Max Distance: 10 km
• Optical Components: DFB/PIN
• Receiver Sensitivity: < -10 dBm
• Receiver Overload: > 3 dBm
• Connector: LC Duplex
• Digital Diagnostic Monitoring: Yes
• Environment:
• Operating: 0°C to 70°C
• Storage: -40°C to 85°C
• Weight: 0.03 kg
• Application: 25GBASE-LR Ethernet
• Compliance
• IEC/EN 61000-4-2,IEC-60825
• FDA 21CFR 1040.10 and 1040.11
• RoHS
