SFP-GE-SX-MM850-A - Genuine H3C SFP-GE-SX-MM850-A

Home > OEM > H3C >

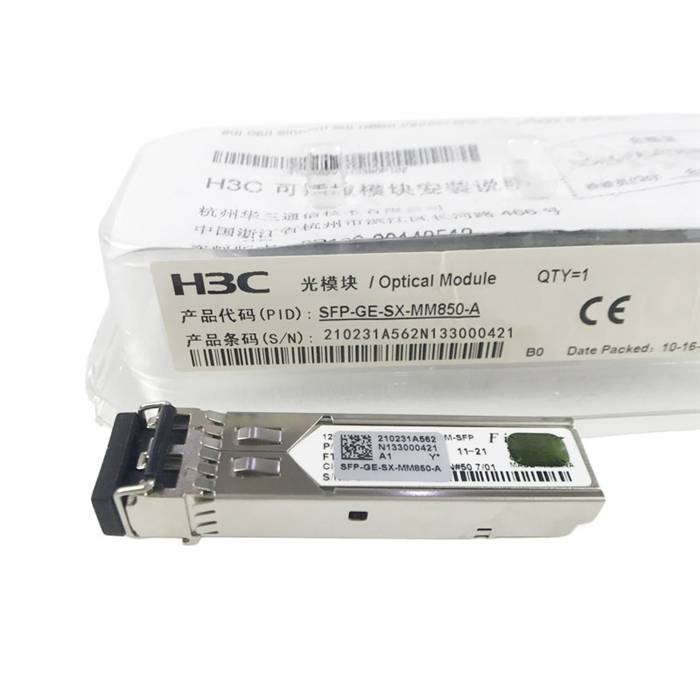

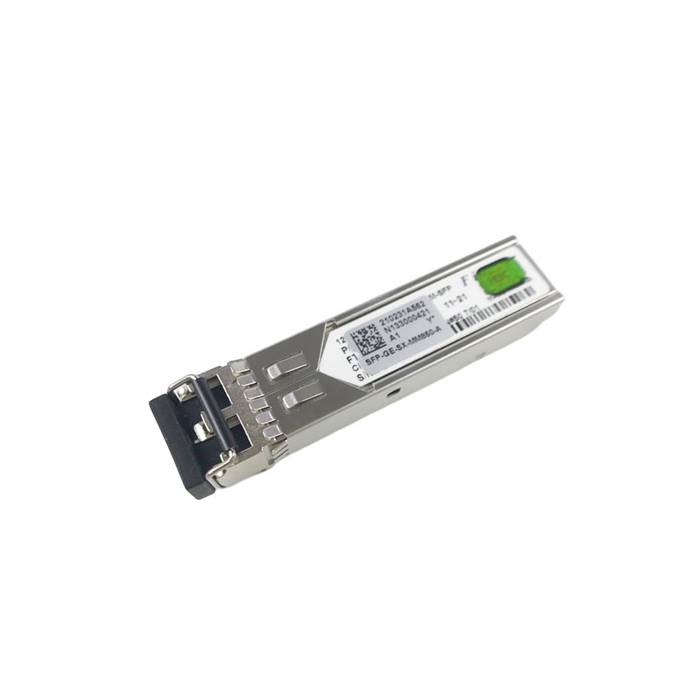

H3C 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

SFP-GE-SX-MM850-A - Genuine H3C SFP-GE-SX-MM850-A

Alternative Views:

Our Price: $125.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: SFP-GE-SX-MM850-A

Qty:

Description

This H3C SFP-GE-SX-MM850-A optics is a high performance and cost-effective small form factor pluggable transceiver. It is suitable for 1000BASE-SX Gigabit Ethernet and 1G Fibre Channel application. The product is supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this easy to install, hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Features

Genuine H3C SFP-GE-SX-MM850-A
Support Up to 1.25Gb/s data rate
Compliant with IEEE 802.3z
Support Digital diagnostics, compliant with SFF-8472
LC Duplex connector
ROHS Compliant and Lead-Free

Specifications

Form Factor: SFP
Data Rate: 1.25Gb/s
Wavelength: 850 nm
Fiber Type: MMF
Max Distance: 550 m
Optical Components: VCSEL/PIN
Transmitter Power: -9 ~ -3 dBm
Extinction ratio: > 9 dB
Receiver Sensitivity: < -18 dBm
Receiver Overload: > 0 dBm
Connector: Duplex LC
Digital Diagnostic Monitoring: Yes
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Weight: 0.025 kg
Applications

1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications
Router/Server Interface, Other Optical Links
