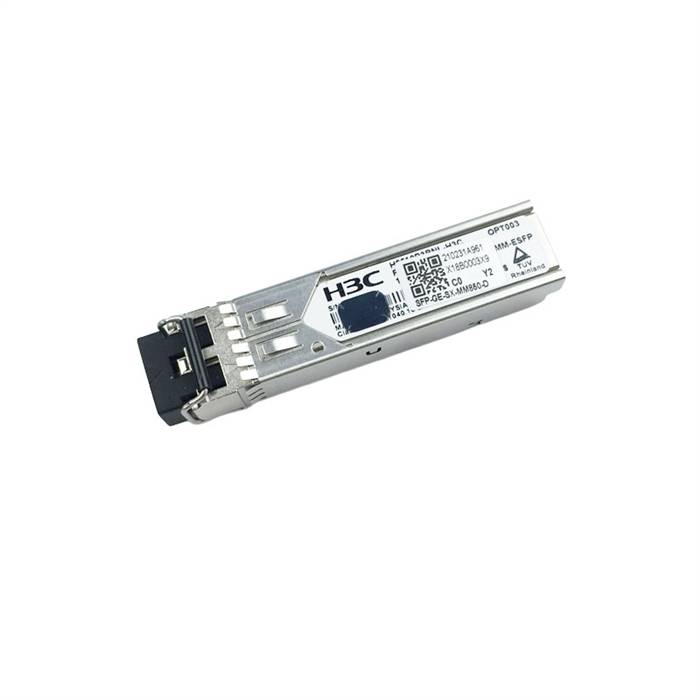

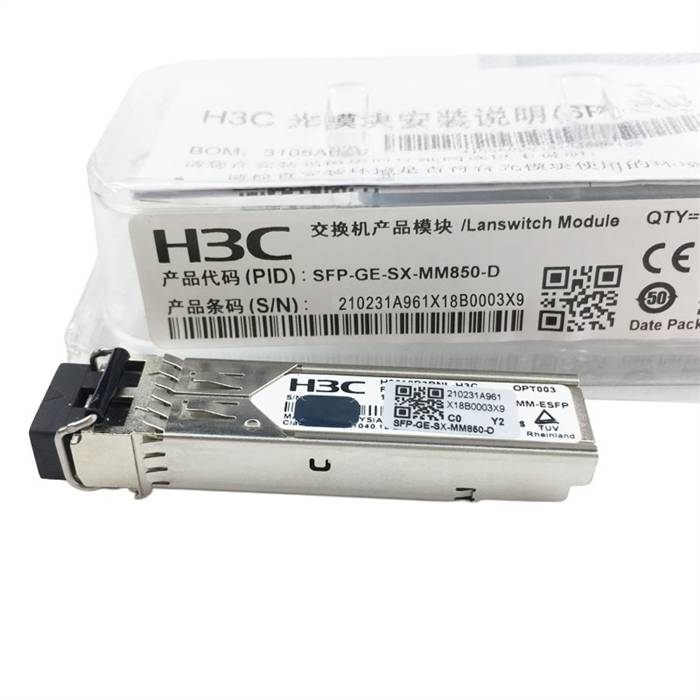

H3C 1000BASE-SX SFP Transceiver, MMF 850nm 550m, Duplex LC, DDM
SFP-GE-SX-MM850-D - Genuine H3C SFP-GE-SX-MM850-D

Alternative Views:
Our Price: $60.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFP-GE-SX-MM850-D
Qty:

Description

The H3C SFP-GE-SX-MM850-D is SFP (Small Form factor Pluggable) Transceiver, operating over duplex multi-mode fiber. It has minimum guaranteed optical budget of 7.5 dB, with in most cases is enough to reach about 550 m distance. This transceiver use top quality VSCEL Laser transmitter with operating at nominal wavelength 850 nm. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. The H3C SFP-GE-SX-MM850-D operates in standard 0°-70°C temperature range and has duplex LC interface. The SFP supports 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps) and 1G Fiber Channel (1.0625 Gbps).

Specifications
  • Type: SFP
  • Compatibility: Huawei compatible
  • Tx/Rx Wavelength: 850 nm. / 850 nm.
  • Media Type: Multi-Mode Fiber (MMF)
  • Optical Budget: 7.5 dB
  • Max. Distance: 550 m
  • Data Rate: 1.063-1.25Gbps
  • Temperature: Standard 0°-70°C
