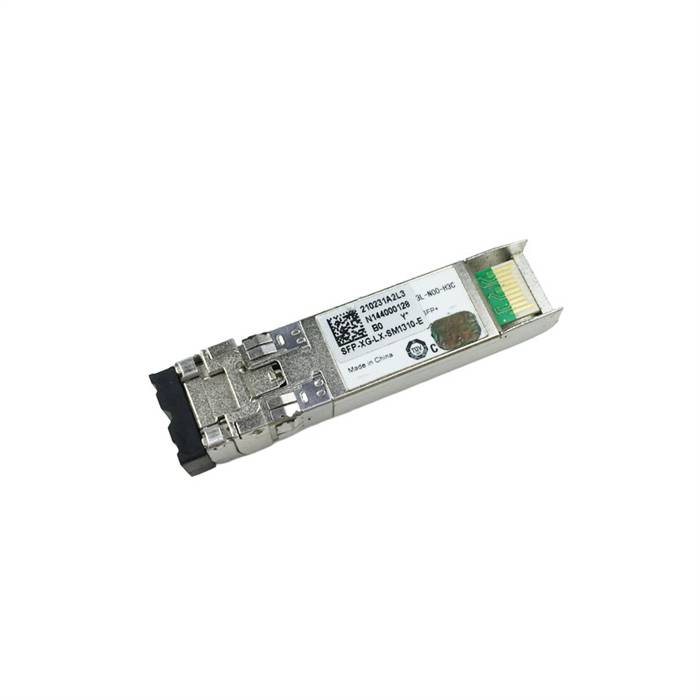

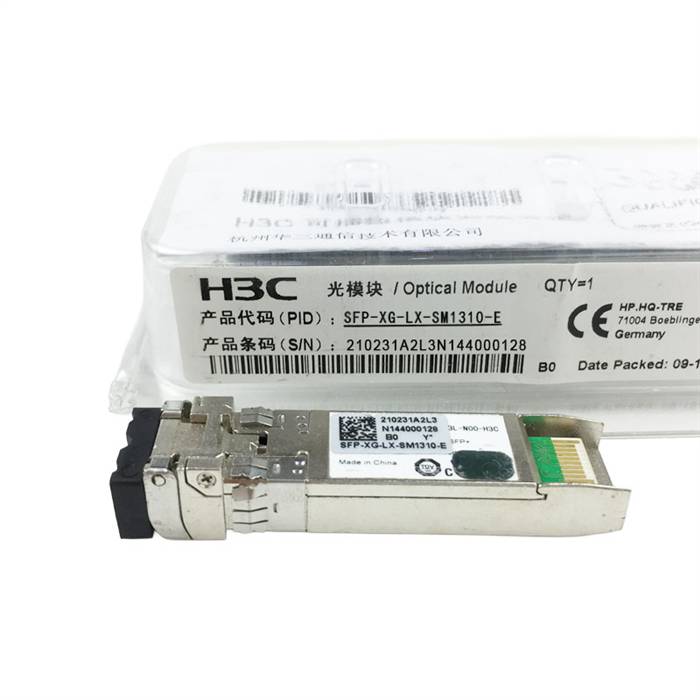

H3C 10GBASE-LR SFP+ Transceiver Module, Single Mode, 1310nm, 10km, LC
SFP-XG-LX-SM1310-E - Genuine H3C SFP-XG-LX-SM1310-E

Alternative Views:


Our Price: $100.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFP-XG-LX-SM1310-E
Qty:

Description

This H3C SFP-XG-LX-SM1310-D is a high performance and cost effective SFP+ transceiver module supporting data-rate of 10.3125Gbps (10GBASE-LR) or 9.953Gbps (10GBASE-LW) over single mode optical fiber. The SFP+ transceiver module fully complies with SFP+ Multi-Source Agreement (MSA) standards SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW. Additionally, this SFP+ transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472, which providing real-time monitoring of the transceiver optics temperature, laser bias current, optical power, received optical power and transceiver optics supply voltage. The transceiver is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features
  • Genuine H3C SFP-XG-LX-SM1310-D
  • Hot-pluggable SFP+ footprint
  • Electrical interface compliant to SFF-8431
  • Compliant with SFF-8472
  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
  • 1310nm DFB transmitter, PIN photo-detector
  • Distance up to 10km on single mode fiber
  • LC Duplex connector
  • Built-in digital diagnostic functions
  • Single 3.3V power supply
  • Metal enclosure, for lower EMI
  • ROHS compliant and lead-free

Specifications
  • Form Factor: SFP+
  • Max Data Rate: 10.3125Gbps
  • Connector: Duplex LC
  • Fiber Type: SMF
  • Wavelength: 1310nm
  • Max Distance: 10km
  • Optical Components: DFB/PIN
  • Transmitter Power: -6 ~ 0 dBm
  • Receiver Sensitivity: <-14.4dBm
  • Receiver Overload: > 0.5 dBm
  • Digital Diagnostic Monitoring: Yes
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Weight: 0.03 kg
  • Applications
    • 10GBASE-LR/10GBASE-LW Ethernet
    • 10G Fiber Channel
    • 10GbE Data Center Switches and Routers
