H3C 10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module
SFP-XG-SX-MM850-D - Genuine H3C SFP-XG-SX-MM850-D

Alternative Views:
Our Price: $100.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFP-XG-SX-MM850-D
Qty:

Description

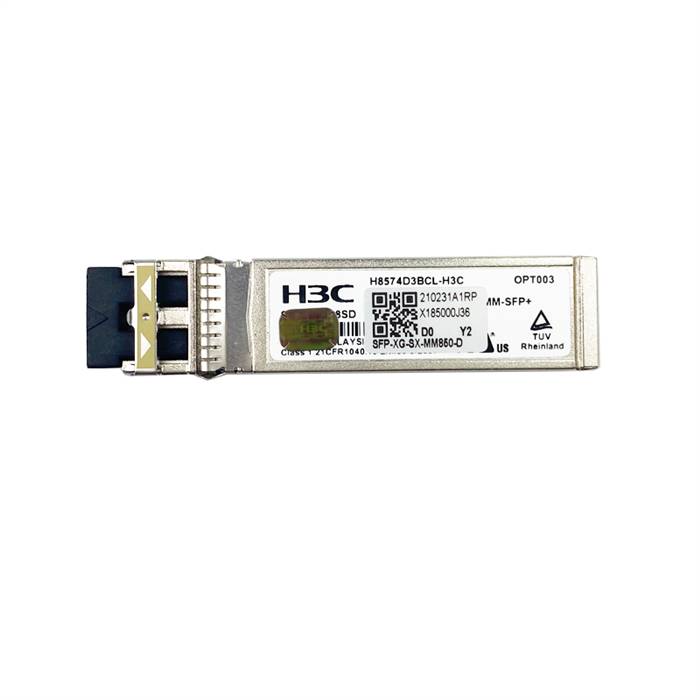

This H3C SFP-XG-SX-MM850-D transceiver is high performance and cost-effective SFP+ supporting data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) over multi-mode fiber cable. This 10GBase-SR SFP+ transceiver is programmed to be compatible with a wide range of H3C Switches, Routers, Network Interface Cards (NICs) and Ethernet Media Converters.

Features
  • Genuine H3C SFP-XG-SX-MM850-D
  • Electrical interface compliant to SFF-8431
  • Compliant with SFF-8472
  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
  • 850nm VCSEL transmitter, PIN photo-detector
  • Distance up to 300 meters on 10G OM3 fiber
  • LC Duplex connector
  • ROHS compliant and lead-free

Specifications
  • Form Factor: SFP+
  • Data Rate: 10Gb/s
  • Connector: Duplex LC
  • Fiber Type: MMF
  • Wavelength: 850nm
  • Max Distance: 300m
  • Optical Components: VCSEL/PIN
  • Transmitter Power: -6 ~ -1 dBm
  • Extinction ratio: > 3.5 dB
  • Receiver Sensitivity: < -10 dBm
  •  Receiver Overload: > 0.5 dBm
  • Digital Diagnostic Monitoring: Yes
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Weight: 0.03 kg
  • Applications
    • 10GBASE-SR/10GBASE-SW Ethernet
    • 10G Fiber Channel
    • 10GbE Data Center Switches and Routers
