Home > Optical Transceivers > 25G SFP28 >

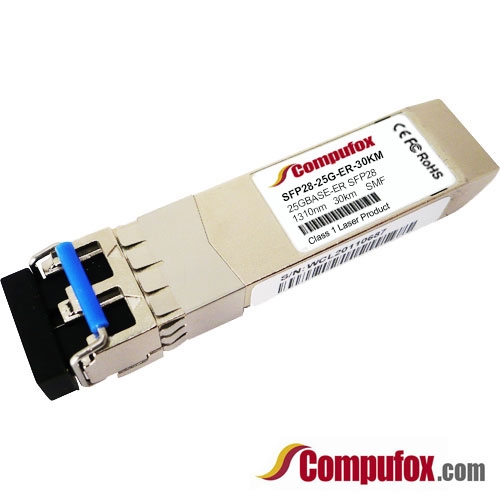

SFP28-25G-ER-30KM | 25G SFP28 Optical Transceiver
SFP28-25G-ER-30KM | 25GBASE-ER SFP28 1310nm 30km Transceiver

Our Price: $115.00

Warranty: 1 Year Warranty


Product Code: SFP28-25G-ER-30KM

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

25GBASE-ER SFP28 Optical Transceiver Module (SMF, 1310nm, 30km, LC, DOM).

Compufox SFP28-25G-ER-30KM is an intermediate long-reach solution designed for 25 Gigabit Ethernet and mobile fronthaul (CPRI/eCPRI). By utilizing a high-sensitivity APD receiver, this module provides a robust 19dB power budget, ensuring reliable data transmission up to 30km over single-mode fiber (SMF).

Key Advantages:

  • Optimized Distance: Specifically designed for 30km links where 10km is insufficient but 40km optics exceed the budget.
  • Universal Brand Support: Custom-coded for seamless compatibility with Cisco, Juniper, Arista, Dell, and other major switching platforms.

Technical Specifications

Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
1310nm
Max Cable Distance
30km
Connector
Duplex LC
Media
Single-mode Fiber (SMF)
Transmitter Type
DML 1310nm
Receiver Type
APD
TX Power
0 ~ 6dBm
Receiver Sensitivity
< -19dBm
Power Budget
19dB
Receiver Overload
-4dBm
Power Consumption
≤ 2.2W
Extinction Ratio
4dB
CDR Support
TX and RX Built-in
FEC Function
Not Supported
Temp. Range
0 to 70°C (32 to 158°F)
Protocols
MSA Compliant, CPRI, eCPRI
DDM/DOM
Supported
Warranty
1 Year
