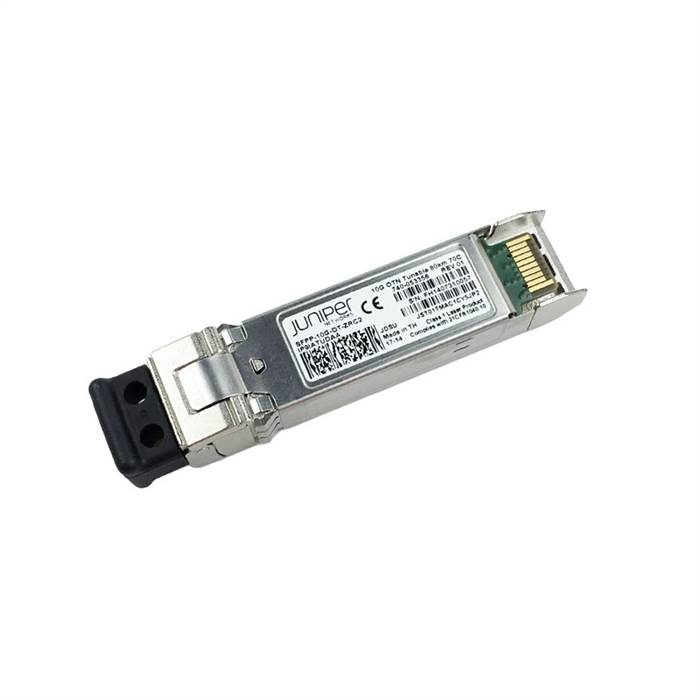

Juniper 10G-ZR Eth OTN tunable SFP+ 80km over Single Mode Fiber Transceiver, 740-053356
SFPP-10G-DT-ZRC2 - Genuine Juniper 740-053356

Alternative Views:
Our Price: $500.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFPP-10G-DT-ZRC2
Qty:

Description

Specifications
  • Product Number: SFPP-10G-DT-ZRC2
  • Product Name: 10G-ZR Eth OTN tunable SFP Plus 1.5W 70 degrees C
  • Part Number: 740-053356
  • Speed: 10 Gigabit Ethernet
  • Transceiver Type: SFP+
  • Product Type: Optical Transceiver
  • Connector: Duplex LC
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 10GBASE-ZR
  • Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): Multivendor agreement
  • Digital Diagnostic Monitoring
    • Tx power
    • Rx power
    • Bias current
    • Case temperature
    • Power supply voltage
  • NEBs (Yes or No): Yes
  • Transmitter wavelengths (range): 1528.38 nm through 1568.77 nm (tunable)
  • Transmitter output power, each lane (minimum): -1.0 dBm
  • Transmitter output power, each lane (maximum): +3.0 dBm
  • Receiver input power, each lane (minimum): –24.0 dBm (9.95, 10.312, and 10.709 Gbps, BER <1X10-12, no FEC) –25.0 dBm (11.049 and 11.095 Gbps, BER <1X10-6, pre-FEC)
  • Receiver input power, each lane (maximum): -7.0 dBm
  • Cable type: SMF
  • Core size/cladding: 9/125 µm
  • Distance: 80 km
  • Maximum Power consumption (W): 1.5 W
  • Operating Temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C
