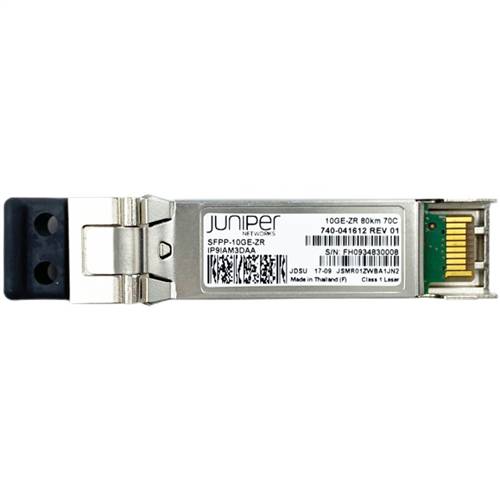

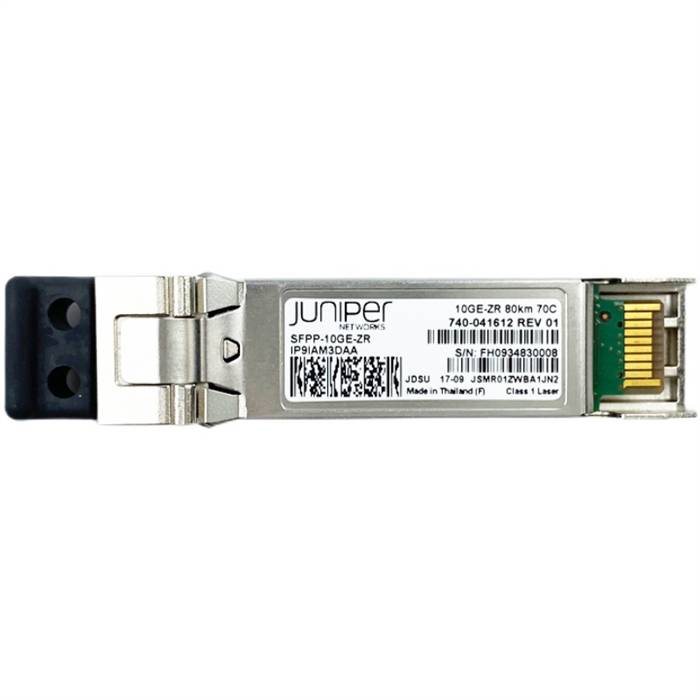

Juniper 10GBASE-ZR 1550nm 10Base-ZR SFP+ 80km Transceiver, 740-041612
SFPP-10GE-ZR - Genuine Juniper 740-041612

Alternative Views:
Our Price: $480.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFPP-10GE-ZR
Qty:

Description

Overview & Specifications
  • Product Number: SFPP-10GE-ZR
  • Product Name: SFP+ 10GE Pluggable Transceiver, SMF, 1550nm for 80KM Transmission
  • Part Number: 740-041612
  • Speed: 10 Gigabit Ethernet
  • Transceiver Type: SFP+
  • Product Type: Optical Transceiver
  • Connector: Duplex LC
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 10GBASE-ZR
  • Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): Multivendor agreement
  • MSA compliance (SFF, for e.g. SFF-8665)
    • SFF-8431
    • SFF-8472
    • SFF-8432
  • Digital Diagnostic Monitoring
    • Transceiver Temperature
    • Transceiver Supply Voltage
    • Tx Bias Current
    • Tx output power
    • Rx received optical power
  • NEBs (Yes or No): Yes
  • Signaling rate, each lane: 10 Gbps
  • Transmitter wavelengths (range): 1530 nm to 1565 nm
  • Receive lane wavelengths (range): 1260 nm to 1565 nm
  • Transmitter output power, each lane (minimum): 0 dBm
  • Transmitter output power, each lane (maximum): 4.0 dBm
  • Receiver input power, each lane (minimum): –24 dBm
  • Receiver input power, each lane (maximum): -7 dBm
  • Receiver sensitivity (OMA), each lane (maximum): -24 dBm
  • Cable type: SMF
  • Core size/cladding: 9/125 µm
  • Distance: 80 km
  • Maximum Power consumption (W): 1.5 W
  • Operating Temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C
  • Typical Weight & Dimensions
    • Width: 14 mm
    • Height: 12.05 mm
    • Length: 57.5 mm
    • Weight: 0.15 lb
