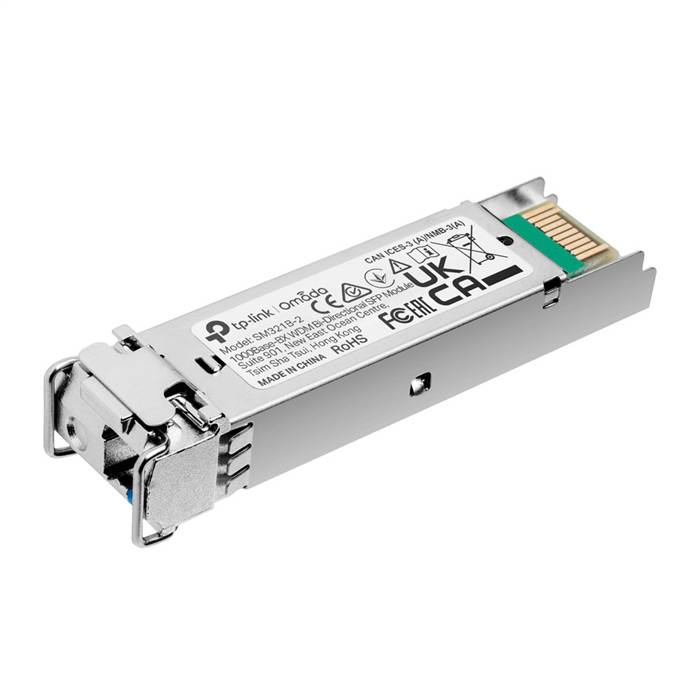

TP-Link SM321B-2 1000Base-BX WDM Bi-Directional TX:1310nm/RX:1550nm 2km SFP Module

TP-Link´s SM321B-2 (TL-SM321B-2) is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, SM321B-2 (TL-SM321B-2) uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).

Also, SM321B-2 (TL-SM321B-2) incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TP-Link's SM321B-2 (TL-SM321B-2) is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

Features

• Adopts the latest standard 1000Base-BX
• Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
• Supports Digital Diagnostic Monitoring (DDM)
• Supports Hot Swap

Specifications

• Standards and Protocols: IEEE 802.3z, TCP/IP
• Wave Length:
• TX: 1310 nm
• RX: 1550 nm
• Dimensions (W*D*H): 2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
• Power Supply: 3.3 V
• Safety & Emission: FCC, CE
• Cabel: Single-Mode Fiber
• Fiber Type: 9/125 μm Single-Mode
• Max. Cable Length: 2 KM
• Data Rate: 1.25 Gbps
• Port Type: LC Simplex
• Hardware Features:
• DDM
• SFP-MSA
• Hot Swappable
• Environment:
• Operating Temperature: 0–70 °C (32–158 °F)

• Storage Temperature: -40–85 °C ( -40–185 °F)
• Operating Humidity: 10–90% RH, Non-Condensing
• Storage Humidity: 5–90% RH, Non-Condensing
