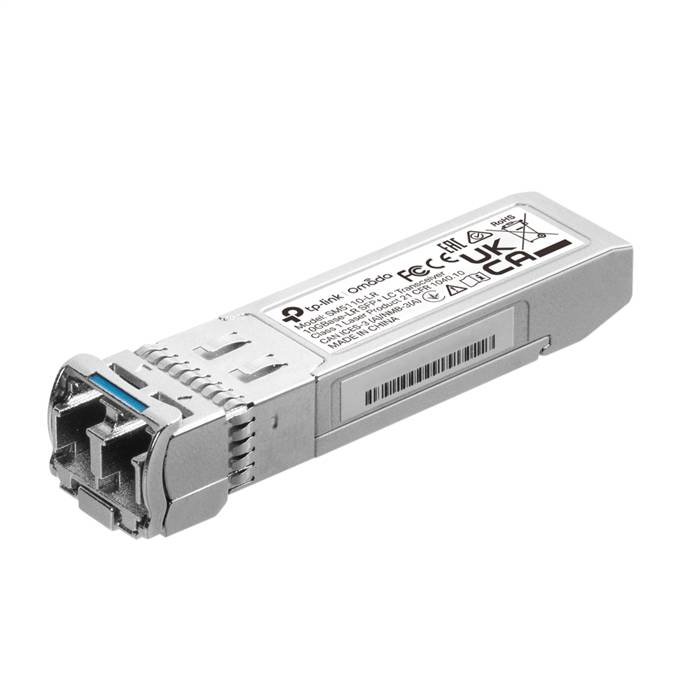

TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver

The SM5110-LR (TL-SM5110-LR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Features

• Single-mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
• Compatible with switches with 10G SFP+ ports, like SG3428X, TL-SG3428XMP, and more.

Specifications

• DDM: Yes
• SFP-MSA: Yes
• Hot Swappable: Yes
• Dimensions (W*D*H): 2.2*0.5*0.4 in (56.7*13.9*10.35 mm)
• Standards and Protocols: IEEE 802.3ae, TCP/IP
• Wave Length: 1310 nm
• Power Supply: 3.3V
• Fiber Type: 9/125um Single-Mode
• Max. Cable Length: 10 km
• Data Rate: 10 Gbps
• Port Type: LC Duplex
• Safety & Emission: FCC, CE
• Environment:
• Operating Temperature: 0–70 °C (32–158 °F)
• Storage Temperature: -40–85 °C ( -40–185 °F)
• Operating Humidity: 10–90% RH, Non-Condensing
• Storage Humidity: 5–90% RH, Non-Condensing
