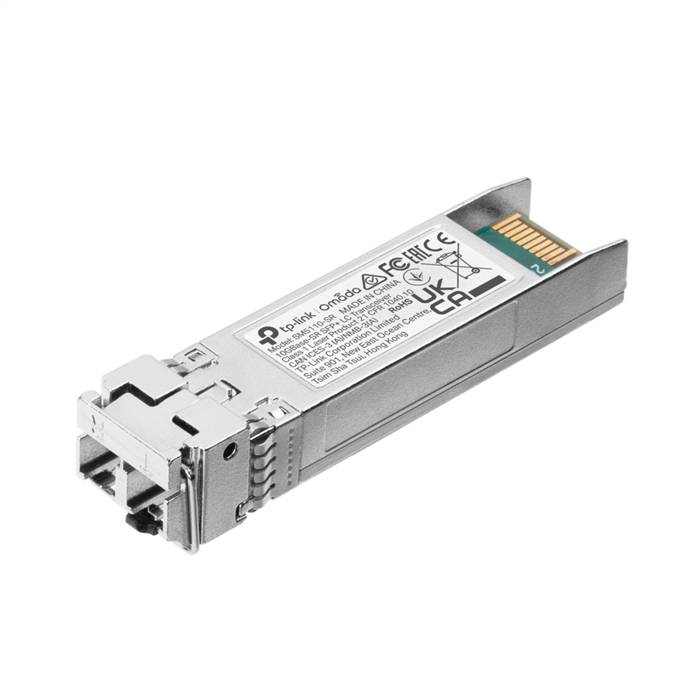

TP-Link SM5110-SR 10GBase-SR SFP+ LC Transceiver

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Features

• Multi-mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
• Compatible with switches with 10G SFP+ ports, like SG3428X, TL-SG3428XMP, and more.

Specifications

• DDM: Yes
• SFP-MSA: Yes
• Hot Swappable: Yes
• Dimensions (W*D*H): 2.4*0.6*0.5 in (61.3*14.5*12.2 mm)
• Standards and Protocols: IEEE 802.3ae, TCP/IP, SFF-8472
• Wave Length: 850nm
• Power Supply: 3.3V
• Fiber Type: 50/125um or 62.5/125um Multi-mode
• Max. Cable Length: 300m (OM3)
• Data Rate: 10Gbps
• Port Type: LC/UPC
• Safety & Emission: FCC, CE
• Environment:
• Operating Temperature: 0–70 ℃ (32–158 ℉)
• Storage Temperature: -40–80 ℃ (-40–176 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
