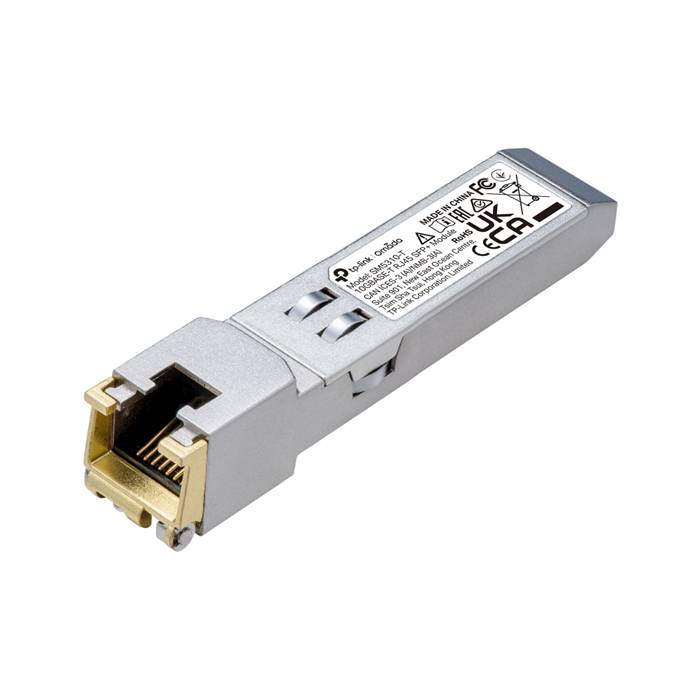

TP-Link SM5310-T 10G BASE-T RJ45 SFP+ Module

Features

• Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
• Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
• Support DDM (Temperature and Voltage)
• Hot-Pluggable SFP+ Footprint Features
• Support TX Disable function
• Fully Metallic Enclosure for Low EMI

Specifications

• Hot Swappable: Yes
• Dimensions (W*D*H): 2.7*0.5*0.5 in (67.4*13.75*13.8 mm)
• Standards and Protocols: IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
• Power Supply: 3.3V
• Max. Cable Length:
• 100BASE-TX: UTP cat .5 or above (max. 100m)
• 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
• 10GBASE-T: UTP cat.6a or above (max. 30m)
• Data Rate: 10.3 Gbps
• Port Type: 1× 10G RJ45 Port
• Safety & Emission: FCC, CE, RoHS
• Environment:
• Operating Temperature: 0–70 ℃ (32–158 ℉)
• Storage Temperature: -40–85 ℃ (-40–185 ℉)
