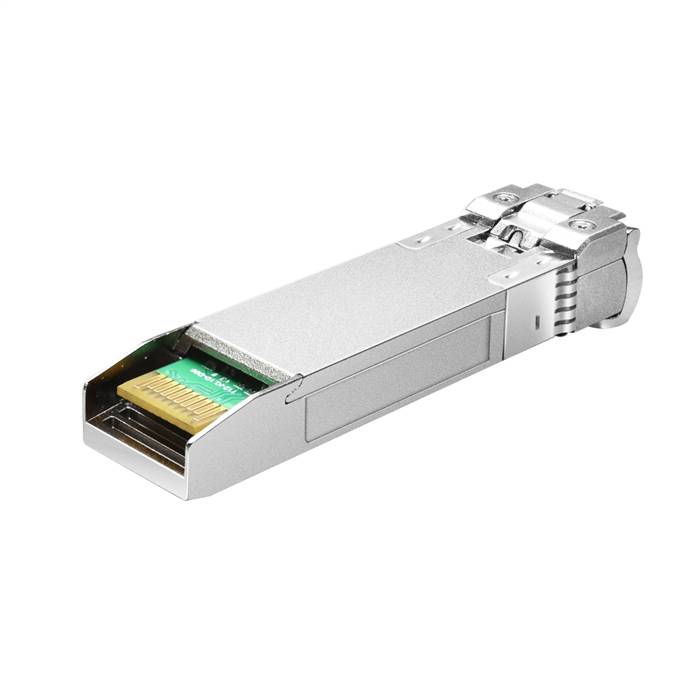

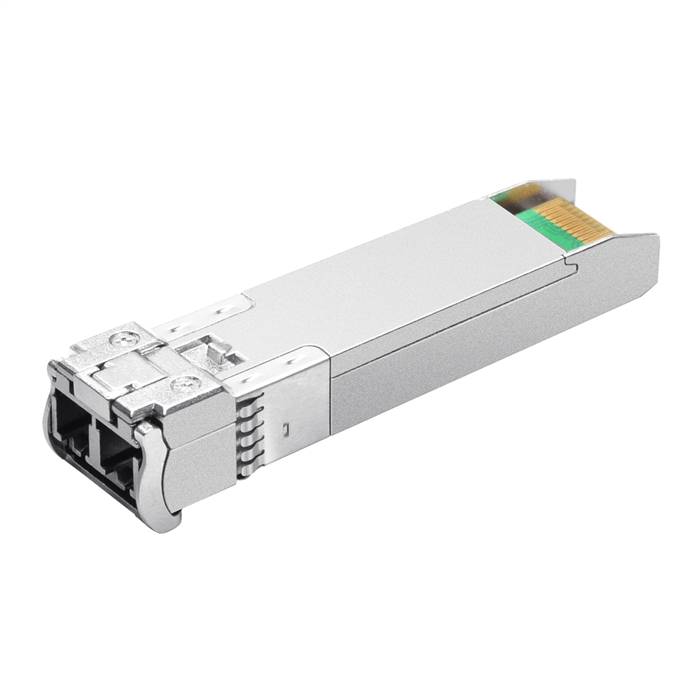

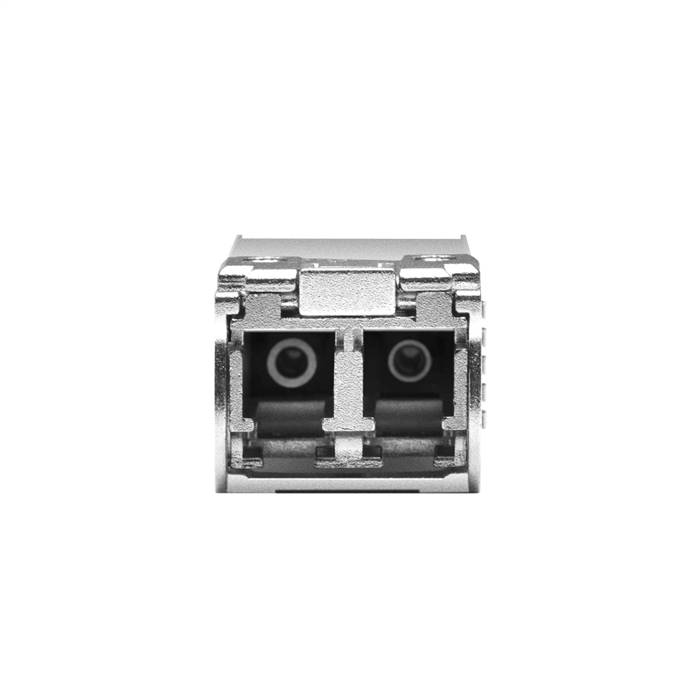

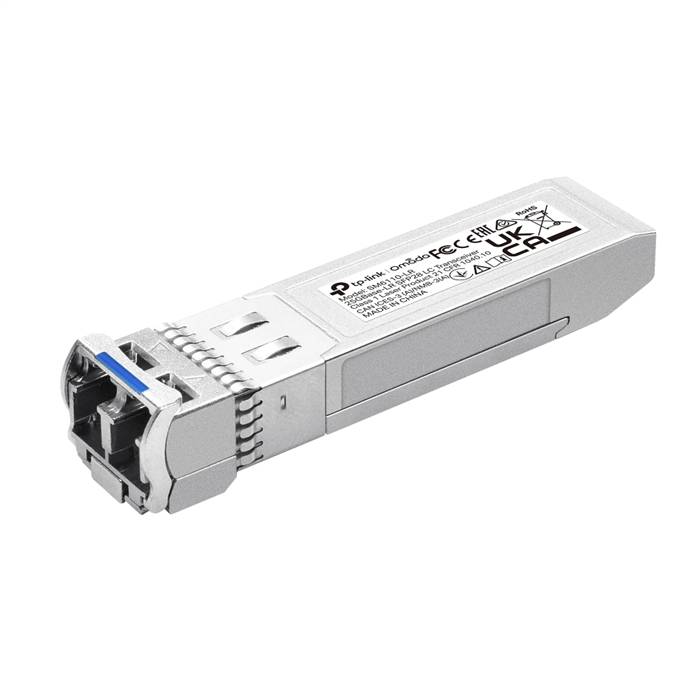

TP-Link SM6110-LR 10G/25Gbase-LR SFP+/SFP28 LC Transceiver

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Features

• Single-mode SFP+/SFP28 LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Low Power Consumption no more than 1.2 W
• Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
• Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

Specifications

• DDM: Yes
• SFP-MSA: Yes
• Hot Swappable: Yes
• Dimensions ( W x D x H ): 2.24*0.55*0.47 in (57*14*12 mm)
• Standards and Protocols:
• IEEE 802.3ae, 802.3cc
• SFF-8402, SFF-8431, SFF-8432, SFF-8472
• eCPRI, CPRI
• TCP/IP
• Wavelength: 1310 nm
• Power Supply: 3.3V
• Fiber Type: 9/125um Single-Mode
• Max. Cable Length: 10 km
• Support Data Rate: Dual Rate 25.78 Gbps and 10.31 Gbps
• Connector: Duplex LC/UPC
• Regulatory Compliance: CE, FCC, RoHS
• Environment:
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Storage Humidity: 5% to 90% RH, Non-Condensing
