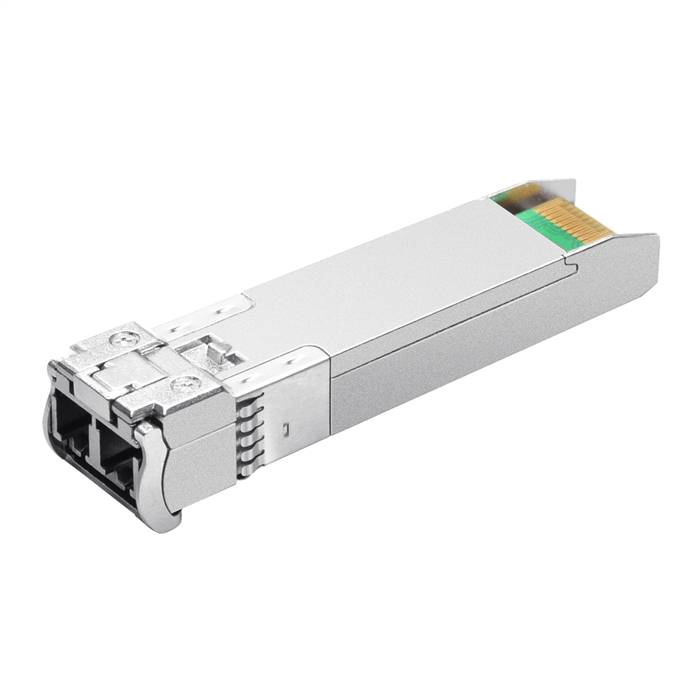

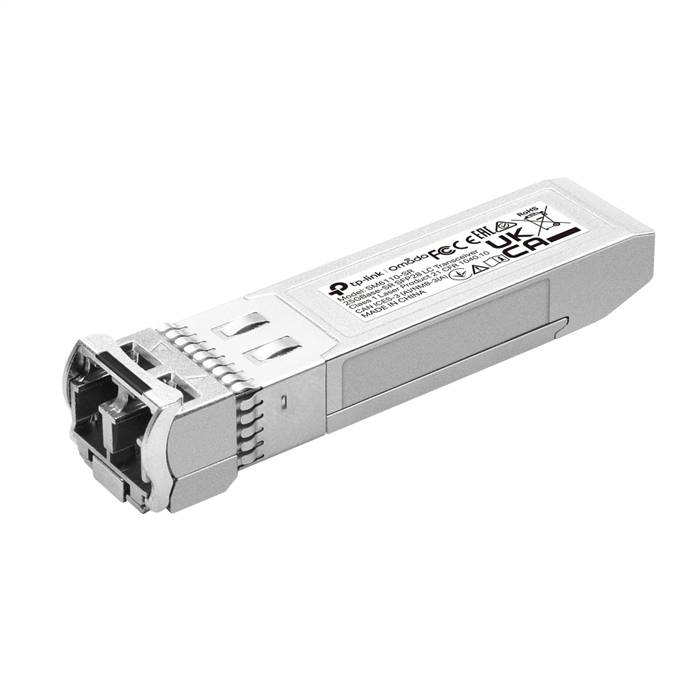

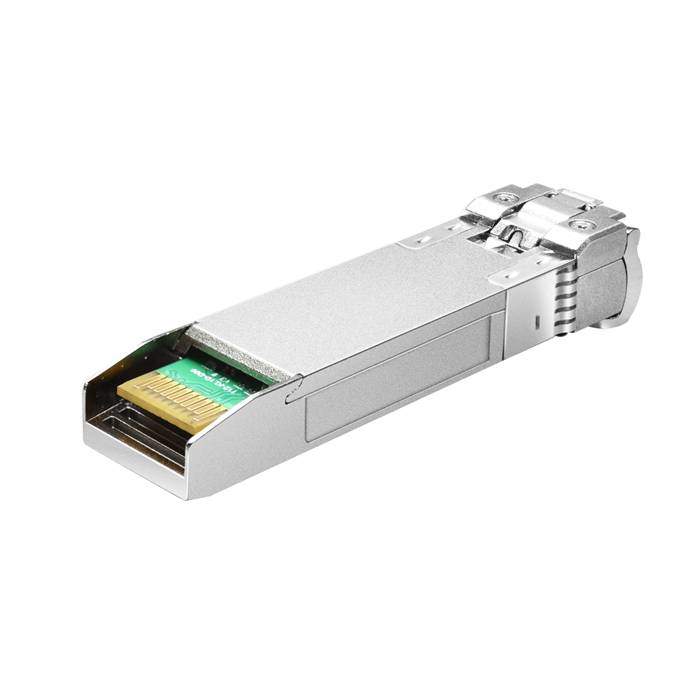

TP-Link SM6110-SR 10G/25Gbase-SR SFP+/SFP28 LC Transceiver

The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.

Features

• Multi-mode SFP+/SFP28 LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Low Power Consumption no more than 1 W
• Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
• Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

Specifications

• DDM: Yes
• SFP-MSA: Yes
• Hot Swappable: Yes
• Dimensions ( W x D x H ): 2.24*0.55*0.53 in (57*14*13.45 mm)
• Standards and Protocols
• IEEE 802.3ae, 802.3by
• SFF-8402, SFF-8431, SFF-8432, SFF-8472
• eCPRI, CPRI
• TCP/IP
• Wavelength: 850nm
• Power Supply: 3.3V
• Fiber Type: 50/125um or 62.5/125um Multi-mode
• Max. Cable Length: 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps
• Support Data Rate: Dual Rate 25.78 Gbps and 10.31 Gbps

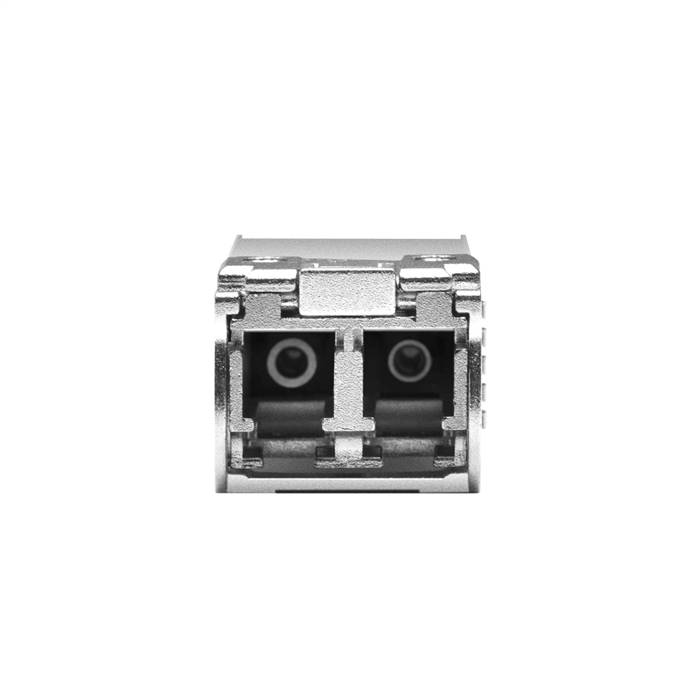

• Connector: Duplex LC/UPC
• Regulatory Compliance: CE, FCC, RoHS
• Environment
• Operating Temperature: 0°C to 70°C (32–158 ℉)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
