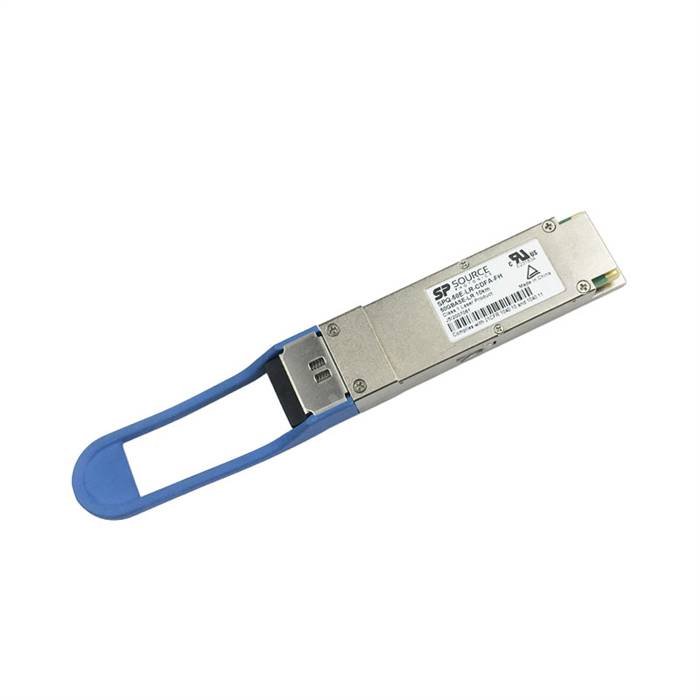

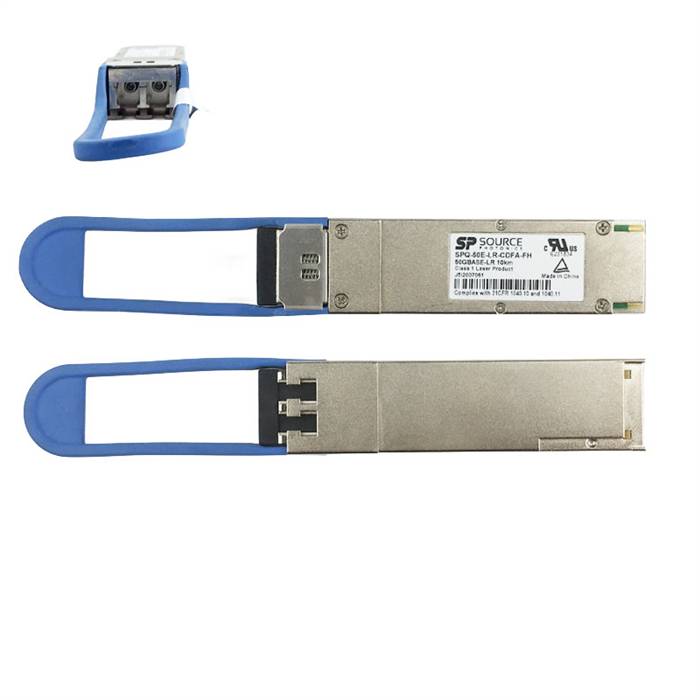

Source Photonics 50GBASE-LR 1310nm 10km QSFP28 Transceiver Module SPQ-50E-LR-CDFA-FH
Source Photonics SPQ-50E-LR-CDFA

Alternative Views:
Our Price: $3,200.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SPQ-50E-LR-CDFA
Qty:

Description


SPQ-50E-LR-CDFA - Genuine Source Photonics 50GBASE-LR 1310nm 10km QSFP28 Transceiver Module SPQ-50E-LR-CDFA-FH

Features

  • Compliant with QSFP28 Standard: SFF-8665 Revision 1.9 with timing in table 7 and 8 in this document , SFF-8636 Revision 2.9
  • Compliant with IEEE 802.3cd_D3p5 50GBASE-LR
  • Compliant with IEEE802.3 50GAUI-2 C2M electrical interface
  • Single 3.3V Supply Voltage
  • Maximum power consumption 3.5W
  • 0-70 ºC Case Operating Temperature
  • DML laser and PIN Receiver
  • QSFP28 MSA package with duplex LC connector
  • Two Wire Serial Interface with Digital Diagnostic Monitoring
  • Complies with EU Directive 2011/65/EU (RoHS compliant)
  • Class 1 Laser

Specifications

  • Manufacturer: Source Photonics
  • Part Number: SPQ-50E-LR-CDFA
  • Form Factor: 50G QSFP28
  • Data Rate: 53.125 Gb/s
  • Transmitter: DFB
  • Receiver: PIN
  • Wavelength: 1310nm
  • Reach: 10km
  • Operating Temperature: 0°C to 70°C
