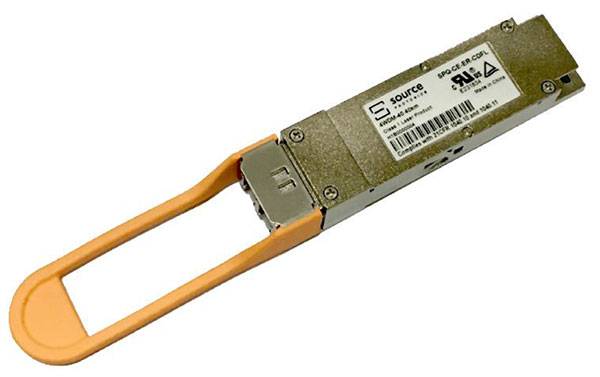

Mellanox SPQ-CE-ER-CDFL-M 40km 100G QSFP28 ER Optical Transceiver

Features

• Compliant with QSFP28 Standard: SFF-8661 Revision 1.9, SFF-8636 Revision 2.10a
• Compliant with 100G 4WDM-40 MSA technical specification rev 1.0
• High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3
• Single 3.3V Supply Voltage
• Maximum power consumption 4.5W
• 0-70 ºC Case Operating Temperature
• LAN WDM EML laser and APD Receiver
• QSFP28 MSA package with duplex LC connector
• Two Wire Serial Interface with Digital Diagnostic Monitoring
• Complies with EU Directive 2011/65/EU (RoHS compliant)
• Class 1 Laser

Specifications

• Part Number: SPQ-CE-ER-CDFL-M
• Form Factor: QSFP28
• Data Rate: 103.125 Gb/s
• Transmitter: EML
• Receiver: APD
• Wavelength (nm): LAN WDM
• Reach (km): 40 (with FEC)
• Temperature Range: Commercial (C)
