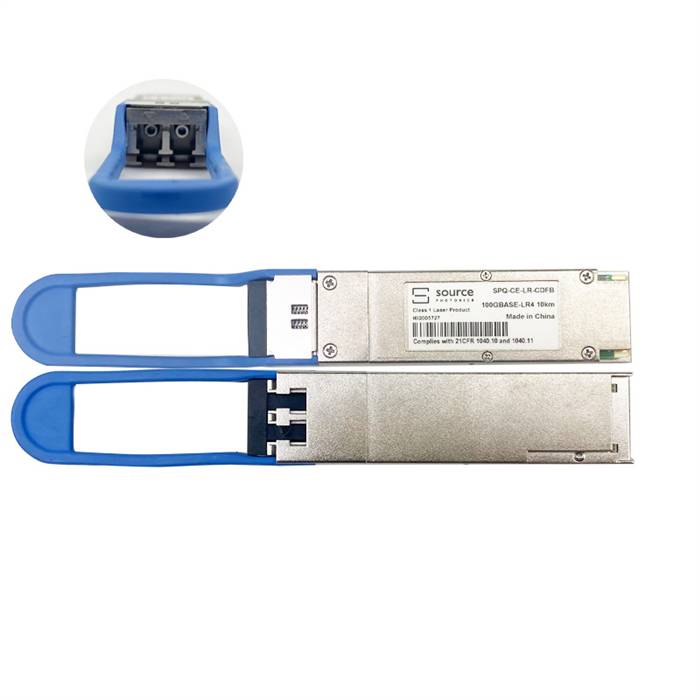

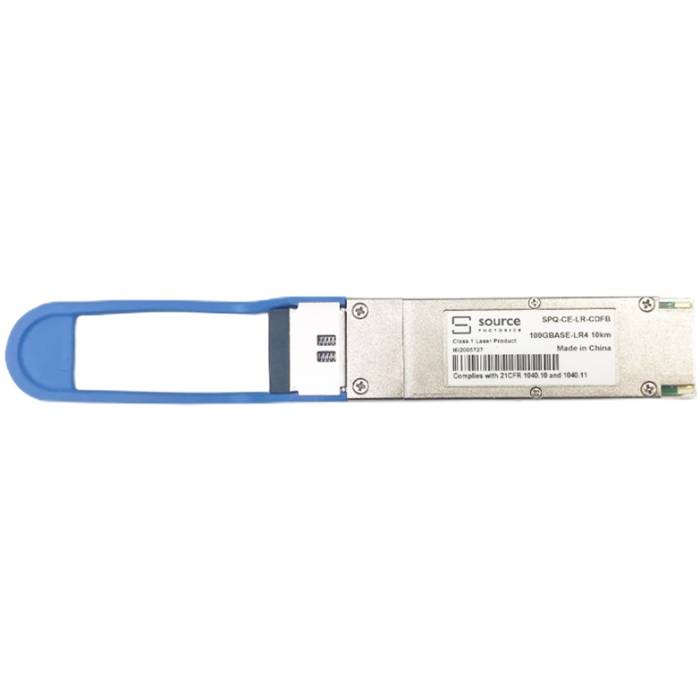

Source Photonics SPQ-CE-LR-CDFB 100GBASE-LR4 QSFP28 Transceiver Module
SPQ-CE-LR-CDFB - Source Photonics 100GBASE-LR4 QSFP28

Alternative Views:
Our Price: $1,100.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SPQ-CE-LR-CDFB
Qty:

Description


Source Photonics SPQ-CE-LR-CDFB 100GBASE-LR4 QSFP28 Transceiver Module

Features

  • Compliant with QSFP28 Standard: SFF-8665 Revision 1.9, SFF-8636 Revision 2.6
  • Compliant with IEEE 802.3ba 100GBASE-LR4
  • High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm
  • Single 3.3V Supply Voltage
  • Maximum power consumption 3.8W
  • 0-70 ºC Case Operating Temperature
  • LAN WDM EML laser and PIN Receiver Array
  • QSFP28 MSA package with duplex LC connector
  • Two Wire Serial Interface with Digital Diagnostic Monitoring
  • Complies with EU Directive 2011/65/EU (RoHS compliant)
  • Class 1 Laser
