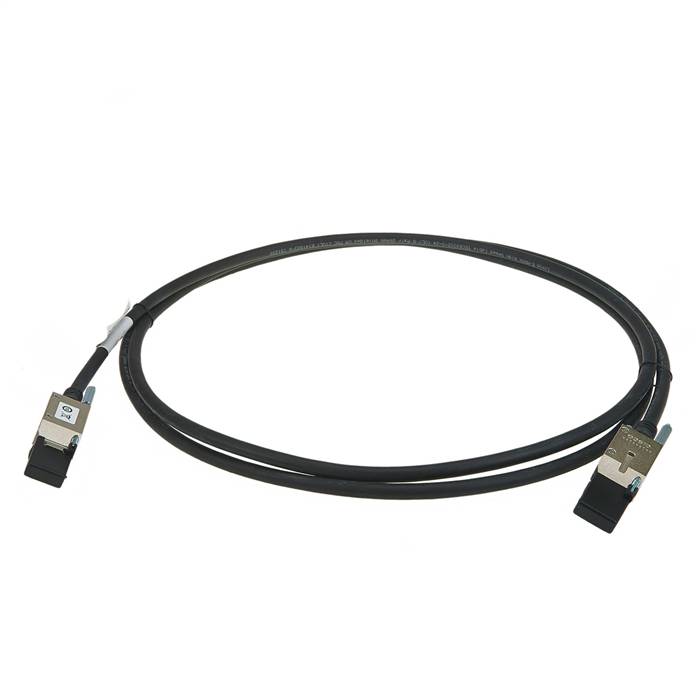

Cisco STACK-T2-3M Catalyst 3650 Series 3M Type 2 Stacking Cable

Specifications

• Manufacturer Part Number: STACK-T2-3M
• Manufacturer: Cisco
• Product Name: Cisco StackWise Type 2 - stacking cable - 9.8 ft
• Network Cable Type: Stacking cable
• Product Line: Stackwise
• Cable Length: 9.84 feet (3.0 m)
• Minimum Bend Radius: 3.58 in. (91 mm)
• Minimum Coiled Diameter: 7.17 in. (182 mm)
• Designed For: Cisco Catalyst 3650-24PD-E, 3650-24PD-L, 3650-24PD-S, 3650-24PS-E, 3650-24PS-L, 3650-24PS-S, 3650-24PWD-S, 3650-24PWS-S, 3650-24TD-E, 3650-24TD-L, 365

A StackWise adapter must be installed in the stacking port to enable stacking. The StackWise cable connects to the StackWise adapter in the stacking port. For switches ordered with stacking, the StackWise adapters are preinstalled.

If the switches are not ordered with stacking, the adapters must be ordered separately and installed. You can order a StackWise adapter as part of a StackWise stacking upgrade kit (part number C3650-STACK-KIT=) that contains two adapters and a 0.5-m StackWise cable.
