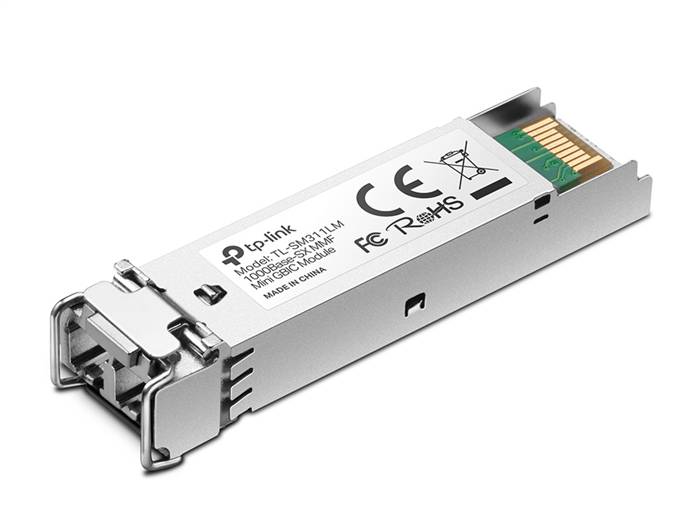

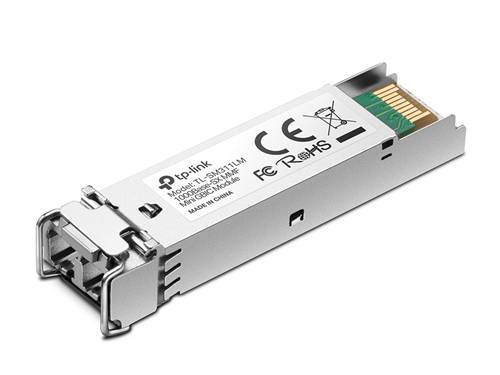

TP-Link 1000Base-SX Multi-mode MiniGBIC Module
TL-SM311LM - TP-Link

Our Price: $20.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: TL-SM311LM
Qty:

Description

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Features
  • Multi-mode MiniGBIC module
  • Compatible with all SFP ports on TP-Link product including JetStream switches, and media converter MC220L.
  • Work with MC200CM with a multi-mode fiber connection
  • Up to 550m range with 50/125 ?m multi-mode fiber
  • Up to 275m range with 62.5/125 ?m multi-mode fiber

Specifications
  • Standards and Protocols: IEEE 802.3z, CSMA/CD, TCP/IP
  • Wave Length: 850nm
  • Power Supply: 3.3V
  • Safety & Emission: FCC, CE
  • Cabel: Multi-mode Fiber
  • Fiber Type: 50/125?m or 62.5/125?m Multi-mode
  • Max. Cable Length: 550m
  • Data Rate: 1.25Gbps
  • Port Type: LC/UPC
  • Environment
    • Operating Temperature: 0?~70? (32?~158?)
    • Storage Temperature: -40?~80? (-40?~176?)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing

Package Contents
  • SFP Module TL-SM311LM
  • Installation Guide
