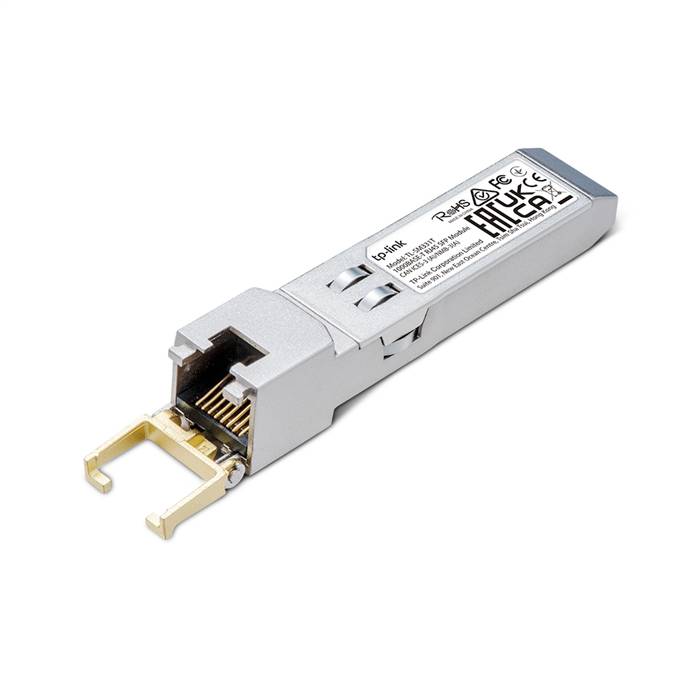

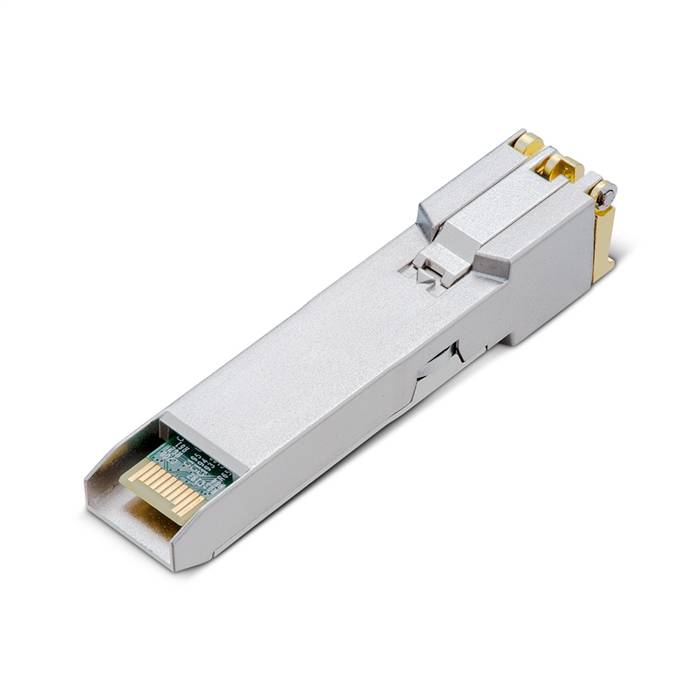

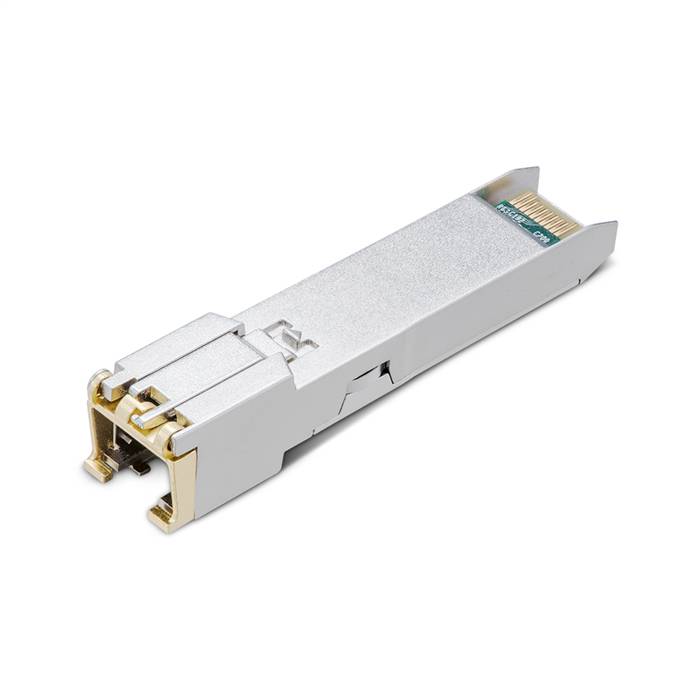

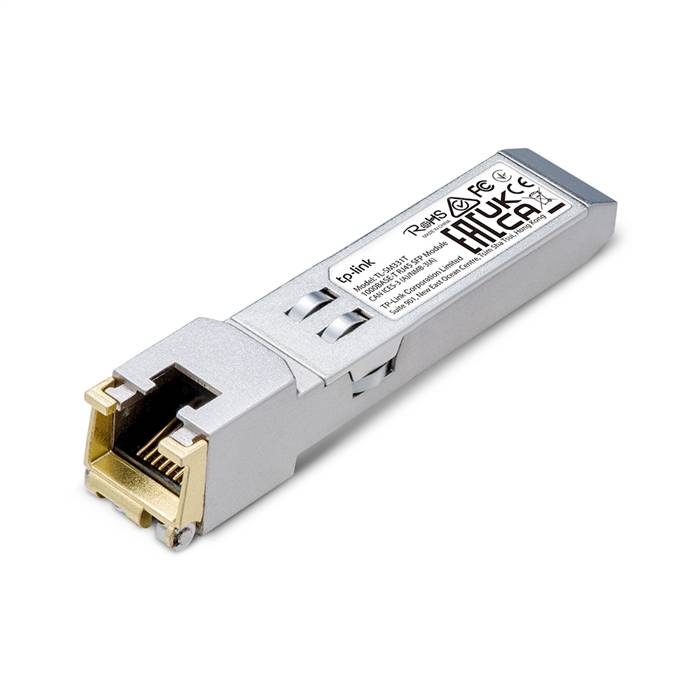

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module

• 【SFP to RJ45 1000Base-T Copper SFP】Transmit data seamlessly up to 100 meters between your SFP interface and the copper gigabit port.
• 【Wide Compatibility】Compatible with most fiber switches, media converters, routers or other fiber optic equipments with SFP ports, TL-SM331T provides additional copper cable connections for peace of mind.
• 【Easy for deployment】Plug and Play with no software installation or configuration/technician needed.
• 【Durable Metal Casing】Ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.
• 【Hot Pluggable】Plug in or remove your SFP module without needing to shutdown your network. Hot swap-ability ensures your network always stays up.

Features

• Support 1000BASE-T Operation in Host Systems
• Support TX Disable function
• For 100m Reach Over UTP Cat 5e or above Cable
• Hot-Pluggable SFP Footprint Features
• Commercial Product Operating Temperature Range: 0-70°C
• Compliant with IEEE Std 802.3-2002
• Fully Metallic Enclosure for Low EMI
• Low Power Dissipation (0.5 W Typical, 0.8 W Max)

Specifications

• Hot Swappable: Yes
• Dimensions (W*D*H): 2.7*0.5*0.5 in (67.4*13.75*13.8 mm)
• Standards and Protocols: IEEE 802.3-2002
• Power Supply: 3.3V
• Max. Cable Length: 100m (Cat 5e or above)
• Data Rate: 1.25 Gbps
• Port Type: 1× 1000 Mbps RJ45 Port
• Safety & Emission: FCC, CE
• Environment
• Operating Temperature: 0–70 ℃ (32–158 ℉)
• Storage Temperature: -40–85 ℃ (-40–185 ℉)
• Package Contents
• 1000BASE-T RJ45 SFP Module TL-SM331T
• Installation Guide
