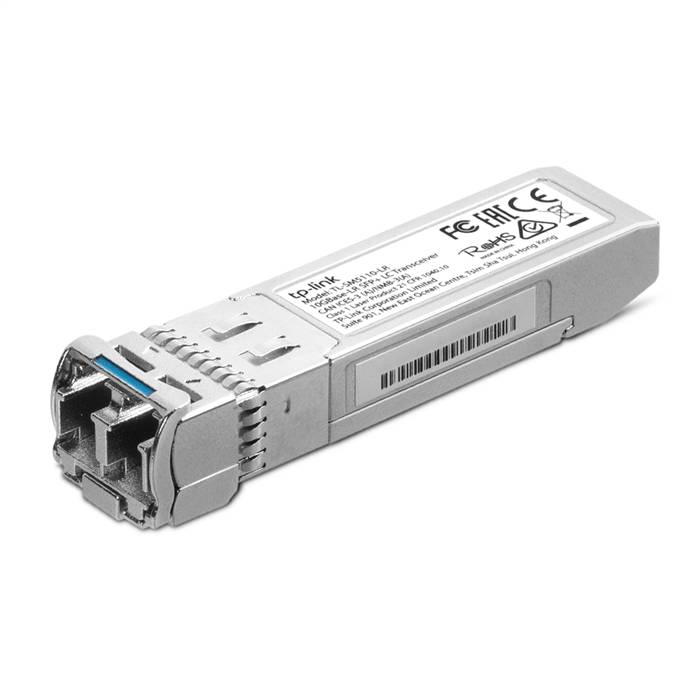

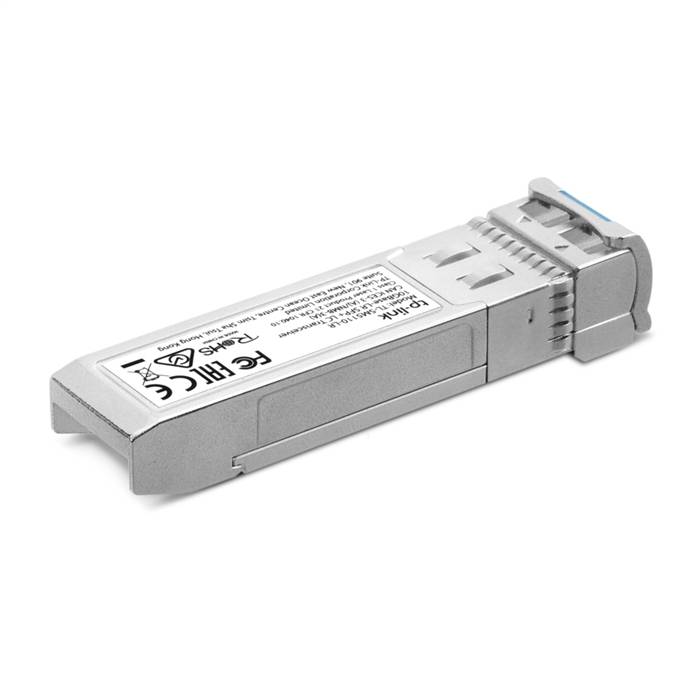

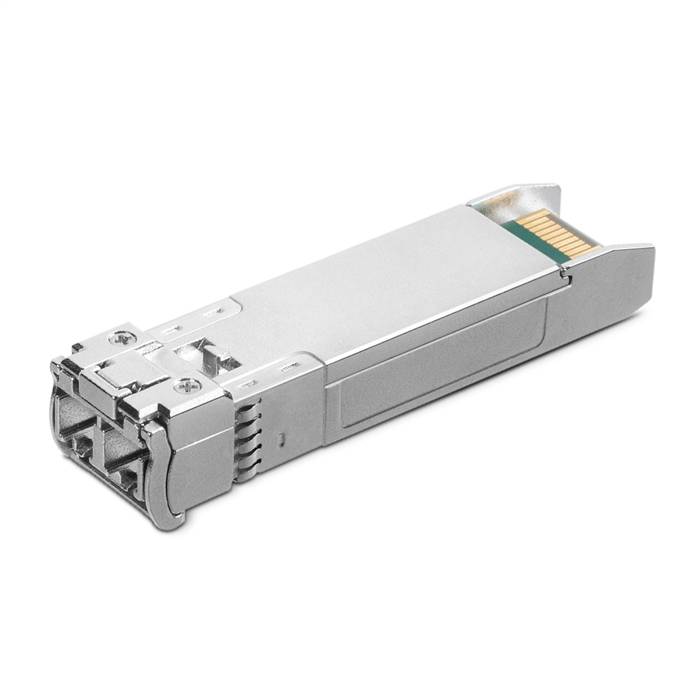

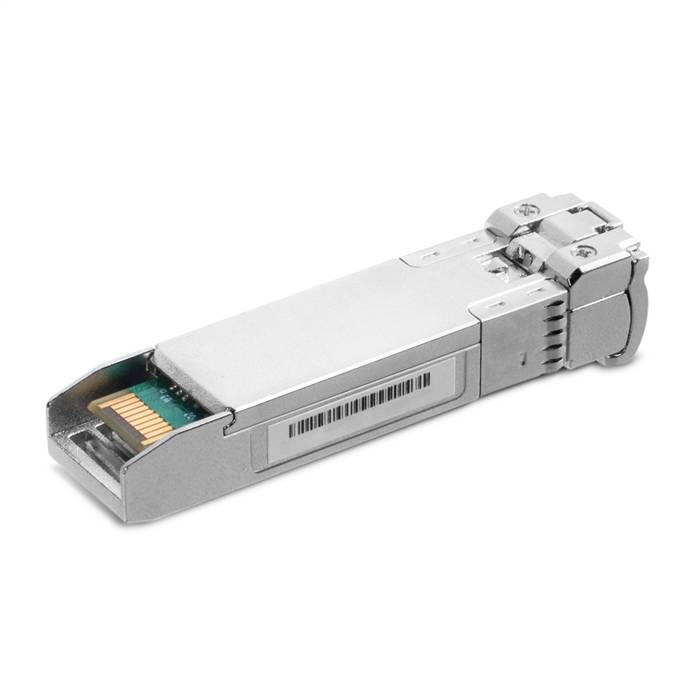

TP-Link 10GBase-LR SFP+ LC Transceiver
TL-SM5110-LR - TP-Link

Alternative Views:
Our Price: $50.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: TL-SM5110-LR
Qty:

Description

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Features
  • Single-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
  • Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Specifications
  • Standards and Protocols: IEEE 802.3ae, TCP/IP
  • Wave Length: 1310nm
  • Power Supply: 3.3V
  • Fiber Type: 9/125um Single-Mode
  • Max. Cable Length: 10km
  • Data Rate: 10Gbps
  • Port Type: LC Duplex
  • Safety & Emission: FCC, CE
  • DDM: Yes
  • SFP-MSA: Yes
  • Hot Swappable: Yes
  • Environment
    • Operating Temperature: 0~70 ? (32~158 ?)
    • Storage Temperature: -40~85 °C ( -40~185 °F)
    • Operating Humidity: 10~90% RH non-condensing
    • Storage Humidity: 5~90% RH non-condensing
