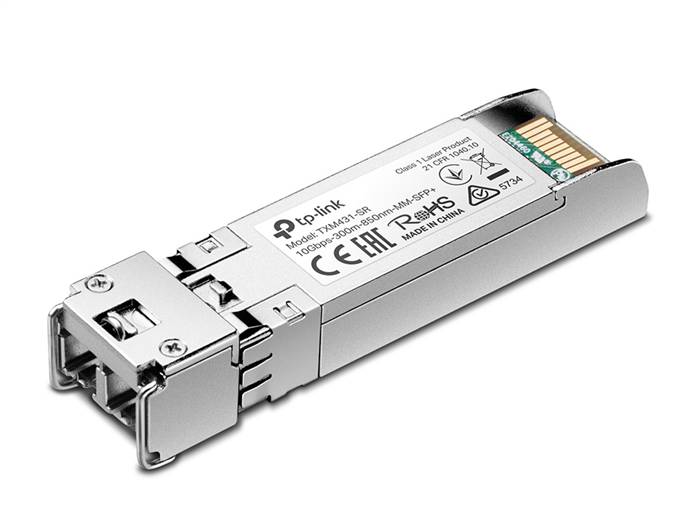

TP-Link 10GBase-SR SFP+ LC Transceiver
TXM431-SR - TP-Link

Our Price: $28.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: TXM431-SR
Qty:

Description

The TXM431-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Features
  • Multi-mode 10G SFP+ dual LC transceiver
  • Up to 300m (984 feet) transmission distance with multi-mode fibers
  • Compatible with all SFP+ ports on TP-Link JetStream switches

Specifications
  • Standards and Protocols: IEEE 802.3ae
  • Wave Length: 850nm
  • Power Supply: 3.3 V
  • Fiber Type: 50/125um or 62.5/125um Multi-mode
  • Max. Cable Length: 300m or 33m
  • Data Rate: 10Gbps
  • Port Type: Dual LC/UPC
  • Transmission power
    • -1.0dBm(Max)
    • -7.3dBm(Min)
  • Reception power
    • -1.0dBm(Max)
    • -9.9dBm(Min)
  • Sensitivity: -11.1dBm
  • Safety & Emission: FCC, CE
  • Environment
    • Operating Temperature: 0?~70? (32?~158?)
    • Storage Temperature: -40?~80? (-40?~176?)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing

Package Contents
  • 10G SFP+ Module TXM431-SR
  • Installation Guide
