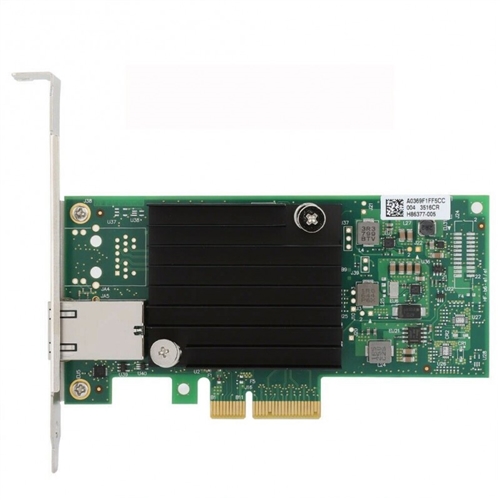

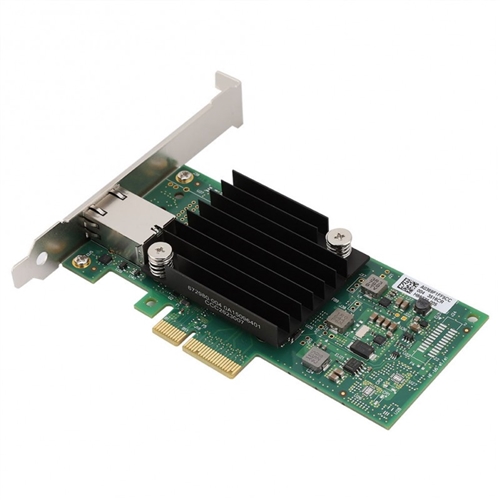

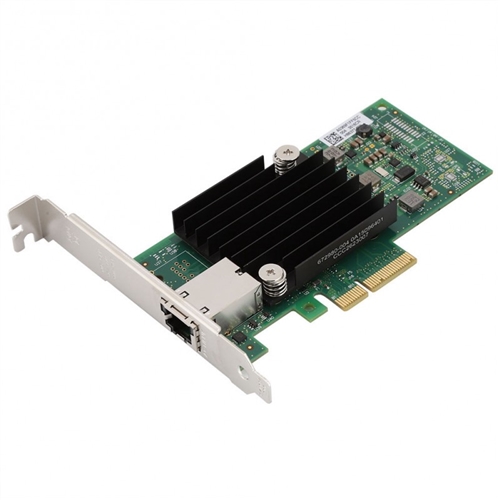

Intel X550 10GbE Single RJ45 Port Ethernet Converged Network Adapter

Alternative Views:

Our Price: $375.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days
Brand: Intel
Condition: New Factory Sealed

Product Code: X550-T1

Qty:

Description

The Intel® Ethernet Converged Network Adapter X550 (Intel® Ethernet CNA X550) is the newest innovation in Intel’s leadership to drive 10 GbE into the broad server market. This adapter hosts Intel’s latest Ethernet silicon, the Intel® Ethernet Controller X550, a low cost single-chip 10GBASE-T solution for today’s server platforms.

Essentials

Product P/N: X550-T1
Product Collection: 500 Series Network Adapters (up to 10GbE)
Status: Launched
Launch Date: Q1'16
Vertical Segment: Server
Cable Medium: Copper
Cabling Type: RJ45 Category 6 up to 55m; Category 6A up to 100m
Bracket Height: Low Profile and Full Height
Physical Dimensions: 167mm x 69mm
Product Order Code: X550T1, X550T1BLK

Networking Specifications

Port Configuration: Single
Data Rate Per Port: 10GbE/5GbE/2.5GbE/1GbE/100Mb
Intel® Virtualization Technology for Connectivity (VT-c): Yes
Speed & Slot Width: 8.0 GT/s, x4 Lane
Controller: Intel® Ethernet Controller X550

Package Specifications

System Interface Type: PCIe 3.0 (8.0 GT/s)
Bus Width: PCIe x4 lane, operable in x8 and x16 slots

Intel® Virtualization Technology for Connectivity

On-chip QoS and Traffic Management: Yes
Flexible Port Partitioning: Yes
Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes

Advanced Technologies

iWARP/RDMA: No
Intel® Data Direct I/O Technology: Yes
Intelligent Offloads: Yes
Storage Over Ethernet: iSCSI, FCoE, NFS
