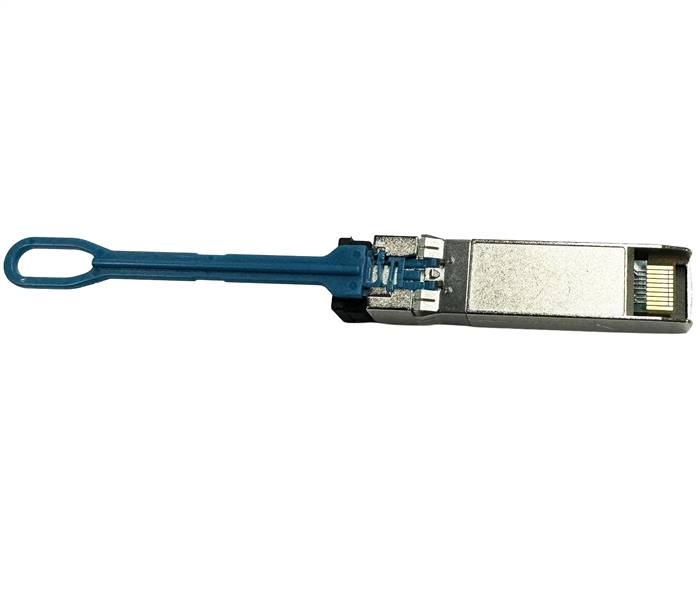

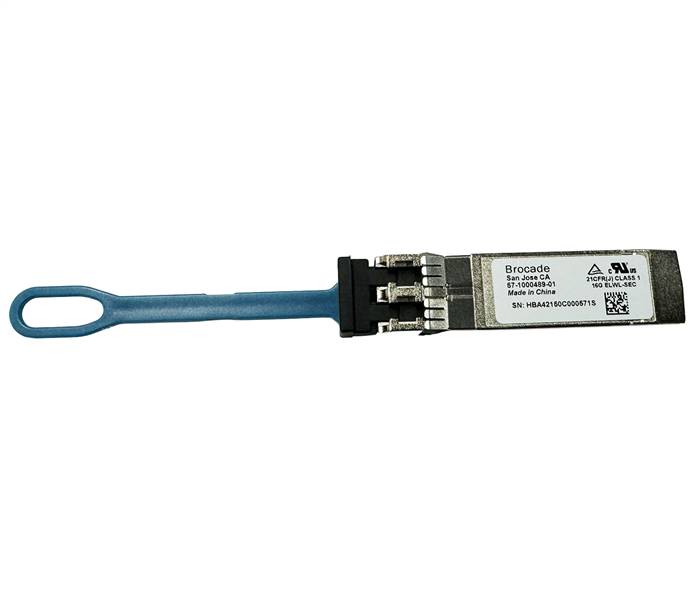

Brocade XBR-000458 16G FC SFP+ ELWL 25km Transceiver Module, 1-pack 57-1000489-01

The Brocade 16G Long Wavelength (ELWL) 25 km optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade director and switch products. Brocade ELWL SFPs extend native Fibre Channel connectivity over distance, enabling high-performance disaster recovery and business continuity solutions. Together with Brocade switching products, they provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

The Brocade 16G ELWL 25 km SFPs are hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support high-speed serial links over single-mode optical fiber. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-5) for LC duplex transceivers.

Specifications

• Brand: Brocade
• Part Number: XBR-000458, 57-1000489-01
• Fiber Type: Single mode fiber
• Connector: LC
• Transmit&Receive Wavelength (nm): 1295nm to 1325nm
• Distance: 25KM
• Optical return loss: -12 dB min
• Tx Power: −5.0 dBm to 5.0 dBm
• Rx Sensitivity: 40 μW, −12.0 dBm
• Storage Temperature: −40°C to 85°C
• Power Consumption: 1.1W
• Single Power Supply: 3.3 V
• Dimensions: (H x W x D)11.85 x 14.80 x 56.50 mm
