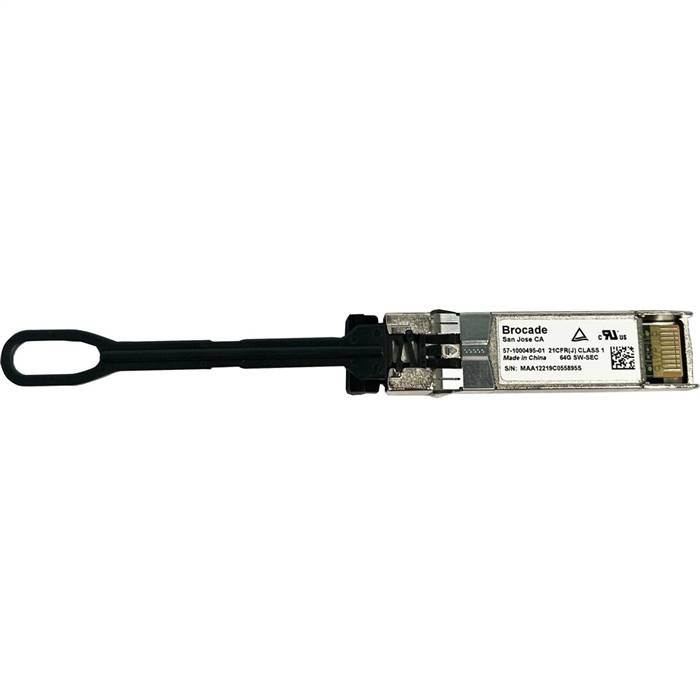

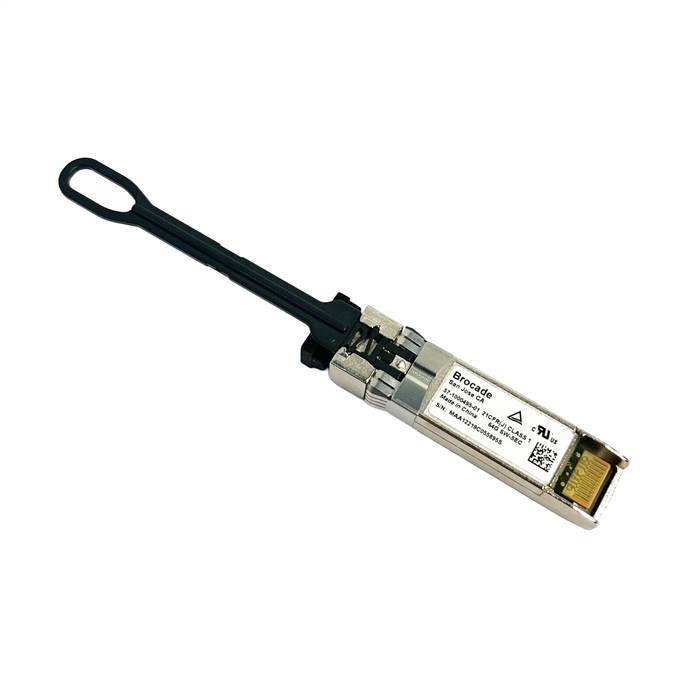

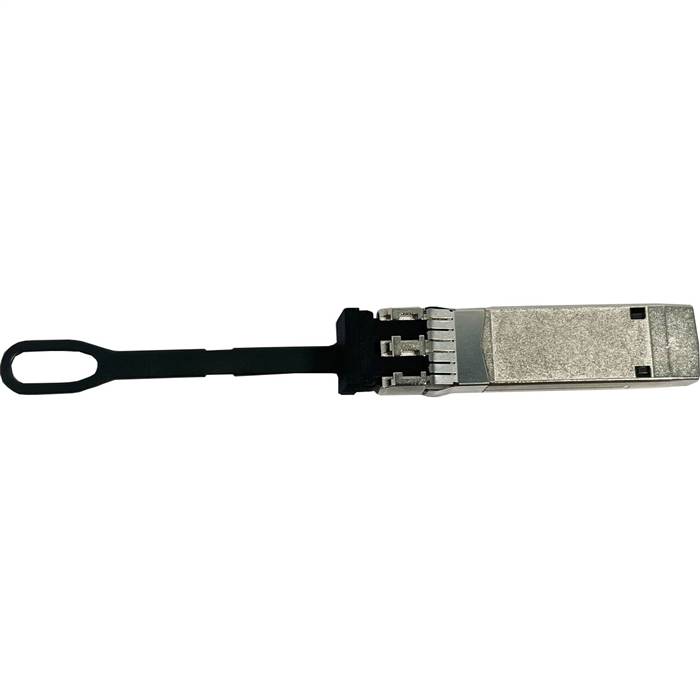

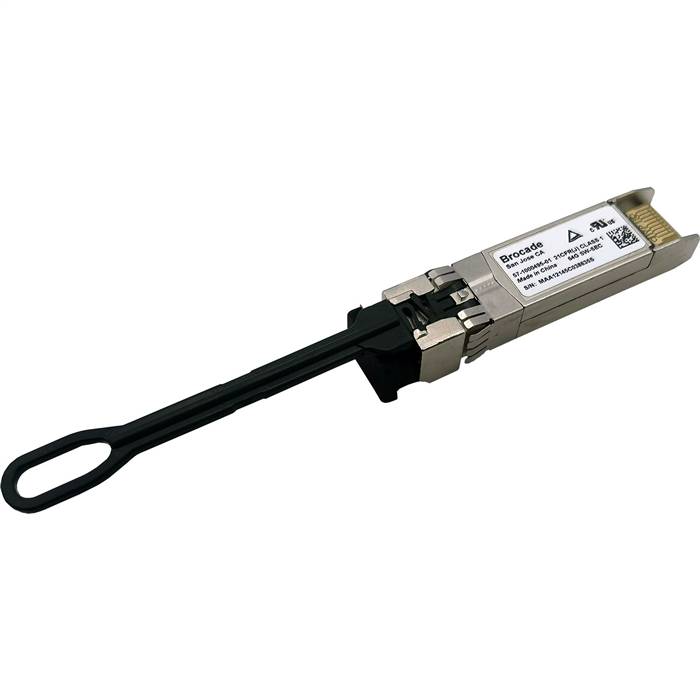

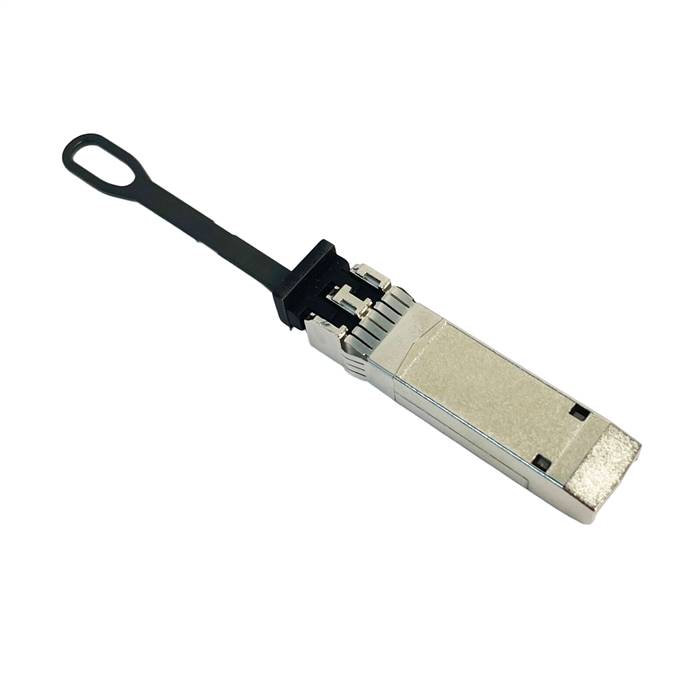

Brocade XBR-000462 64G FC SFP+ SWL Transceiver Module, 1-pack 57-1000495-01

The Brocade® 64G short wavelength (SWL) double-density optical transceiver (SFP-DD), part of the Brocade family of optical transceivers, is optimized for Brocade G720 and G730 device or ISL connectivity. Dual SN connectors from a single SFP-DD transceiver allow organizations to connect more servers, storage, or switches in a small footprint. Each transceiver supports two independent connections of a 64G Fibre Channel via a two-lane electrical interface. The Brocade 64G SWL SFP-DD transceiver is hot-swappable and supports high-speed serial links over multimode optical fiber at signalling rates up to 57.8Gb/s

Features

• Provides two optical connections in a single transceiver to support high-density SAN solutions
• Operates over duplex multimode fiber
• Uses industry-standard SN connectors.
• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe.
• RoHS 6 compliant.
• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:
• Transmitted optical power
• Received optical power
• Laser bias current
• Temperature
• Supply voltagea

Specifications

• Data Speed: FC 16G 32G 64G
• Center Wavelength: 850nm
• Fiber Type: Multimode
• Transmission : @64GFC 70M OM3, 100M OM4
• Connector: Dual LC
• Lasers: VSCEL + PIN
• Tx power: -7.5 to 4 dBm
• Rx sensitivity: -9.4 to 4 dBm max
• Extinction Ratio: 3 dB
• Power Consumption: 3.2 W
• Single Power Supply: 3.3 v
