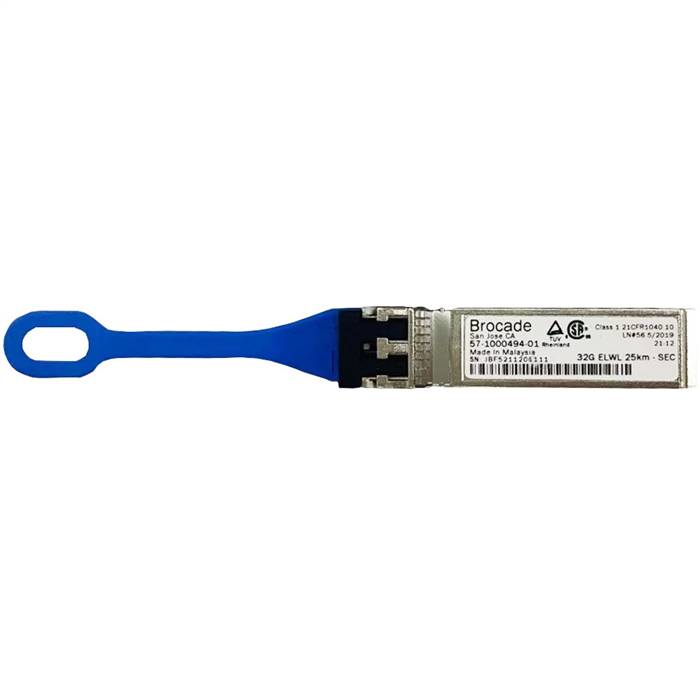

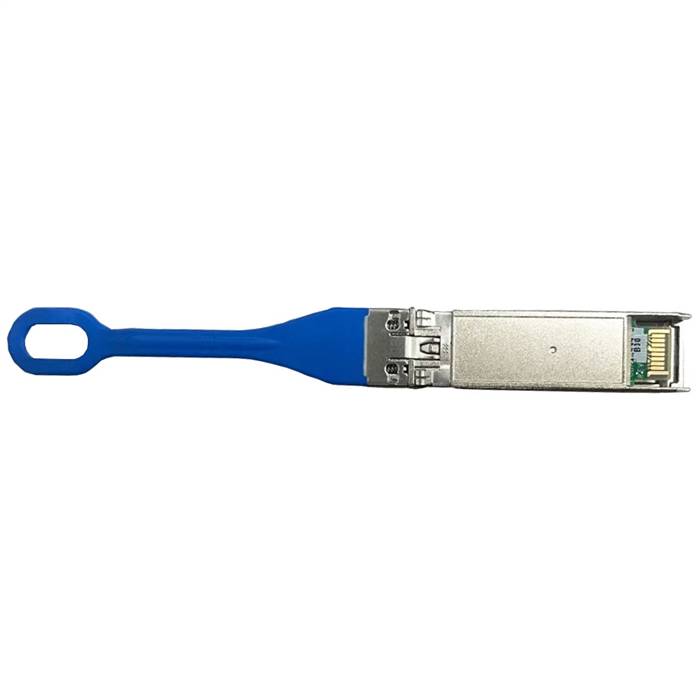

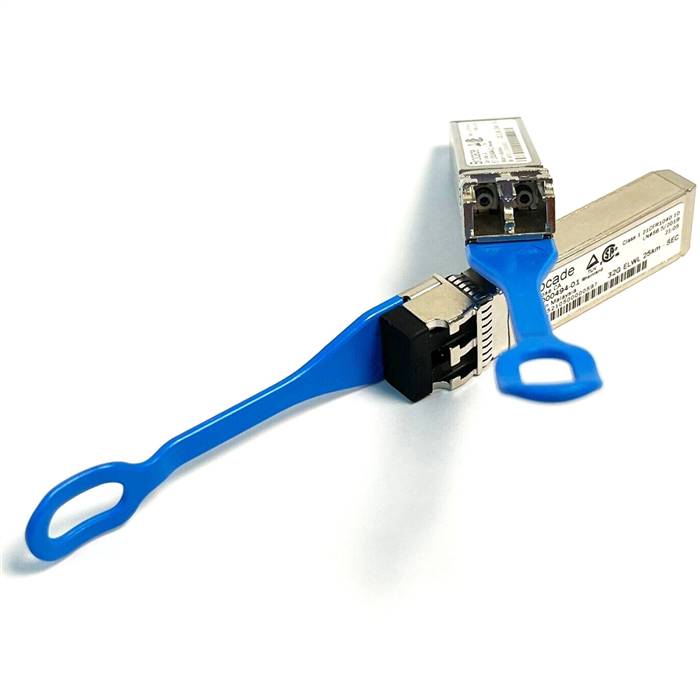

Brocade XBR-000478 32G FC SFP+ ELWL 25km Transceiver Module, 1-pack 57-1000494-01

The Brocade 32G Extended Long Wavelength (ELWL) 25 km SFP+, part of the Brocade family of small form-factor pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 32G switch and director products. Brocade ELWL SFPs extend native Fibre Channel connectivity over distance, enabling high-performance disaster recovery and business continuity solutions.

 This Brocade XBR-000478 is designed for 32G FC over a link of up to 25KM, supported by the latest Gen7 Brocade G720, G730 SAN switches & FC64-48 and FC32-X7-48 etc X7 blade modules.

Features

• Hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over single-mode optical fiber at signalling rates up to 28.05Gb/s
• 1310-nm DFB laser
• FC-PI-6 compliance for 28.05/14.025/8.5Gb/s operation
• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:
• Transmitted optical power
• Received optical power
• Laser bias current
• Temperature
• Supply voltage
• Industry-standard LC duplex connector
• 25-km link lengths on 9-μm singlemode fiber (with a 10-km minimum link length)
• IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe
• Compliance with the Restriction on Hazardous Substances (RoHS) directive
• Provides high system reliability through rigorous qualification and certification processes
• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.
• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs.
• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.
• Optimizes connectivity with Brocade platforms to enable maximum cable distance.
• Extends Fibre Channel connectivity over distance in enterprise environments, enabling high performance business continuity and disaster recovery solutions.

Specifications

• Data Speed: FC 4G 8G 16G 32G
• Center Wavelength: 1310nm
• Fiber Type: Singlemode
• Transmission: 25KM SMF
• Connector: Dual LC
• Lasers: DFB + PIN
• Tx power: +2.0 - +7.0 dBm
• Rx sensitivity:  2 dBm max
• Extinction Ratio: 2 dB
• Power Consumption: 1.5 W
• Single Power Supply: 3.3 v
