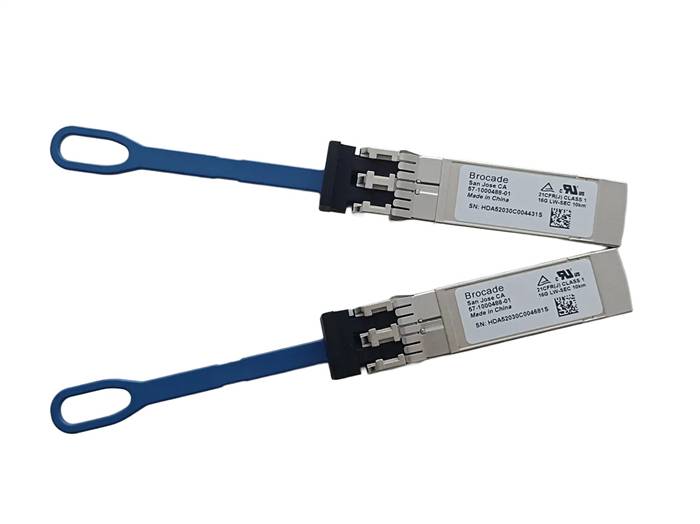

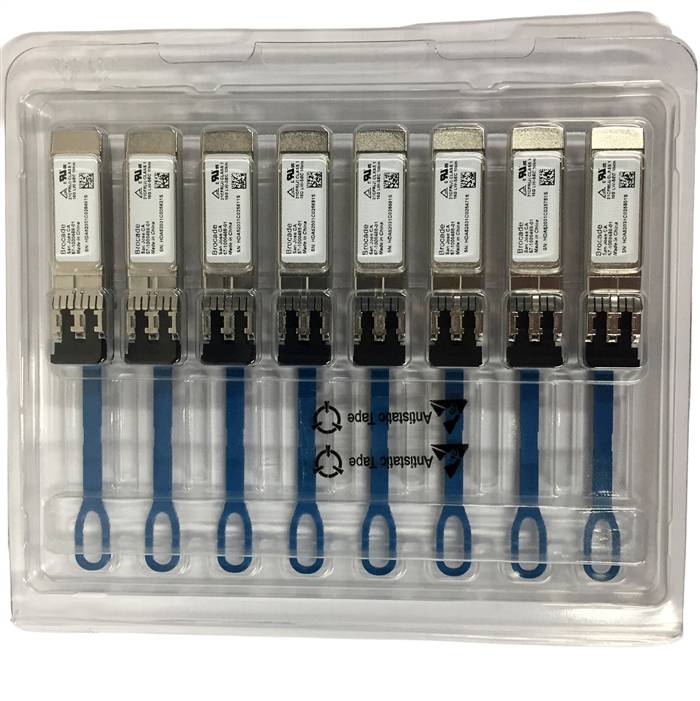

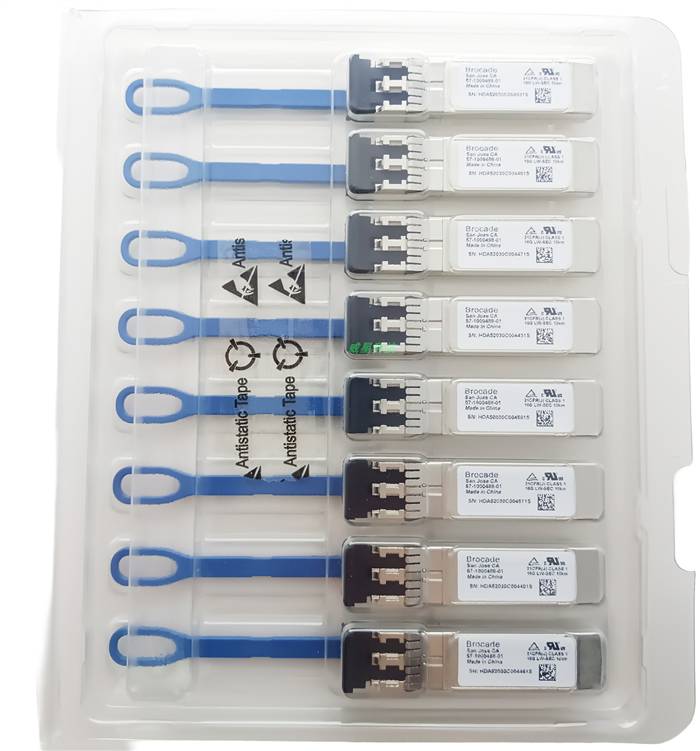

Brocade XBR-000499 16G FC LWL 10km SFP+ Optical Transceiver, 8-pack 57-1000488-01

The Brocade® 16Gb/s Long Wavelength (LWL) 10-km optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 16Gb/s director and switch products. The Brocade 16Gb/s LWL 10-km SFPs are hot-swappable, low-voltage (3.3V), digital diagnostic optical transceivers that support high-speed serial links over single-mode optical fiber at signaling rates up to 14.025Gb/s. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-5) for LC duplex transceivers.

The Brocade LWL SFPs are the standard choice for use in mainframe environments, connecting to IBM System z channels and FICON devices over distance for business continuity and disaster recovery. Together with Brocade switching products, they provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

Product highlights include the following:

•  1310-nm DFB laser
•  FC-PI-5 compliance for 14.025/8.5/4.25Gb/s operation
•  Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of:
•  Transmitted average optical power
•  Received average optical power
•  Laser bias current
•  Temperature
•  Supply voltage
•  Industry-standard LC duplex connector
•  10-km link lengths at 14.025Gb/s on 9-µm single-mode fiber
•  IEC 60825-1 Class 1/CDRH Class 1 laser, which is eye-safe
•  Compliance with the Restriction on Hazardous Substances (RoHS) directive

Performance

• Fibre Channel: 4.25, 8.5, and 14.025Gb/s line speed, full
• duplex; auto-sensing of 4, 8, and 14Gb/s port speeds

Media

• Hot-pluggable, industry-standard Small Form-Factor
• Pluggable (SFP+), LC connector; Long Wavelength (LWL)

Operating Parameters

• Transmit (Tx):
• Wavelength: 1295 nm to 1325 nm
• Average power: ?5.0 dBm to 2.0 dBm
• RIN: –130 dB/Hz max
• Optical return loss: 12 dB max
• OMA: 631 µW, –2.0 dBm
• Receive (Rx):
• Average power: 2.0 dBm max
• Optical return loss: –12 dB min
• Unstressed sensitivity: 63 µW, ?12.0 dBm
• SRS OMA: 95 µW, ?10.2 dBm
• 3-dB cutoff maximum: 18 GHz

Ordering Part Numbers

•  XBR-000198 (1-pack 57-0000089-01)
•  XBR-000199 (8-pack 57-0000089-01)
•  XBR-000498 (1-pack 57-1000488-01)
•  XBR-000499 (8-pack 57-1000488-01)
