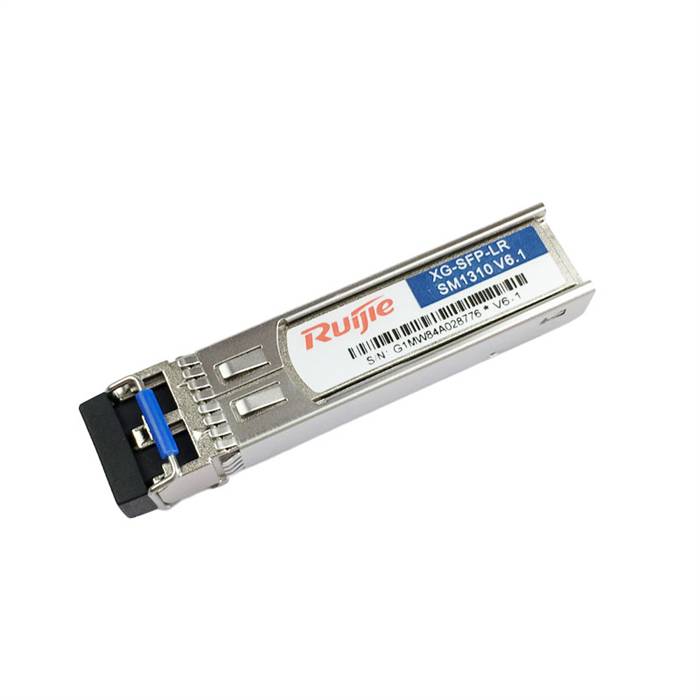

Genuine Ruijie 10G SFP+ LR 1310nm 10km LC SMF DDM Transceiver Module
Genuine Ruijie XG-SFP-LR-SM1310

Alternative Views:
Our Price: $80.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: XG-SFP-LR-SM1310
Qty:

Description

The Ruijie XG-SFP-LR-SM1310 SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Features
  • Genuine Ruijie XG-SFP-LR-SM1310
  • Hot-pluggable SFP+ footprint
  • Electrical interface compliant to SFF-8431
  • Compliant with SFF-8472
  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
  • 1310nm DFB transmitter, PIN photo-detector
  • Distance up to 10km on single mode fiber
  • LC Duplex connector
  • Built-in digital diagnostic functions
  • Single 3.3V power supply
  • Metal enclosure, for lower EMI
  • ROHS compliant and lead-free

Applications
  • 10GBASE-LR/10GBASE-LW Ethernet
  • 10G Fiber Channel
  • 10GbE Data Center Switches and Routers

Specifications
  • MFGR: Ruijie
  • Part Number: XG-SFP-LR-SM1310
  • Form Type: SFP+
  • Speed: 10Gb/s
  • Connector: Duplex LC
  • Media: SMF
  • Wavelength: 1310nm
  • Max Cable Distance: 10km
  • Transmitter Type: DFB
  • Receiver Type: PIN
  • TX Power: -8.2~0.5dBm
  • Receiver Sensitivity: <-14.4dBm
  • Digital Diagnostic Monitoring: Yes
  • Operating Temperature: 0 to 70°C (32 to 158°F)
  • Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
