Dell 04VX5M Q28DD-200G-2SR4 2x100GBASE-SR4 100M MMF Transceiver

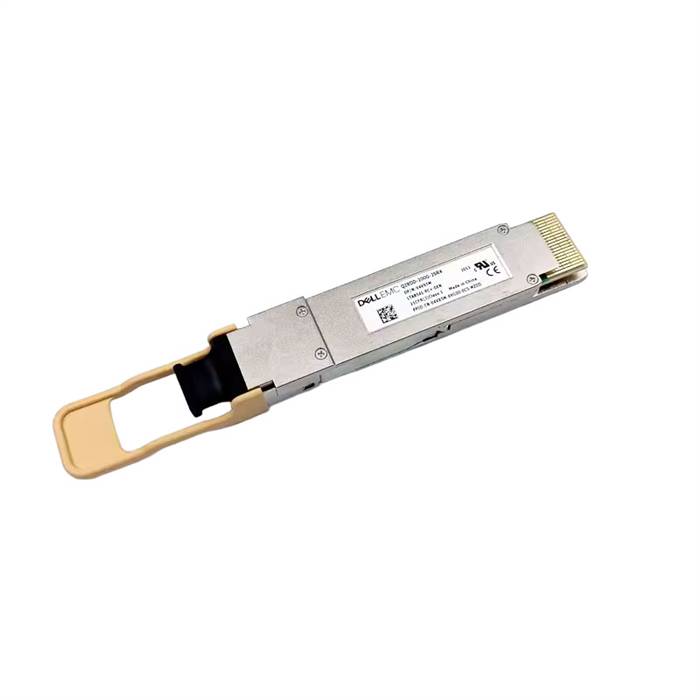

The Dell 04VX5M Q28DD-200G-2SR4 QSFP-DD transceiver supports up to 100m link lengths over multimode fiber (MMF) via MTP/MPO-24 connectors. This transceiver is compliant with IEEE 802.3bm and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2x100GBASE-SR4 Ethernet, Data Centers and Switch & Router Connections.

Specifications

• Brand: Dell
• Part Numbers: 04VX5M, Q28DD-200G-2SR4
• Form Factor: QSFP-DD
• Max Data Rate: 206.24Gbps(8x 25.78Gbps)
• Wavelength: 850nm
• Max Cable Distance: 100m
• Connector: MTP/MPO-24
• Media: MMF
• Transmitter Type: VCSEL
• Receiver Type: PIN
• TX Power: -8.4~2.4dBm
• Receiver Sensitivity: <-10.3dBm
• Power Budget: 1.9dB
• Receiver Overload: 3.4dBm
• Power Consumption: ≤4.5W
• Extinction Ratio: >2dB
• DDM/DOM: Supported
• Commercial Temperature Range: 0 to 70°C (32 to 158°F)
• CDR (Clock and Data Recovery): TX & RX Built-in CDR
• Inbuilt FEC: No
• Protocols: IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0
