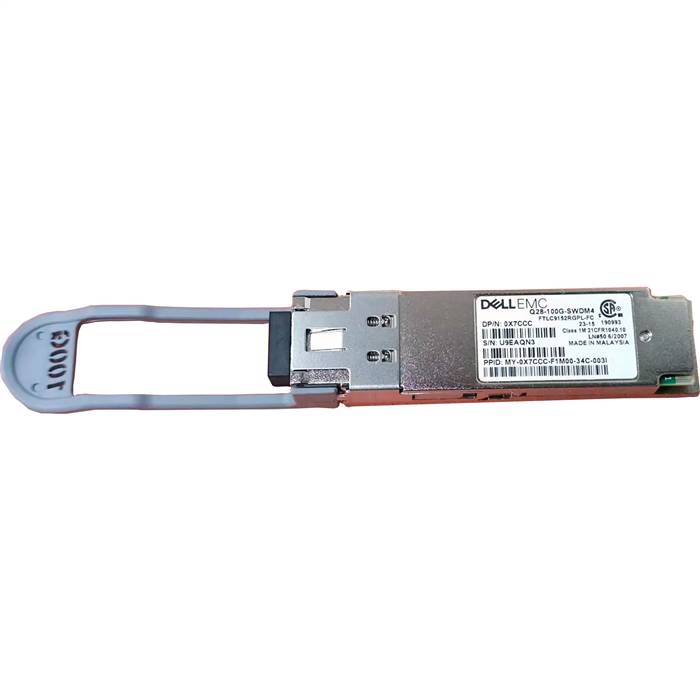

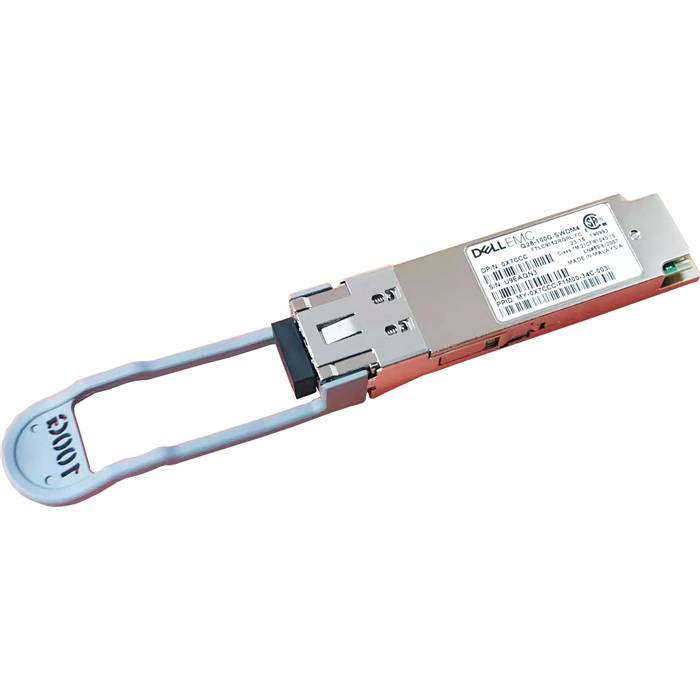

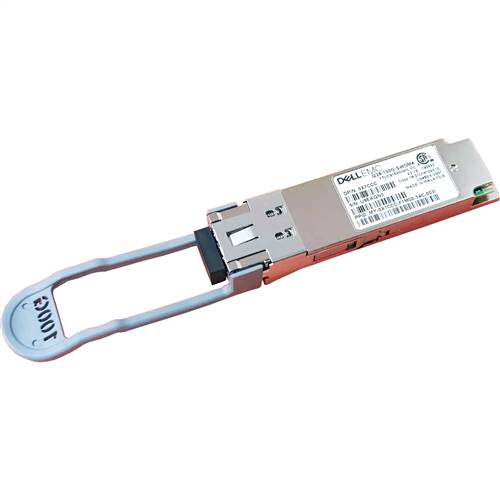

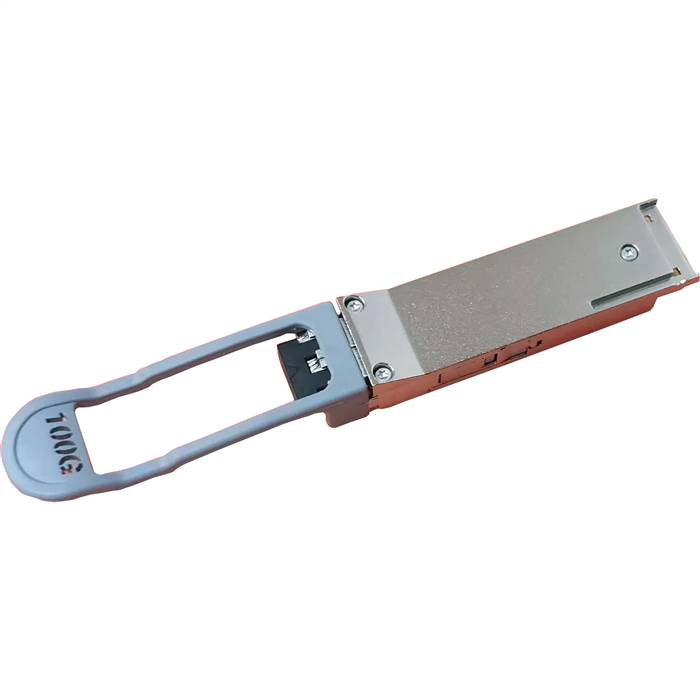

Dell 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC 100Gb/s Multi-Mode Fibre 850nm 100m Duplex LC Connector QSFP28 Transceiver Module

This Dell 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2171. The transceiver is RoHS-6 compliant per Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.

Features

• Hot-pluggable QSFP28 form factor
• Supports 103.1Gb/s aggregate bit rate
• Power dissipation < 3.5W
• RoHS-6 compliant
• Commercial case temperature range of 0°C to 70°C
• Single 3.3V power supply
• Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)
• 4x25Gb/s 850mm VCSEL-based transmitter
• 4x25G CAUI-4 electrical interface
• Duplex LC receptacles
• I2C management interface

Applications

• 100G Ethernet over Duplex MMF

Specifications

• Brand: Dell
• Part Numbers: 0X7CCC, Q28-100G-SWDM4, FTLC9152RGPL-FC
• Data Rate: 103.1Gbps
• Wavelength: 850nm, 880nm, 910nm, 940nm
• Applications: Ethernet
• Voltage - Supply: 3.135V ~ 3.465V
• Connector Type: LC Duplex
• Mounting Type: Pluggable, QSFP28
